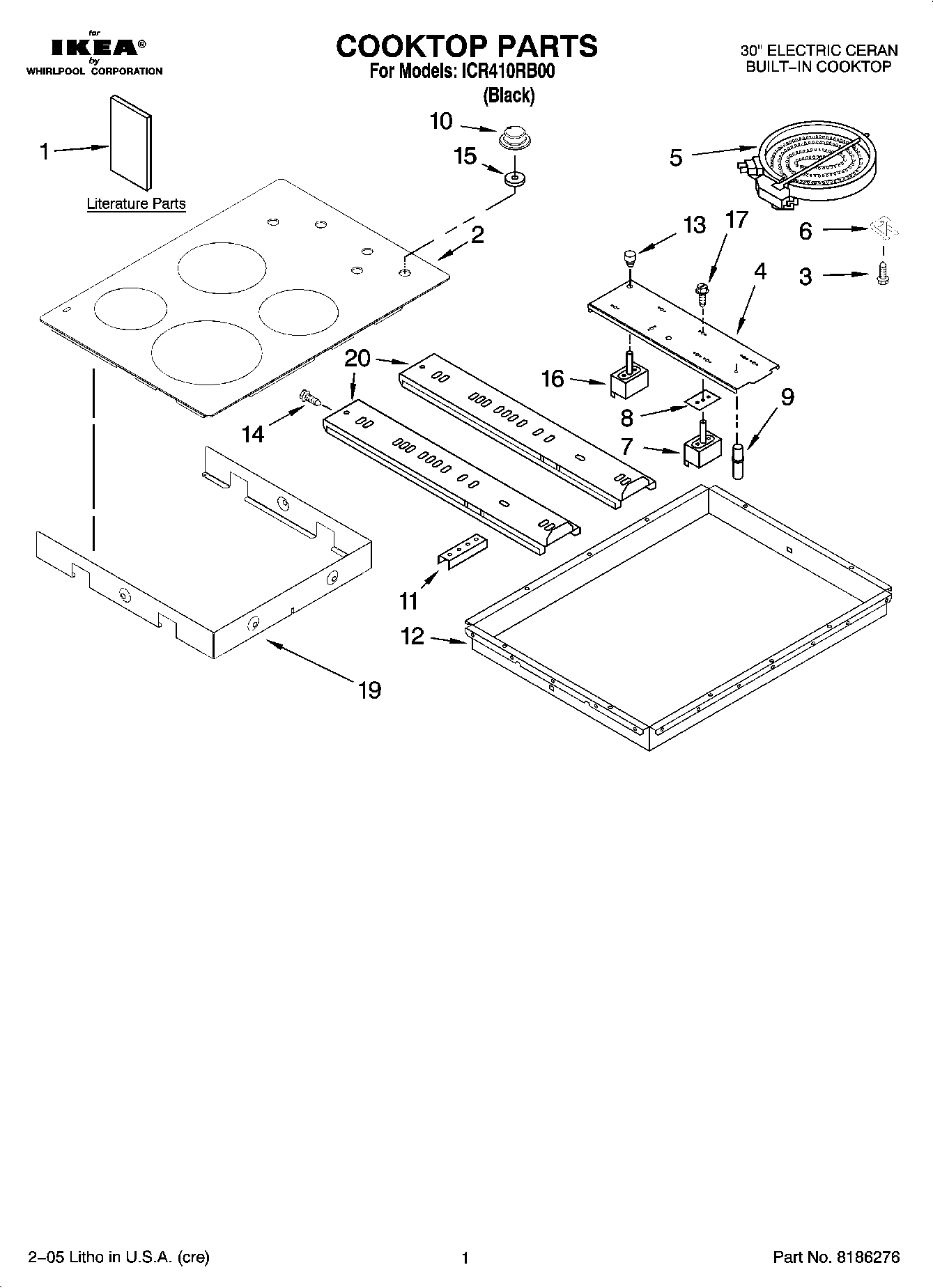

ICR410RB00 01 – COOKTOP PARTS

Products

Position	Product
	Wire (14 Ga. 150 c Brown)
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	1
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 200 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	WPL 4456028
	WPL 9759607
	WPL ARI75309A9
	WP3400015 Whirlpool Screw
	WPL ARI75308A3
	WPL ARI75307A2
	WPL 9759609
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	18 Ga. 80~c Rating (Red)
1	Installation Instructions
1	Energuide Label
1	Wiring Diagram
1	Use & Care Guide
1	Safe Cooking Tips
2	W10647131 Whirlpool Cooktop Assembly
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch Mounting
4	Insulation, Bracket
5	W10823696 Whirlpool Radiant Surface Element
5	W10823699 Whirlpool Right Front Surface Element
5	W10823711 Whirlpool Surface Element Left Front and Right Rear
5	W10823698 Whirlpool Surface Element Right Rear
6	Spring, Locator
7	WP3191050 Whirlpool Infinite Switch
7	WP4454541 Whirlpool Infinite Switch
7	WP3191049 Infinite Switch Left Rear Right Front
8	W10491984 Whirlpool Switch Seal
9	Light, Indicator
10	9758786 Whirlpool Oven Knob
11	8186533 Whirlpool Hardware
11	WP3400093 Whirlpool Screw
12	Box, Burner
13	Bumper, Silicone
14	WP3196557 Whirlpool Screw
15	8285469 Whirlpool Oven Seal Switch
16	WP9762441 Whirlpool Selector Switch
17	WP486579 Whirlpool Air Conditioner Screw
19	W10491985 Whirlpool Screw
19	Shield, Heat
20	3183956 Whirlpool Oven Seal Switch
20	Hardware Asm.
20	Rail, Element (2)
20	4455364 Whirlpool Oven Support Bracket
20	WPL 3192737
20	FOLLOWING PARTS NOT ILLUSTRATED
