ICR410RB01 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

ICR410RB01 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

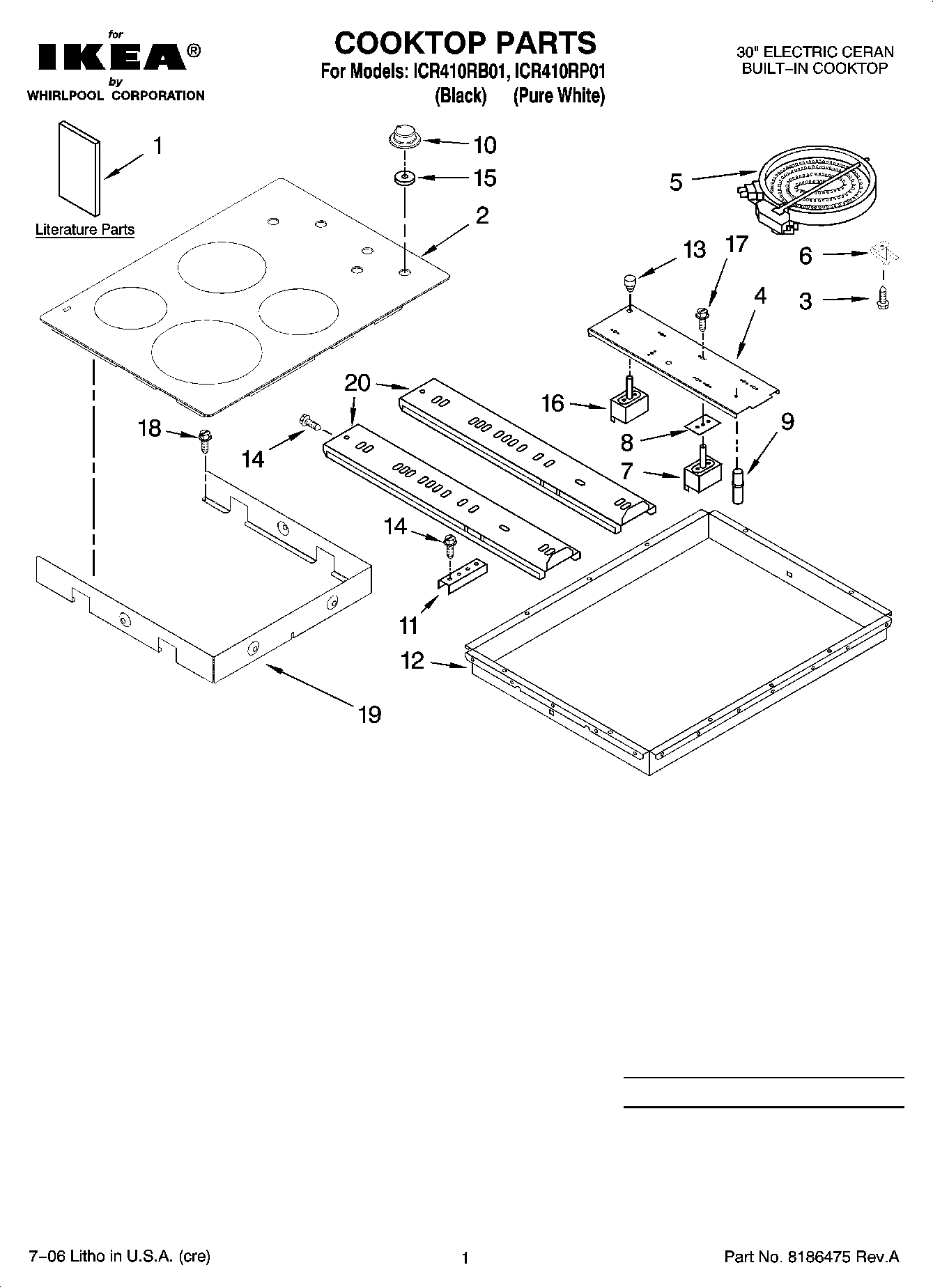

ICR410RB01 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
Wire (14 Ga. 150 c Brown)
Harness, Cooktop
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
WPL 9762223
WPL 4456028
WP308605 Whirlpool Refrigerator Clamp
242831 Whirlpool Oven Wire
W10491984 Whirlpool Switch Seal
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPL ARI75313A4
WP3400015 Whirlpool Screw
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
WPL ARI75311A4
WPL ARI75312A3
1Installation Instructions
1Owners Manual
1Safe Cooking Tips (French)
1Safe Cooking Tips
1Wiring Diagram
2W10647131 Whirlpool Cooktop Assembly
2W10647135 Whirlpool Cooktop
3WP486754 Whirlpool Compactor Screw
4Insulation, Bracket
4Bracket, Switch Mounting
5W10823698 Whirlpool Surface Element Right Rear
5W10823699 Whirlpool Right Front Surface Element
5W10823711 Whirlpool Surface Element Left Front and Right Rear
5W10823696 Whirlpool Radiant Surface Element
69759094 Whirlpool Spring
7WP3191050 Whirlpool Infinite Switch
7WP4454541 Whirlpool Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
83183956 Whirlpool Oven Seal Switch
9Light, Indicator
109758785 Whirlpool Knob
109758786 Whirlpool Oven Knob
118186533 Whirlpool Hardware
12Box, Burner
13Bumper, Silicone
14WP3196557 Whirlpool Screw
158285469 Whirlpool Oven Seal Switch
16WP9762441 Whirlpool Selector Switch
17WP486579 Whirlpool Air Conditioner Screw
18W10491985 Whirlpool Screw
19Shield, Heat
20Following Parts Not Illustrated
20WPL 3192737
20Rail, Element (2) (Side (3))
204455364 Whirlpool Oven Support Bracket
20Hardware Asm.
