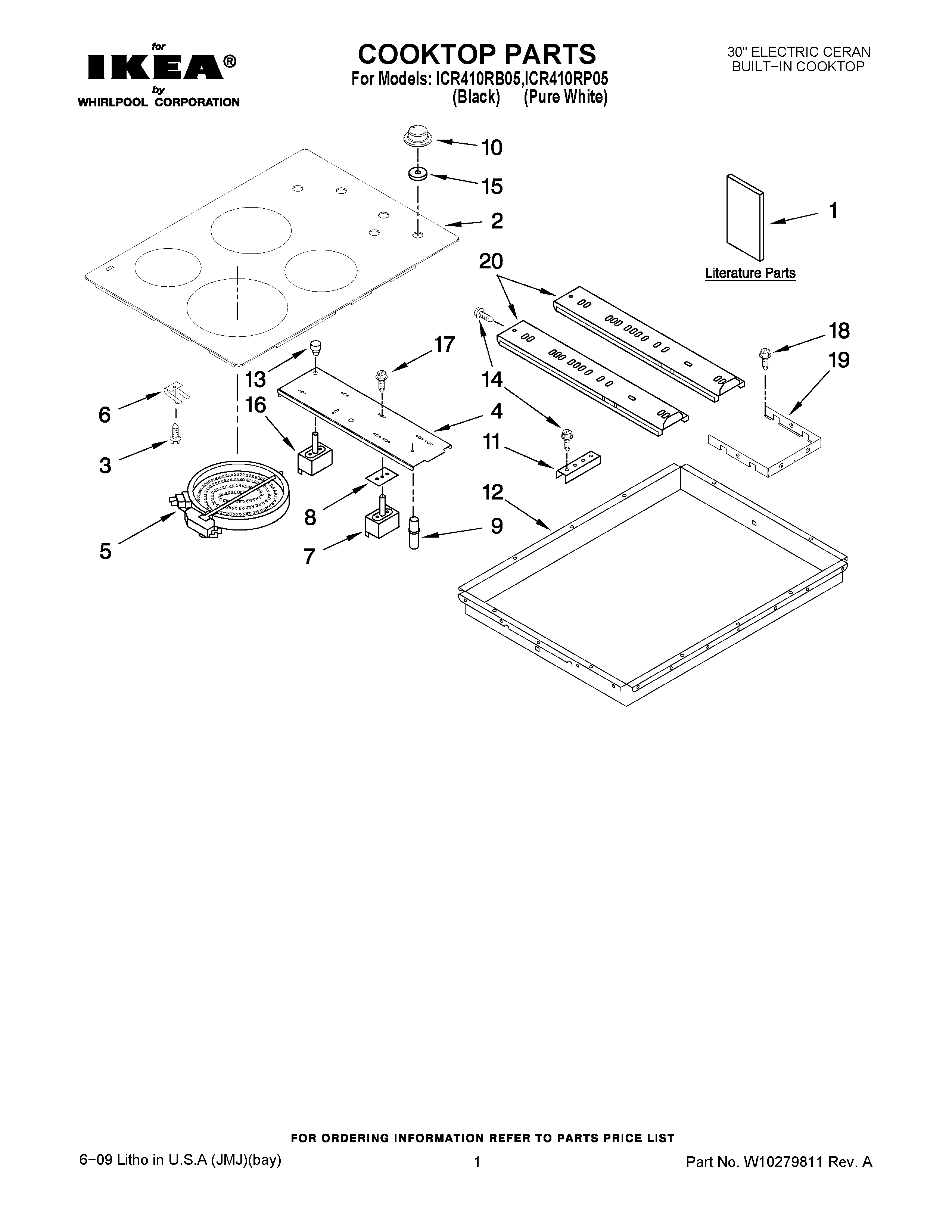

ICR410RB05 01 – COOKTOP PARTS

Products

Position	Product
1	Installation Instructions
1	Installation Instructions (Undercounter Oven)
1	Owners Manual
1	Safer Cooking Tips (French)
1	SAFER COOKING TIPS (ENGLISH
1	Wiring Diagram
2	W10647131 Whirlpool Cooktop Assembly
2	W10647135 Whirlpool Cooktop
3	WP486754 Whirlpool Compactor Screw
4	Insulation, Bracket
4	Bracket, Switch Mounting
5	W10823696 Whirlpool Radiant Surface Element
5	W10823711 Whirlpool Surface Element Left Front and Right Rear
5	W10823699 Whirlpool Right Front Surface Element
5	W10823698 Whirlpool Surface Element Right Rear
6	9759094 Whirlpool Spring
7	WP3191050 Whirlpool Infinite Switch
7	WP4454541 Whirlpool Infinite Switch
7	WP3191049 Infinite Switch Left Rear Right Front
8	3183956 Whirlpool Oven Seal Switch
9	Light, Indicator
10	9758785 Whirlpool Knob
10	9758786 Whirlpool Oven Knob
11	8186533 Whirlpool Hardware
12	Box, Burner
13	Bumper, Silicone
14	WP3196557 Whirlpool Screw
15	8285469 Whirlpool Oven Seal Switch
16	WP9762441 Whirlpool Selector Switch
17	WP486579 Whirlpool Air Conditioner Screw
18	W10491985 Whirlpool Screw
19	Shield, Heat
20	WPL 3192737
20	Rail, Element (3)
