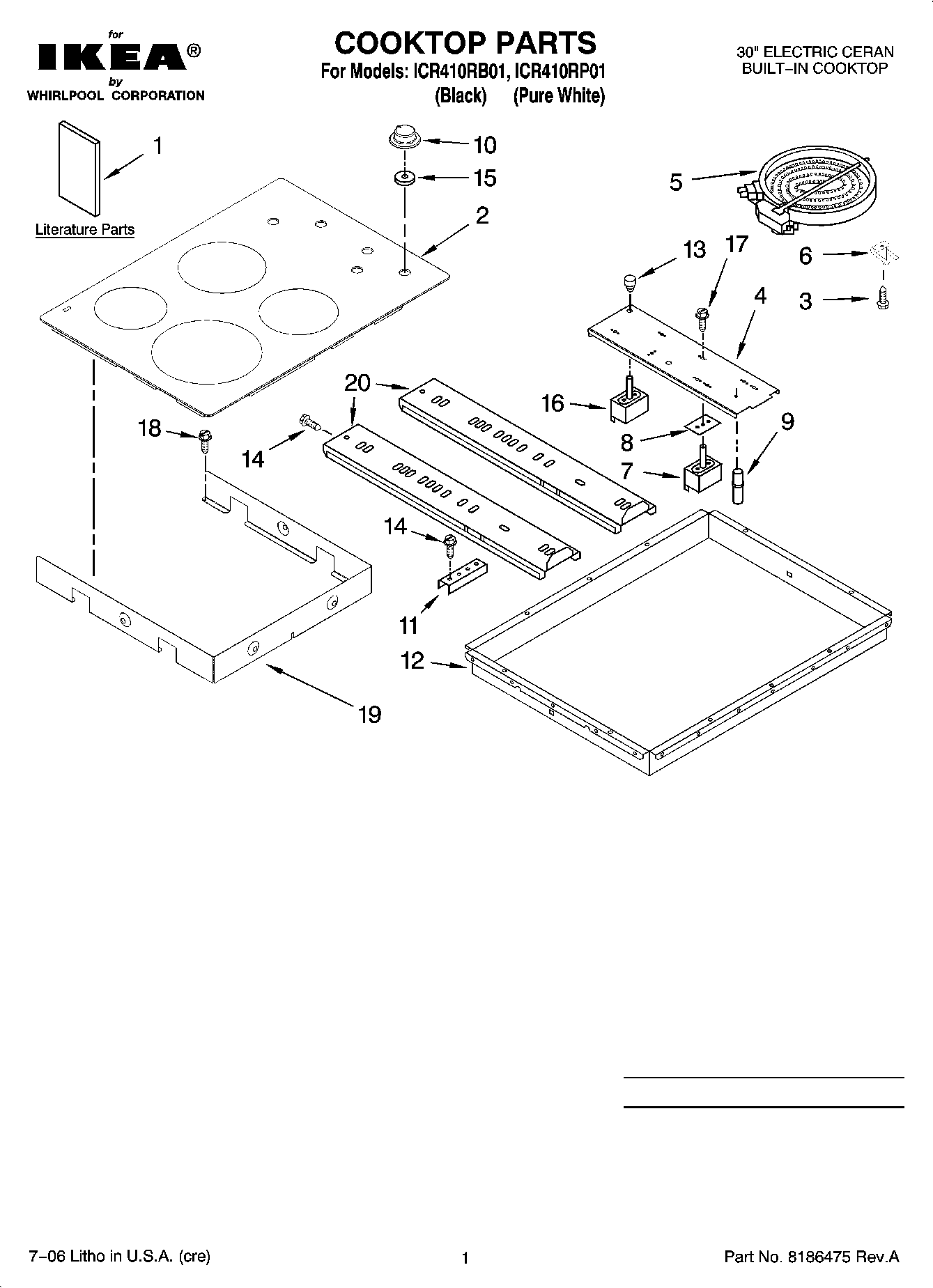

ICR410RP01 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

ICR410RP01 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

ICR410RP01 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
Wire (14 Ga. 150 c Brown)
242831 Whirlpool Oven Wire
WPL 9762223
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
WPL 4456028
W10491984 Whirlpool Switch Seal
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPL ARI75324A7
WP3400015 Whirlpool Screw
WPL ARI75323A3
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Harness, Cooktop
WPL ARI75325A6
WP308605 Whirlpool Refrigerator Clamp
1Wiring Diagram
1Installation Instructions
1Owners Manual
1Safe Cooking Tips (French)
1Safe Cooking Tips
2W10647135 Whirlpool Cooktop
2W10647131 Whirlpool Cooktop Assembly
3WP486754 Whirlpool Compactor Screw
4Insulation, Bracket
4Bracket, Switch Mounting
5W10823711 Whirlpool Surface Element Left Front and Right Rear
5W10823699 Whirlpool Right Front Surface Element
5W10823698 Whirlpool Surface Element Right Rear
5W10823696 Whirlpool Radiant Surface Element
69759094 Whirlpool Spring
7WP4454541 Whirlpool Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
7WP3191050 Whirlpool Infinite Switch
83183956 Whirlpool Oven Seal Switch
9Light, Indicator
109758786 Whirlpool Oven Knob
109758785 Whirlpool Knob
118186533 Whirlpool Hardware
12Box, Burner
13Bumper, Silicone
14WP3196557 Whirlpool Screw
158285469 Whirlpool Oven Seal Switch
16WP9762441 Whirlpool Selector Switch
17WP486579 Whirlpool Air Conditioner Screw
18W10491985 Whirlpool Screw
19Shield, Heat
20Following Parts Not Illustrated
20Rail, Element (2) (Side (3))
20Hardware Asm.
20WPL 3192737
204455364 Whirlpool Oven Support Bracket
