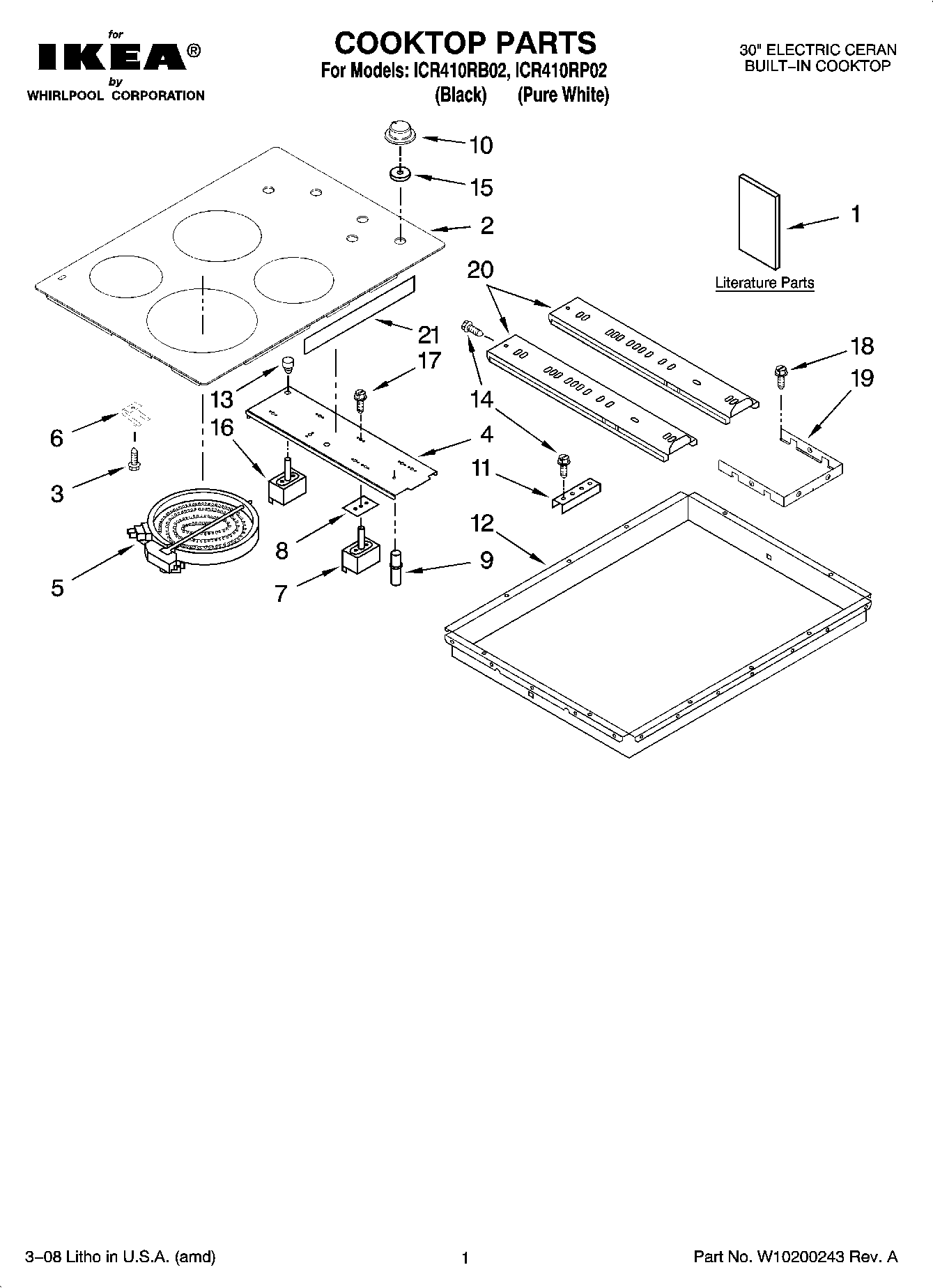

ICR410RP02 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	WPL ARI75328A9
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 200 c Brown)
	WP308605 Whirlpool Refrigerator Clamp
	WPL ARI75329A8
	WPL 3191239
	WPL 9762223
	Harness, Cooktop
	WPL ARI75326A6
	WPL ARI75327A9
	Wire (14 Ga. 150 c Orange)
	Wire, 25` Roll (Red 14 Ga.)
	WP3400015 Whirlpool Screw
	Wire, 25` Roll (Black 14 Ga.)
	W10491984 Whirlpool Switch Seal
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
1	Installation Instructions
1	Wiring Diagram
1	Installation Instructions (Undercounter Oven)
1	Safe Cooking Tips
1	Owners Manual
1	Safe Cooking Tips (French)
2	W10647131 Whirlpool Cooktop Assembly
2	W10647135 Whirlpool Cooktop
3	WP486754 Whirlpool Compactor Screw
4	Insulation, Bracket
4	Bracket, Switch Mounting
5	W10823699 Whirlpool Right Front Surface Element
5	W10823698 Whirlpool Surface Element Right Rear
5	W10823711 Whirlpool Surface Element Left Front and Right Rear
5	W10823696 Whirlpool Radiant Surface Element
6	9759094 Whirlpool Spring
7	WP3191049 Infinite Switch Left Rear Right Front
7	WP3191050 Whirlpool Infinite Switch
7	WP4454541 Whirlpool Infinite Switch
8	3183956 Whirlpool Oven Seal Switch
9	Light, Indicator
10	9758786 Whirlpool Oven Knob
10	9758785 Whirlpool Knob
11	8186533 Whirlpool Hardware
12	Box, Burner
13	Bumper, Silicone
14	WP3196557 Whirlpool Screw
15	8285469 Whirlpool Oven Seal Switch
16	WP9762441 Whirlpool Selector Switch
17	WP486579 Whirlpool Air Conditioner Screw
18	W10491985 Whirlpool Screw
19	Shield, Heat
20	WPL 3192737
20	Rail, Element (2) (Side (3))
21	Foam, Seal
