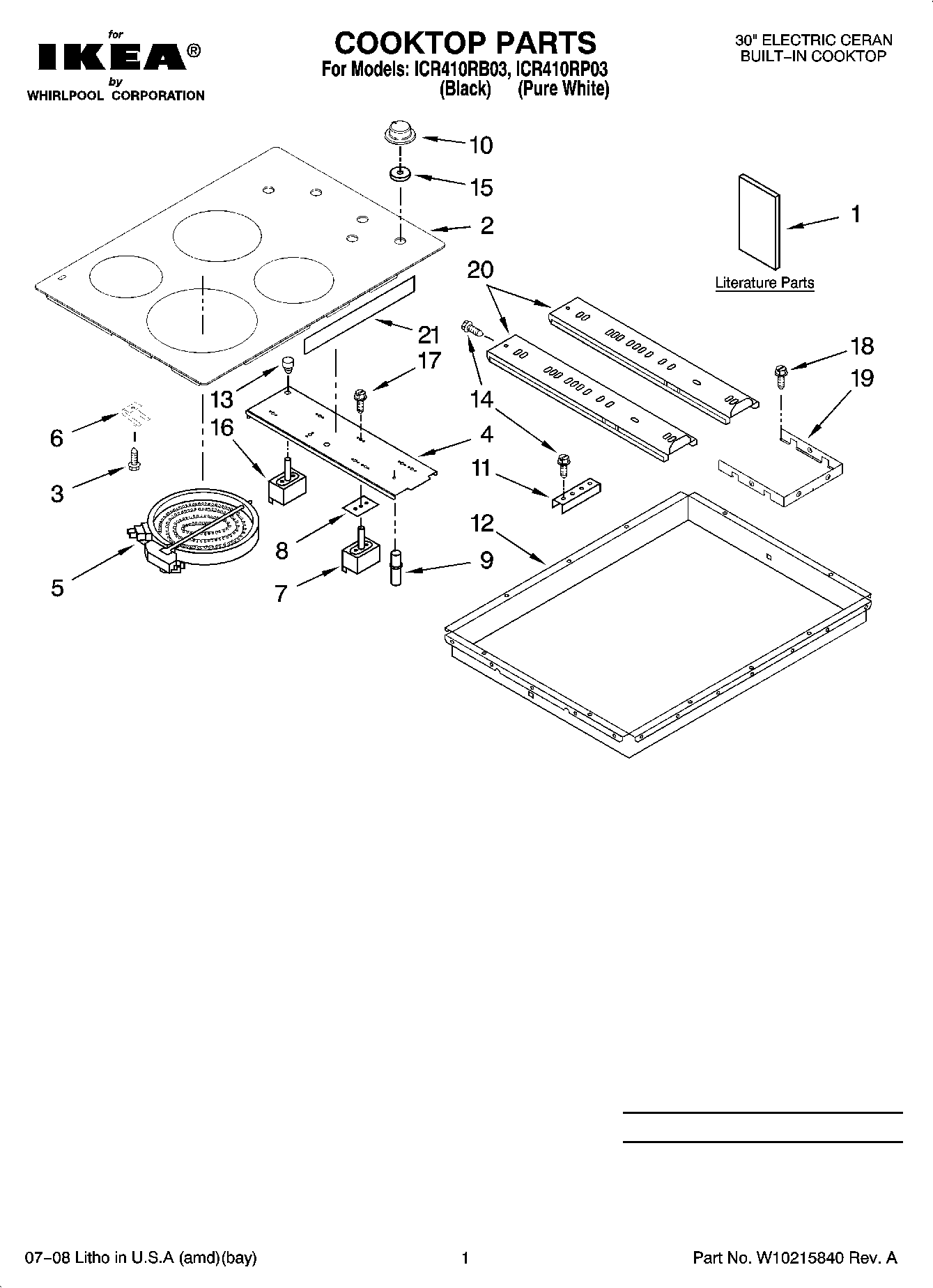

ICR410RP03 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 200 c Brown)
	WP308605 Whirlpool Refrigerator Clamp
	Harness, Cooktop
	WPL 9762223
	WPL ARI75330A3
	W10491984 Whirlpool Switch Seal
	WPL 3191239
	WP3400015 Whirlpool Screw
	WPL ARI75332A1
	WPL ARI75333A3
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	WPL ARI75331A2
1	Installation Instructions
1	Installation Instructions (Undercounter Oven)
1	Wiring Diagram
1	Owners Manual
1	SAFER COOKING TIPS (ENGLISH
1	Safer Cooking Tips (French)
2	W10647135 Whirlpool Cooktop
2	W10647131 Whirlpool Cooktop Assembly
3	WP486754 Whirlpool Compactor Screw
4	Insulation, Bracket
4	Bracket, Switch Mounting
5	W10823698 Whirlpool Surface Element Right Rear
5	W10823696 Whirlpool Radiant Surface Element
5	W10823699 Whirlpool Right Front Surface Element
5	W10823711 Whirlpool Surface Element Left Front and Right Rear
6	9759094 Whirlpool Spring
7	WP4454541 Whirlpool Infinite Switch
7	WP3191049 Infinite Switch Left Rear Right Front
7	WP3191050 Whirlpool Infinite Switch
8	3183956 Whirlpool Oven Seal Switch
9	Light, Indicator
10	9758786 Whirlpool Oven Knob
10	9758785 Whirlpool Knob
11	8186533 Whirlpool Hardware
12	Box, Burner
13	Bumper, Silicone
14	WP3196557 Whirlpool Screw
15	8285469 Whirlpool Oven Seal Switch
16	WP9762441 Whirlpool Selector Switch
17	WP486579 Whirlpool Air Conditioner Screw
18	W10491985 Whirlpool Screw
19	Shield, Heat
20	Rail, Element (2) (Side (3))
20	WPL 3192737
21	Foam, Seal
