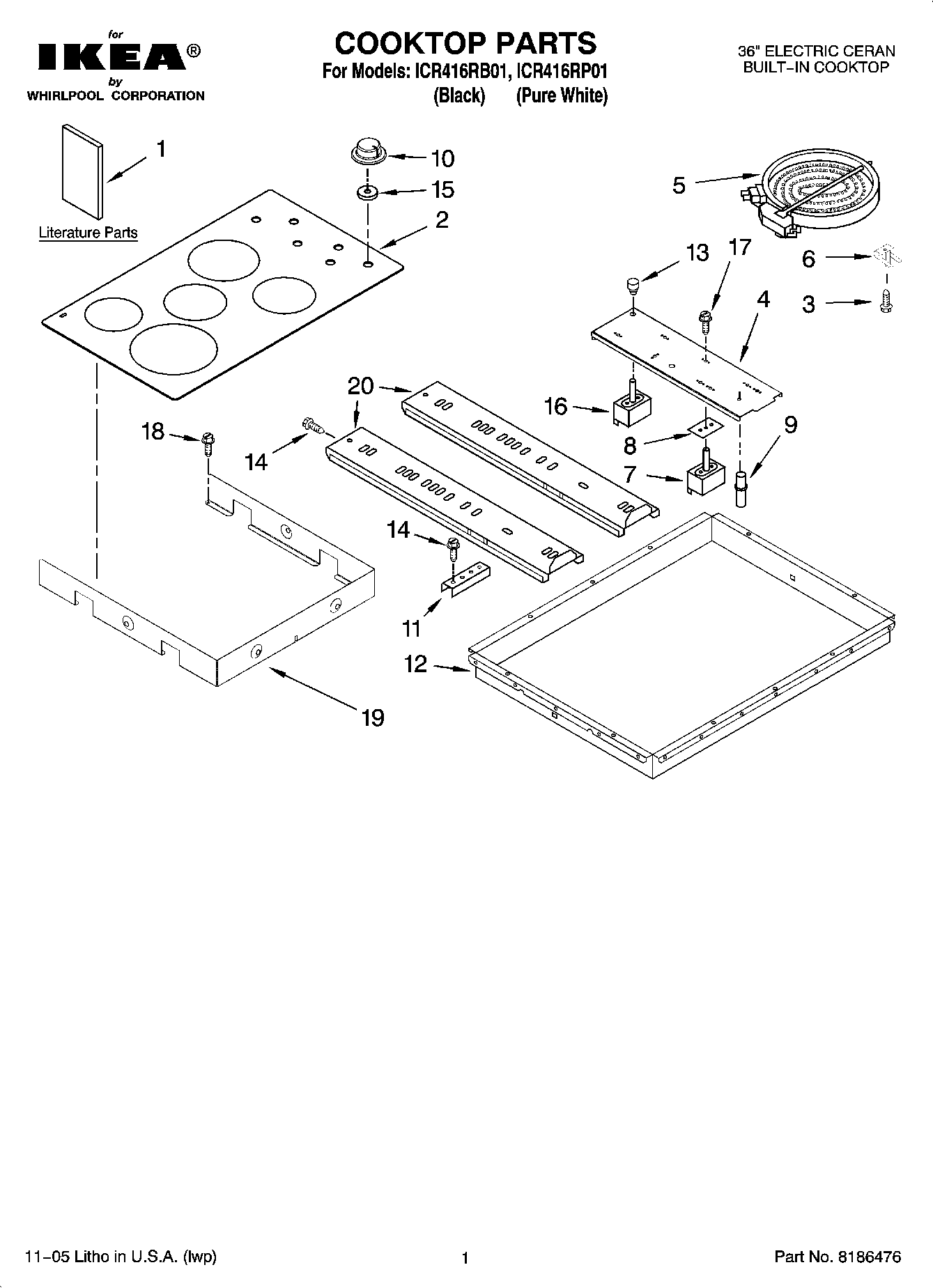

ICR416RB01 01 – COOKTOP PARTS

ICR416RB01 01 – COOKTOP PARTS

Written by

in

ICR416RB01 01 – COOKTOP PARTS

Products

PositionProduct
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
WPL 9762223
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
242831 Whirlpool Oven Wire
WPL 9762055
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WP308605 Whirlpool Refrigerator Clamp
WPL ARI75343A9
WP3400015 Whirlpool Screw
WPL ARI75342A9
WPL ARI75341A9
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
3183956 Whirlpool Oven Seal Switch
1Owners Manual
1Wiring Diagram Safer Cooking Tips
1Safe Cooking Tips (French)
1Safe Cooking Tips
1Installation Instructions
2Cooktop & Bracket Assembly (Pure White)
2Cooktop & Bracket Assembly (Black)
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
4Insulation, Bracket
5W10823696 Whirlpool Radiant Surface Element
5WP8523700 Whirlpool Surface Element
5W10823711 Whirlpool Surface Element Left Front and Right Rear
5W10823698 Whirlpool Surface Element Right Rear
5W10823699 Whirlpool Right Front Surface Element
69759094 Whirlpool Spring
7Switch, Infinite (Warm Zone)
7WP3191050 Whirlpool Infinite Switch
7WP4454541 Whirlpool Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
8W10491984 Whirlpool Switch Seal
9Light, Indicator
109758786 Whirlpool Oven Knob
109758785 Whirlpool Knob
118186533 Whirlpool Hardware
12Box, Burner
13Bumper, Silicone
14WP3196557 Whirlpool Screw
158285469 Whirlpool Oven Seal Switch
16WP9762441 Whirlpool Selector Switch
17WP486579 Whirlpool Air Conditioner Screw
18W10491985 Whirlpool Screw
19Shield, Heat
20Hardware Asm.
20Rail, Element (2) (Side (3))
20WPL 3192737
204455364 Whirlpool Oven Support Bracket
20FOLLOWING PARTS NOT ILLUSTRATED
