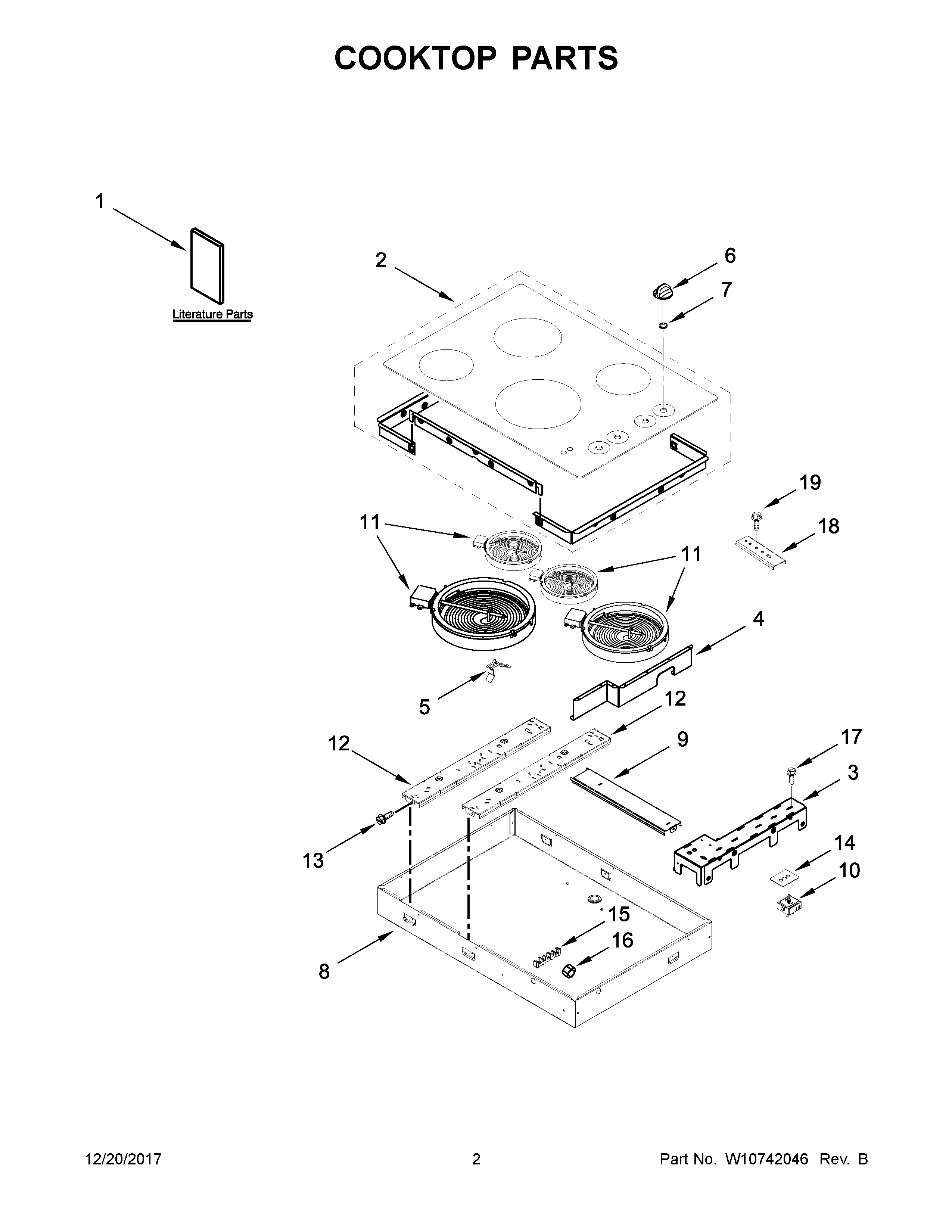

ICR444DB00 02 – COOKTOP PARTS

Products

PositionProduct
NIWP8286642 Whirlpool Tape
NIW10316661 Whirlpool Heat Gasket Assembly
NIGROMMET, WIRE
NIW10491984 Whirlpool Switch Seal
NIW11190476 Whirlpool Wire Harness
NICONDUIT
NIW10406515 Whirlpool Wire Harness
NICLAMP, WIRE
NICABINET (NOT A SERVICEABLE PART)
NINut
1AINSTRUCTIONS, INSTALLATION
1GUIDE, USE & CARE
1CINSTRUCTIONS, UNDERCOUNTER
1BWIRING DIAGRAM
2W10751486 Whirlpool Cooktop
3PLATE, SWITCH
4W10311796 Whirlpool Heat Shield
5WPW10225448 Whirlpool Spring Assembly
6W11211475 Whirlpool Knob Assembly
7WPW10293874 Whirlpool Stove Cooktop Knob Grommet
9W10311790 Whirlpool Sprt Element
10CSWITCH, INFINITE (RR)
10BW10861720 Whirlpool Infinite Switch
10AWPW10244639 Whirlpool Burner Control Switch
10WPW10326246 Whirlpool Infinite Switch
11ELMNT-SURF
11AWP8273993 Whirlpool Surface Element
11BW11047722 Whirlpool Radiant Surface Element
12RAIL, VERTICAL
13SCREW
143183956 Whirlpool Oven Seal Switch
15BLOCK, TERMINAL
16WP3400029 Whirlpool Dishwasher Nut
17WPL 7101P30960
188186533 Whirlpool Hardware
19WP3400093 Whirlpool Screw
