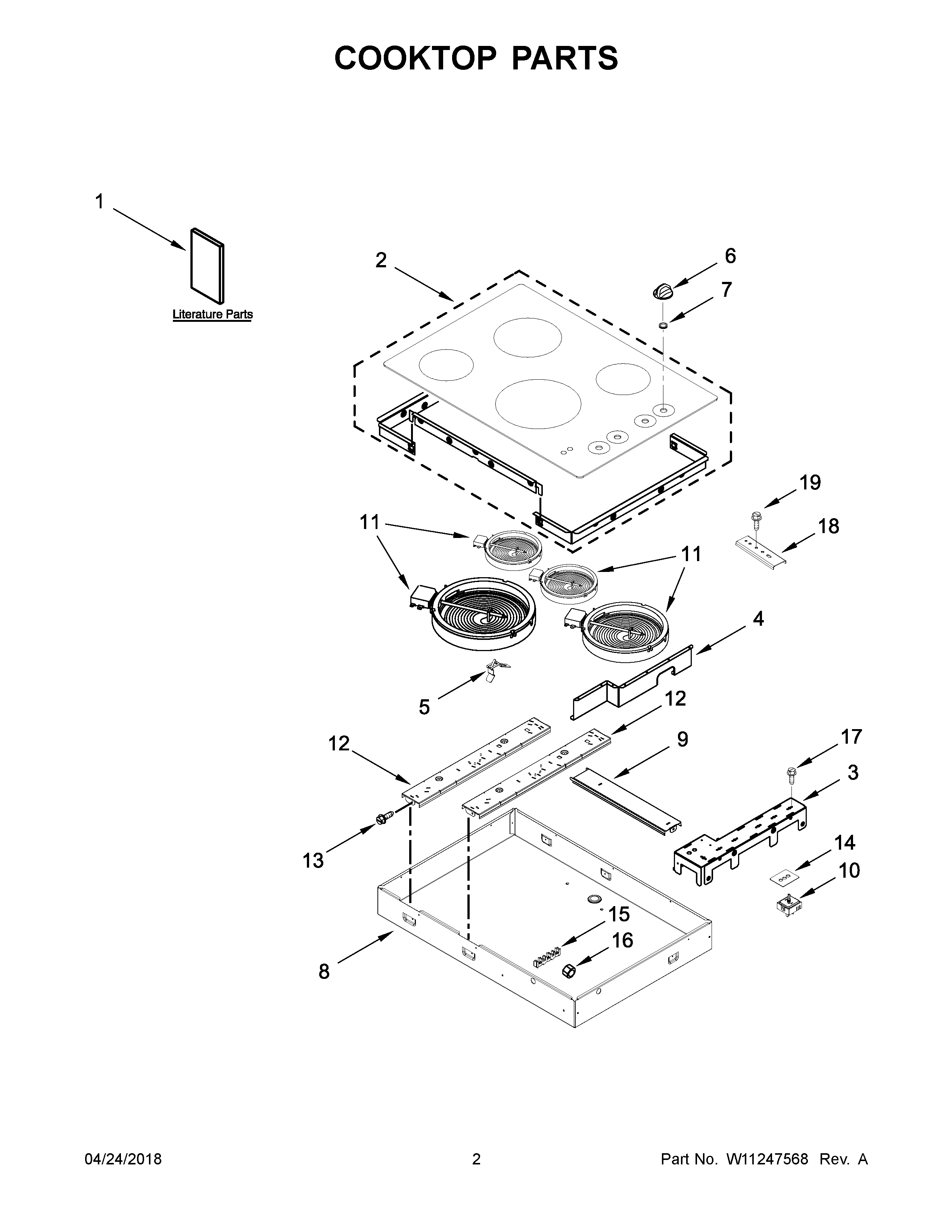

ICR444DB01 02 – COOKTOP PARTS

Products

Position	Product
NI	W11190472 Whirlpool Wire Harness
NI	WP8286642 Whirlpool Tape
NI	W10316661 Whirlpool Heat Gasket Assembly
NI	W10491984 Whirlpool Switch Seal
NI	GROMMET, WIRE
NI	W11190476 Whirlpool Wire Harness
NI	CONDUIT
NI	SCREW
NI	WP3400015 Whirlpool Screw
NI	CLAMP, WIRE
NI	CABINET (NOT A SERVICEABLE PART)
NI	Nut
1B	WIRING DIAGRAM
1A	INSTRUCTIONS, INSTALLATION
1C	INSTRUCTIONS, UNDERCOUNTER
1	GUIDE, USE & CARE
2	W10751486 Whirlpool Cooktop
3	PLATE, SWITCH
4	W10311796 Whirlpool Heat Shield
5	WPW10225448 Whirlpool Spring Assembly
6	W11211475 Whirlpool Knob Assembly
7	WPW10293874 Whirlpool Stove Cooktop Knob Grommet
9	W10311790 Whirlpool Sprt Element
10B	W10861720 Whirlpool Infinite Switch
10C	SWITCH, INFINITE (RR)
10	WPW10326246 Whirlpool Infinite Switch
10A	WPW10244639 Whirlpool Burner Control Switch
11	ELMNT-SURF
11B	W11047722 Whirlpool Radiant Surface Element
11A	WP8273993 Whirlpool Surface Element
12	RAIL, VERTICAL
13	SCREW
14	3183956 Whirlpool Oven Seal Switch
15	BLOCK, TERMINAL
16	WP3400029 Whirlpool Dishwasher Nut
17	WPL 7101P30960
18	8186533 Whirlpool Hardware
19	WP3400093 Whirlpool Screw
