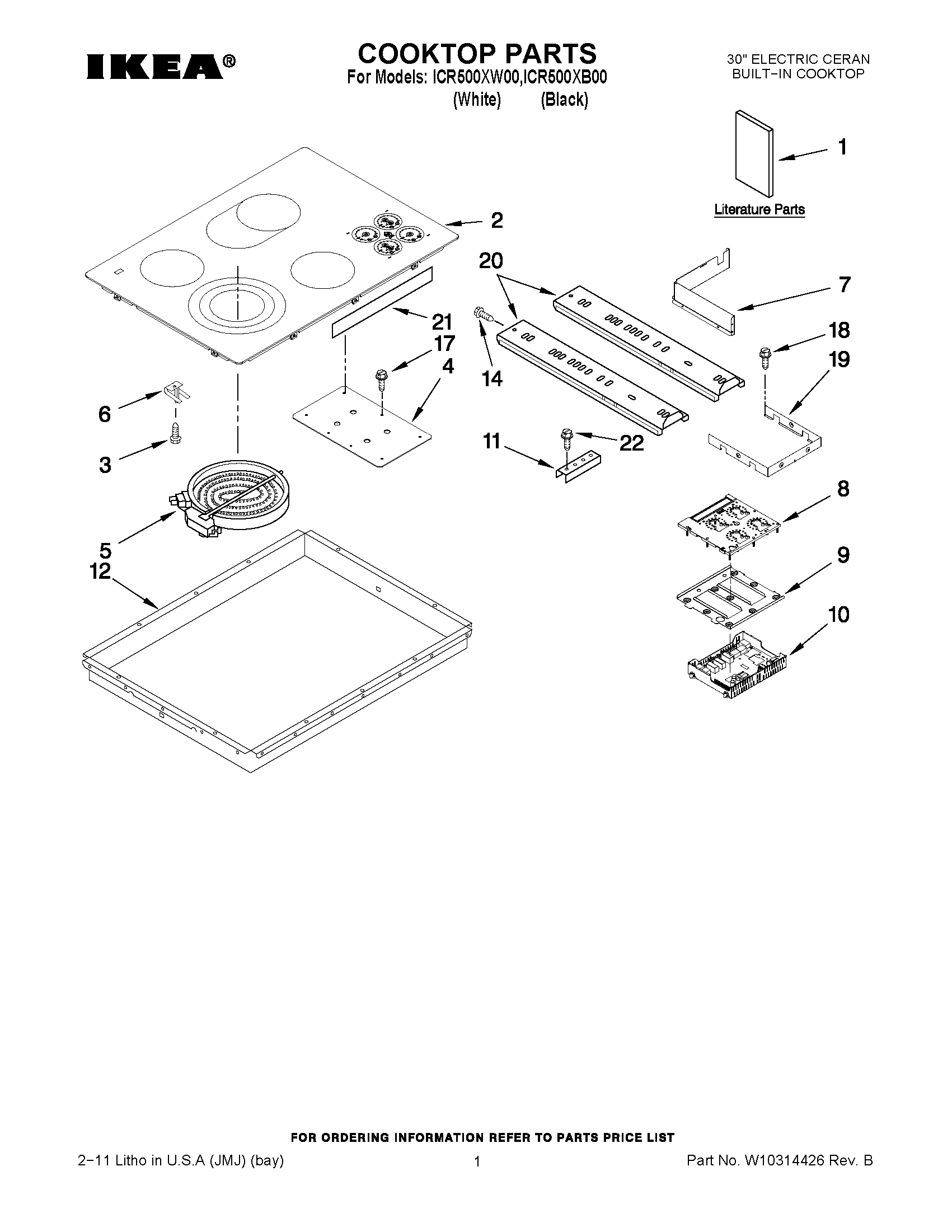

ICR500XB00 01 – COOKTOP PARTS

Products

PositionProduct
1WIRING DIAGRAM
1INSTALLATION INSTRUCTIONS
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1OWNERS MANUAL
1Installation Instructions (Undercounter Oven)
2COOKTOP & BRACKET ASSEMBLY (WHITE)
2W10739032 Whirlpool Cooktop
3WP486754 Whirlpool Compactor Screw
4Bracket, Bottom
5Element, Surface (2500/1800/900W LF)
5WP8285230 Whirlpool Surface Element
5W10203295 Whirlpool Surface Element
69759094 Whirlpool Spring
7Wall, Inside
8WP8286138 Whirlpool Electronic Control Board
9Support, Module
109758786 Whirlpool Oven Knob
10Appliance Manager, Module
118186533 Whirlpool Hardware
12Box, Burner
14WP3196557 Whirlpool Screw
18W10491985 Whirlpool Screw
19Box, Control
20Rail, Element (3)
20Seal, Heat
21WP8286642 Whirlpool Tape
22WP3400093 Whirlpool Screw
