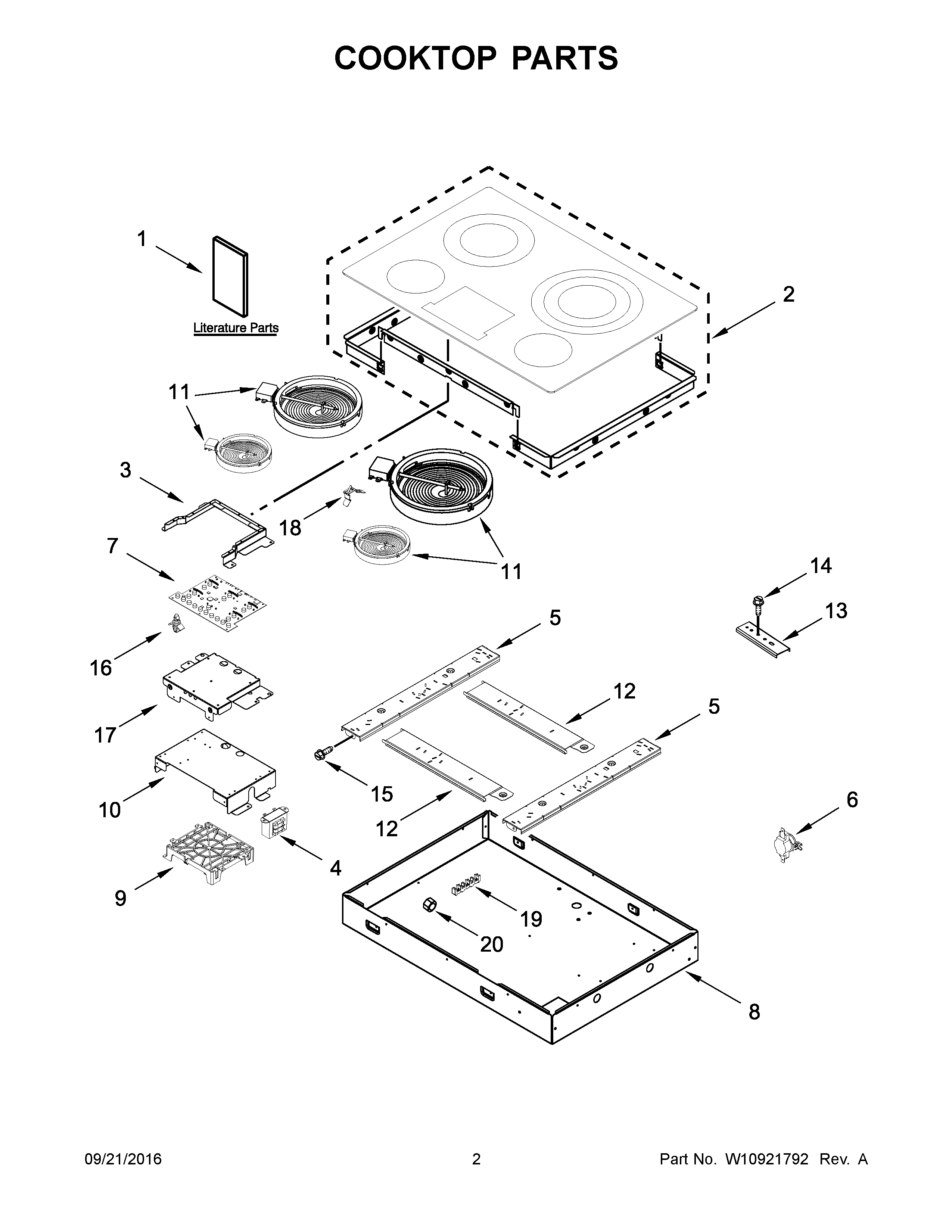

ICR555DW01 02 – COOKTOP PARTS

Products

Position	Product
NI	W11190496 Whirlpool Wire Harness
NI	W10491984 Whirlpool Switch Seal
NI	W10291385 Whirlpool Conduit
NI	BUSHING
NI	WP8286642 Whirlpool Tape
NI	GROMMET, WIRE
NI	W10316659 Whirlpool Heat Gasket
NI	Nut
NI	WP3400015 Whirlpool Screw
NI	CABINET (NOT A SERVICEABLE PART)
1C	SAFER COOKING TIPS (ENGLISH
1F	SHEET, TECH (FRENCH)
1E	SHEET, TECH (ENGLISH)
1A	INSTRUCTIONS, UNDERCOUNTER INSTALLATION
1	INSTRUCTIONS, INSTALLATION
1B	GUIDE, USE & CARE
1D	Safer Cooking Tips (French)
2	W10749638 Whirlpool Cooktop Assembly
2A	W10749640 Whirlpool Cooktop Assembly
3	W10311898 Whirlpool Shield
4	WP9760588 Whirlpool Transformer
5	W10311788 Whirlpool Support Element
6	W10464566 Whirlpool Thermostat
7	WPW10325426-includeCORE Whirlpool WPW10325426 Refrigerator Electronic Control Board + Core
8	BOX, BURNER
9	W11028268 Whirlpool Electronic Control Board
10	W10311795 Whirlpool Box Control
11B	W11563195 Whirlpool Surface Element
11	ELMNT-SURF
11A	ELMNT-SURF
12	RAIL, HORIZONTAL
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
15	SCREW
16	W10225914 Whirlpool Support
17	W10311794 Whirlpool Support Assembly
18	WPW10225448 Whirlpool Spring Assembly
19	BLOCK, TERMINAL
20	WP3400029 Whirlpool Dishwasher Nut
