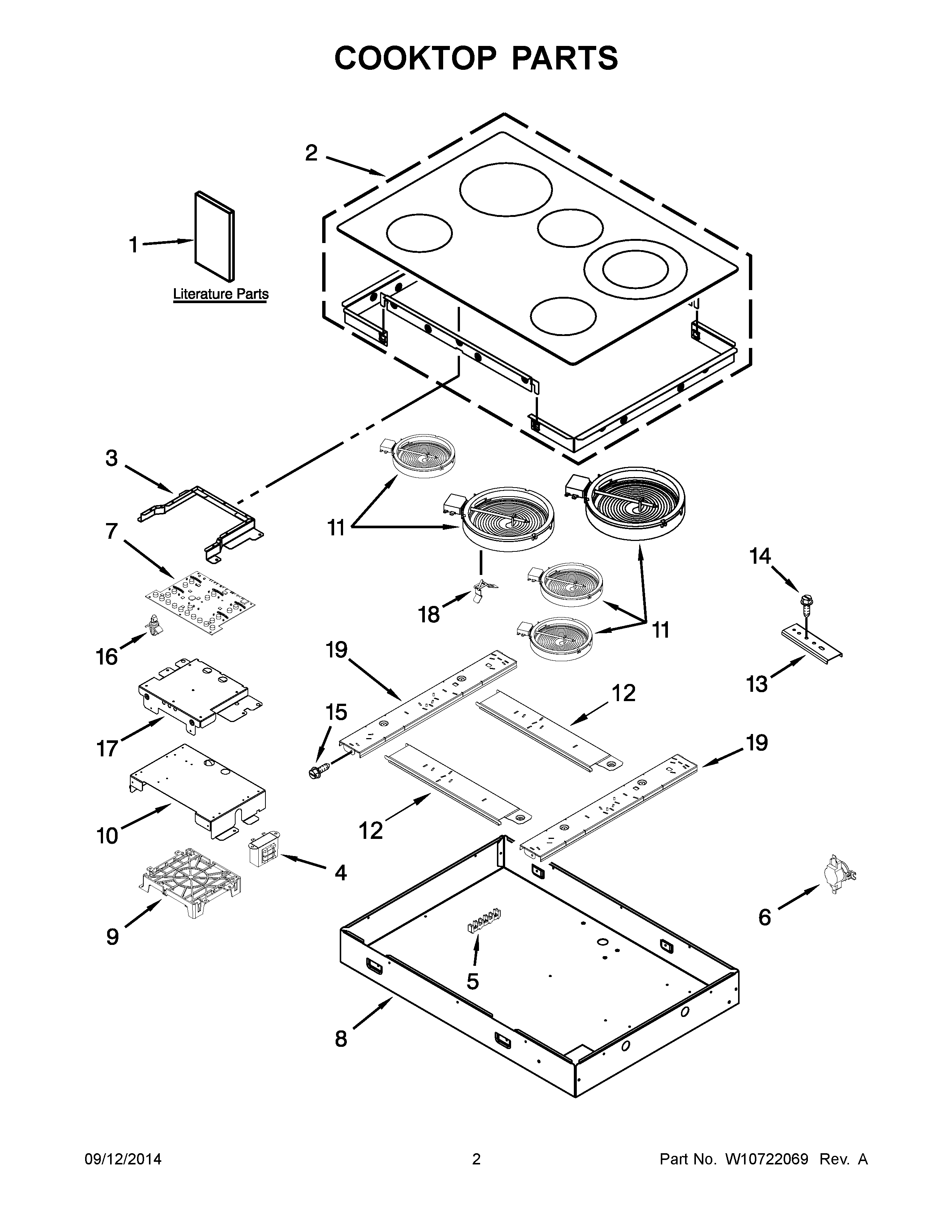

ICR655DB00 02 – COOKTOP PARTS

Products

Position	Product
NI	W10491984 Whirlpool Switch Seal
NI	CABINET (NOT A SERVICEABLE PART)
NI	CLAMP, WIRE
NI	GROMMET, WIRE
NI	BUSHING
NI	W10291385 Whirlpool Conduit
NI	W10311698 Whirlpool Wire Harness
NI	W10316659 Whirlpool Heat Gasket
1E	TECH SHEET (FRENCH)
1D	TECH SHEET (ENGLISH)
1	INSTRUCTIONS, INSTALLATION
1C	Safer Cooking Tips (French)
1B	SAFER COOKING TIPS (ENGLISH
1A	GUIDE, USE & CARE
2	W10749647 Whirlpool Cooktop
3	W10311898 Whirlpool Shield
4	WP9760588 Whirlpool Transformer
5	BLOCK, TERMINAL
6	W10464566 Whirlpool Thermostat
7	WPW10333979-includeCORE Whirlpool WPW10333979 Washer Electronic Control Board + Core
8	BOX, BURNER
9	APPLIANCE MGR.
10	W10311795 Whirlpool Box Control
11B	ELMNT-SURF
11A	WPW10248258 Whirlpool Surface Element
11C	WPW10245539 Whirlpool Surface Element
11	ELMNT-SURF
12	RAIL, HORIZONTAL
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
15	SCREW
16	W10225914 Whirlpool Support
17	W10311794 Whirlpool Support Assembly
18	WPW10225448 Whirlpool Spring Assembly
19	RAIL, VERTICAL
