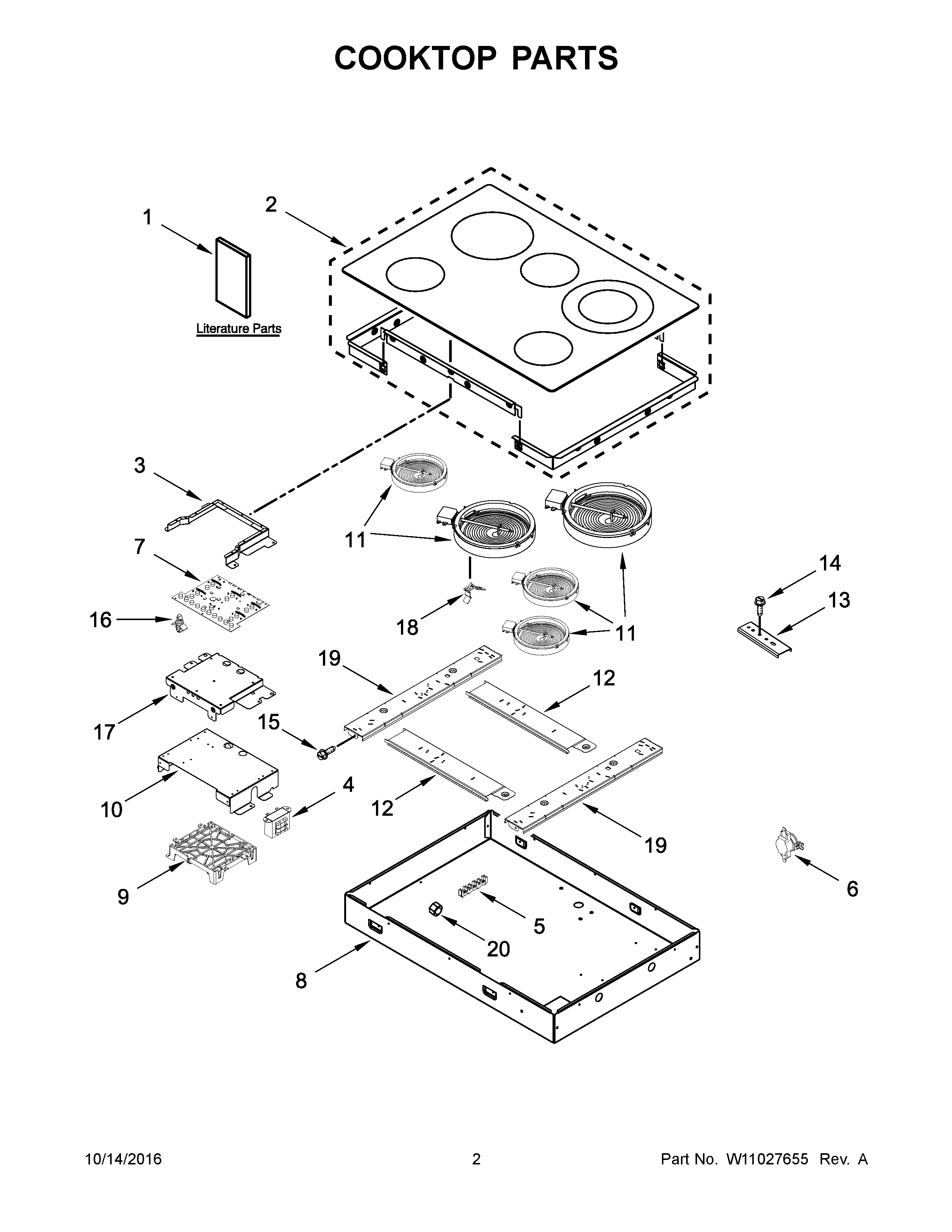

ICR655DB01 02 – COOKTOP PARTSadmin2025-04-26T12:33:04+00:00ICR655DB01 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | WP8286642 Whirlpool Tape |
| NI | BUSHING |
| NI | GROMMET, WIRE |
| NI | CABINET (NOT A SERVICEABLE PART) |
| NI | CLAMP, WIRE |
| NI | W10291385 Whirlpool Conduit |
| NI | W10491984 Whirlpool Switch Seal |
| NI | W10905141 Whirlpool Wire Harness |
| NI | W10316659 Whirlpool Heat Gasket |
| 1E | SHEET, TECH (ENGLISH) |
| 1F | SHEET, TECH (FRENCH) |
| 1D | Safer Cooking Tips (French) |
| 1C | SAFER COOKING TIPS (ENGLISH |
| 1 | INSTRUCTIONS, INSTALLATION |
| 1B | GUIDE, USE & CARE |
| 1A | INSTRUCTIONS, UNDERCOUNTER INSTALLATION |
| 2 | W10749647 Whirlpool Cooktop |
| 3 | W10311898 Whirlpool Shield |
| 4 | WP9760588 Whirlpool Transformer |
| 5 | BLOCK, TERMINAL |
| 6 | W10464566 Whirlpool Thermostat |
| 7 | WPW10333979-includeCORE Whirlpool WPW10333979 Washer Electronic Control Board + Core |
| 8 | BOX, BURNER |
| 9 | W10915422 Whirlpool Electronic Control Board |
| 10 | W10311795 Whirlpool Box Control |
| 11B | ELMNT-SURF |
| 11 | ELMNT-SURF |
| 11A | WPW10248258 Whirlpool Surface Element |
| 11C | WPW10245539 Whirlpool Surface Element |
| 12 | RAIL, HORIZONTAL |
| 13 | 8186533 Whirlpool Hardware |
| 14 | WP3400093 Whirlpool Screw |
| 15 | SCREW |
| 16 | W10225914 Whirlpool Support |
| 17 | W10311794 Whirlpool Support Assembly |
| 18 | WPW10225448 Whirlpool Spring Assembly |
| 19 | RAIL, VERTICAL |
| 20 | WP3400029 Whirlpool Dishwasher Nut |
