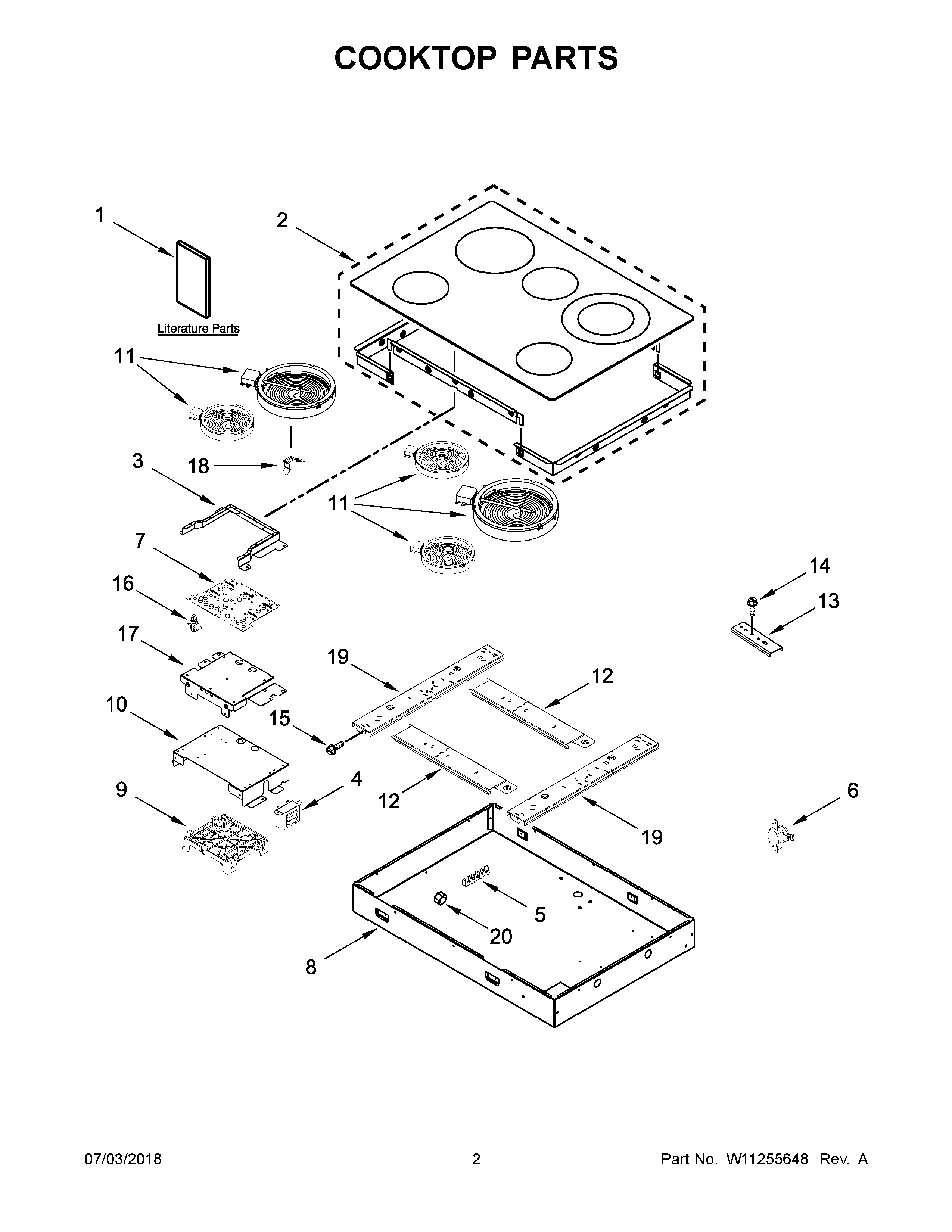

ICR655DB02 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, COOKTOP
NI	WP8286642 Whirlpool Tape
NI	W10491984 Whirlpool Switch Seal
NI	GROMMET, WIRE
NI	SCREW
NI	W10316659 Whirlpool Heat Gasket
NI	GROMMET, WIRE
NI	CLAMP, WIRE
NI	CONDUIT
NI	WP3400015 Whirlpool Screw
NI	BUSHING
NI	Nut
NI	CABINET (NOT A SERVICEABLE PART)
1	INSTRUCTIONS, INSTALLATION
1A	INSTRUCTIONS, UNDERCOUNTER
1C	SHEET, TECH (ENGLISH)
1B	GUIDE, USE & CARE
1D	SHEET, TECH (FRENCH)
2	W10749647 Whirlpool Cooktop
3	W10311898 Whirlpool Shield
4	WP9760588 Whirlpool Transformer
5	BLOCK, TERMINAL
6	W10464566 Whirlpool Thermostat
7	WPW10333979-includeCORE Whirlpool WPW10333979 Washer Electronic Control Board + Core
8	BOX, BURNER
9	W10915422 Whirlpool Electronic Control Board
10	W10311795 Whirlpool Box Control
11	ELMNT-SURF
11C	WPW10245539 Whirlpool Surface Element
11B	ELMNT-SURF
11A	WPW10248258 Whirlpool Surface Element
12	RAIL, HORIZONTAL
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
15	SCREW
16	W10225914 Whirlpool Support
17	W10311794 Whirlpool Support Assembly
18	WPW10225448 Whirlpool Spring Assembly
19	RAIL, VERTICAL
20	WP3400029 Whirlpool Dishwasher Nut
