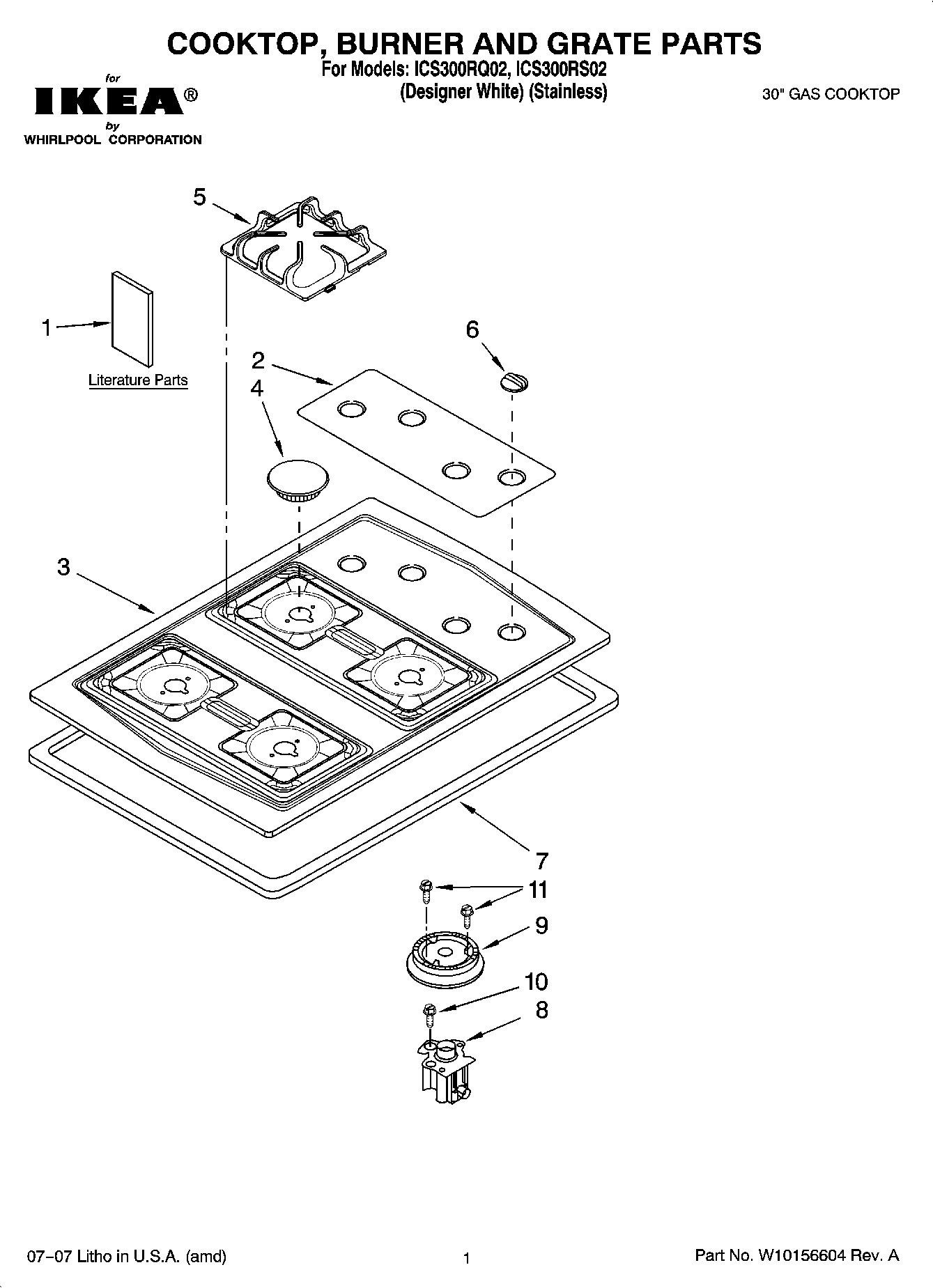

ICS300RQ02 01 – COOKTOP, BURNER AND GRATE PARTS

ICS300RQ02 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

ICS300RQ02 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
Following Parts Not Illustrated
4456626 Whirlpool Wire
4456627 Whirlpool Wire Harness
1Owners Manual
1Safe Cooking Tips (French)
1Safe Cooking Tips
1Installation Instructions
1Wiring Diagram
1L.P. Conversion Instructions
2Panel, Control (White)
2Panel, Control (Stainless)
3WP3191243 Whirlpool Cooktop Assembly
3W11230936 Whirlpool Cooktop
4WP3191898 Whirlpool Surface Burner Cap Black
4WP3191901 Whirlpool Burner Cap
4WP3191904 Whirlpool Burner Cap
4WP3191905 Whirlpool Burner Cap
4Cap, Burner 6K (1) (Gray)
4WP3191903 Whirlpool Burner Cap
5Grate (4) (Gray)
5Grate (4) (Black)
69758788 Whirlpool Oven Knob
6Knob, Control (4) (White)
79760045 Whirlpool Oven Foam Seal
8WPW10155785 Whirlpool Orifice Holder
8WPW10155784 Whirlpool Orifice Holder
8WPW10128448 Whirlpool Igniter and Orifice Holder
99760037 Whirlpool Top Burner
9WP4455981 Whirlpool Burner Head
9WP4455979 Whirlpool Range Small Burner Head
10WP4449809 Whirlpool Screw
11WP3368921 Whirlpool Screw
