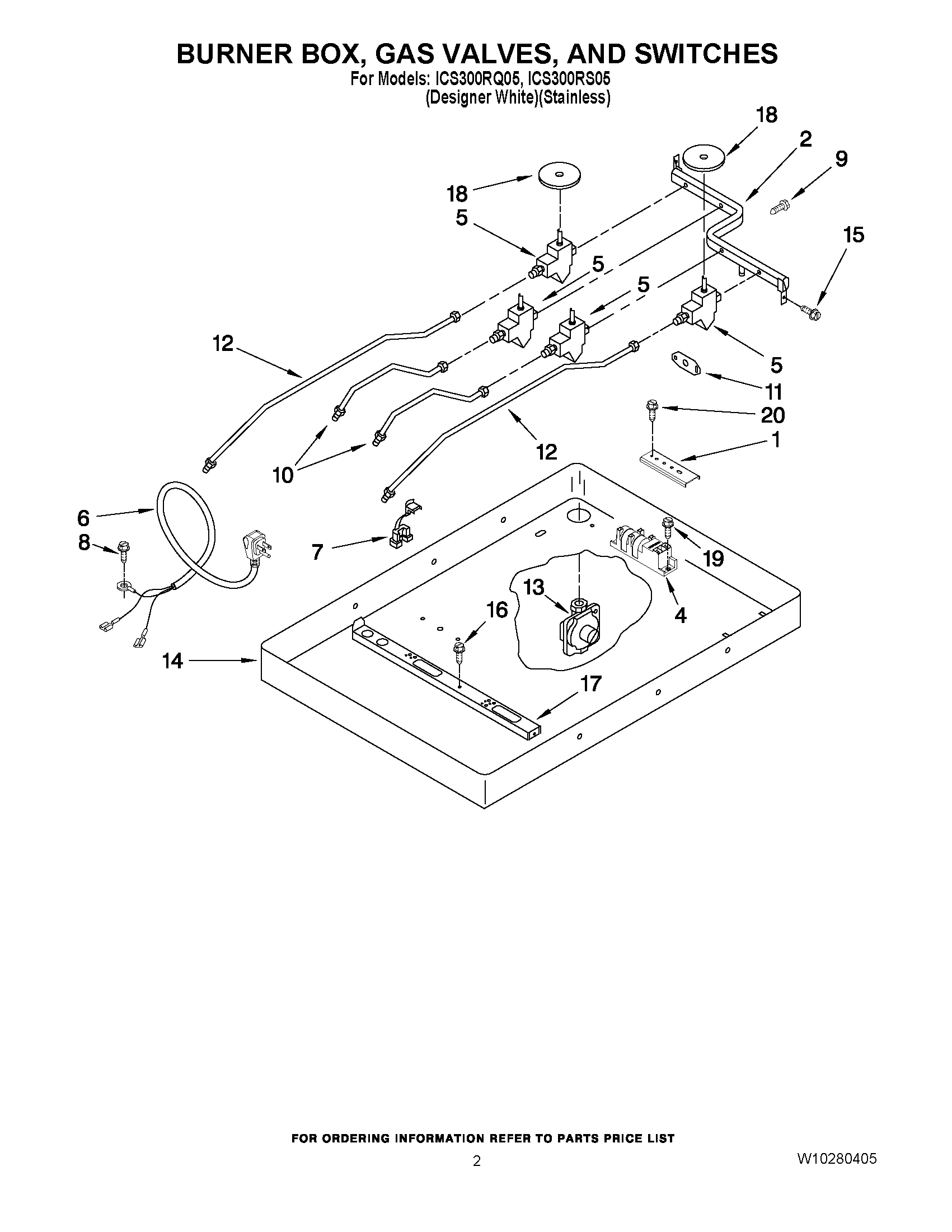

ICS300RQ05 02 – BURNER BOX, GAS VALVES, AND SWITCHES

ICS300RQ05 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

ICS300RQ05 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NIWP3192741 Whirlpool LP Conversion Kit
NIWP4456905 Whirlpool Wire Harness
18186533 Whirlpool Hardware
29759354 Whirlpool Oven Manifold Pipe
4WPW10110491 Whirlpool Spark Module
5WP4456817 Whirlpool Burner Valve
5WP4456816 Whirlpool Burner Valve
6W10392007 Whirlpool Power Cord
74173634 Whirlpool Bushing
8WP3177991 Whirlpool Screw
9SCREW
10Tubing, Burner RR & RF
113192491 Whirlpool Support Bracket
123191320 Whirlpool Oven Gas Tubing
13W11170853 Whirlpool Regulator Assembly
144456780 Whirlpool Oven Burner Box
15WP3400806 Whirlpool Screw
16WP4449809 Whirlpool Screw
17W10203756 Whirlpool Support
18WP3188425 Whirlpool Seal Switch
19WP12990527 Whirlpool Microwave Screw
20WP3400093 Whirlpool Screw
