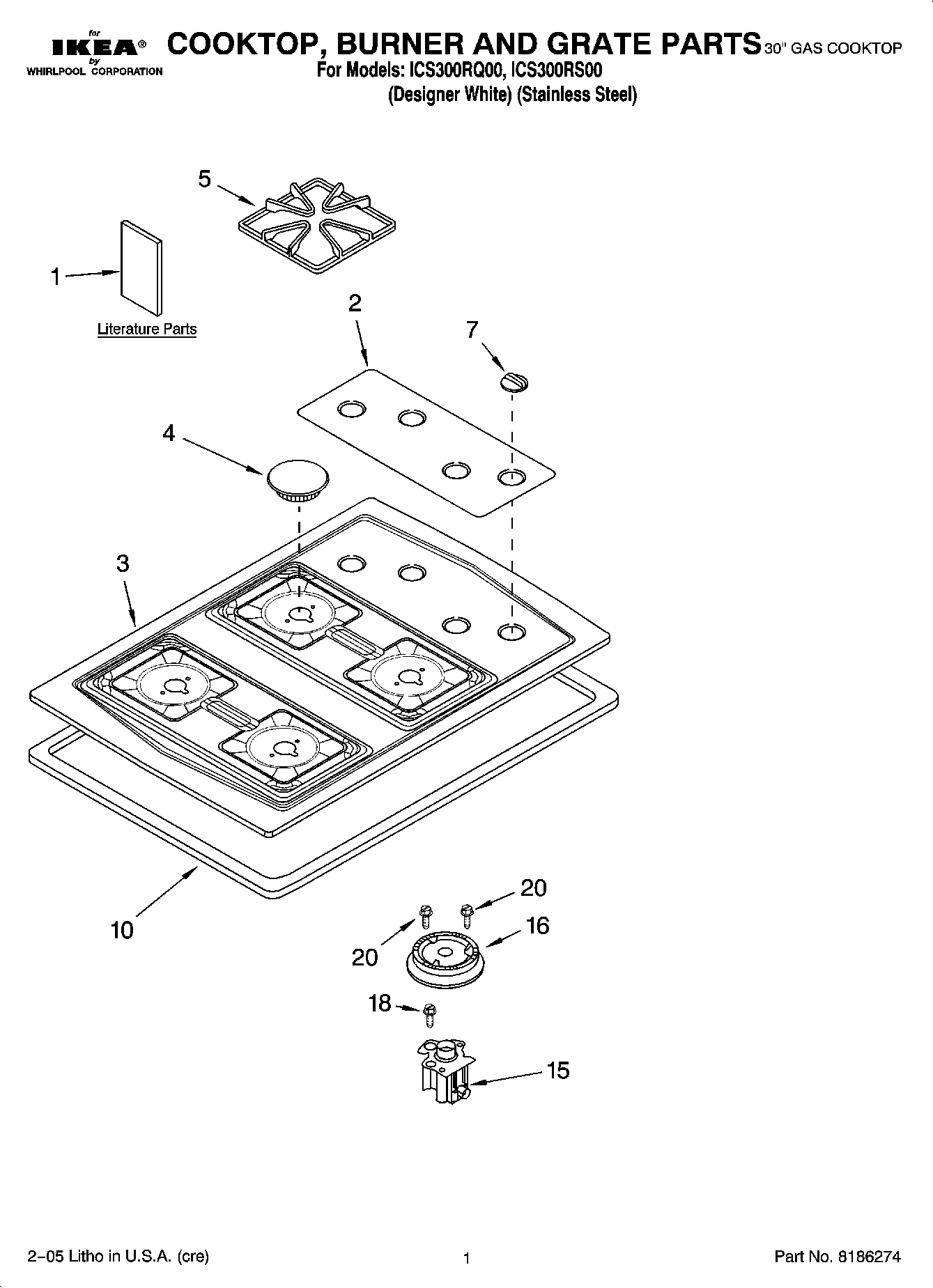

ICS300RS00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	Installation Instructions
1	L.P. Conversion Instructions
1	Use & Care Guide
1	Wiring Diagram
1	Safe Cooking Tips
2	Panel, Control (White)
2	Panel, Control (Stainless)
3	WP3191243 Whirlpool Cooktop Assembly
3	WP3191898 Whirlpool Surface Burner Cap Black
3	WP3191901 Whirlpool Burner Cap
3	WP3191903 Whirlpool Burner Cap
3	Cooktop (Biscuit)
3	6K (1)
3	WP3191905 Whirlpool Burner Cap
3	9.5K (1)
3	WP3191904 Whirlpool Burner Cap
3	12.5K (2)
3	Cap, Burner 6K (1) (Gray)
3	W11230936 Whirlpool Cooktop
5	Grate (4) (Black)
5	Grate (4) (Gray)
7	9758788 Whirlpool Oven Knob
7	Knob, Control (4) (White)
10	9760045 Whirlpool Oven Foam Seal
15	WPW10155785 Whirlpool Orifice Holder
15	WPW10128448 Whirlpool Igniter and Orifice Holder
15	WPW10155784 Whirlpool Orifice Holder
16	9760037 Whirlpool Top Burner
16	WP4455981 Whirlpool Burner Head
16	WP4455979 Whirlpool Range Small Burner Head
18	WP4449809 Whirlpool Screw
20	4456626 Whirlpool Wire
20	4456627 Whirlpool Wire Harness
20	WP3368921 Whirlpool Screw
20	FOLLOWING PARTS NOT ILLUSTRATED
20	Harness, Wire
