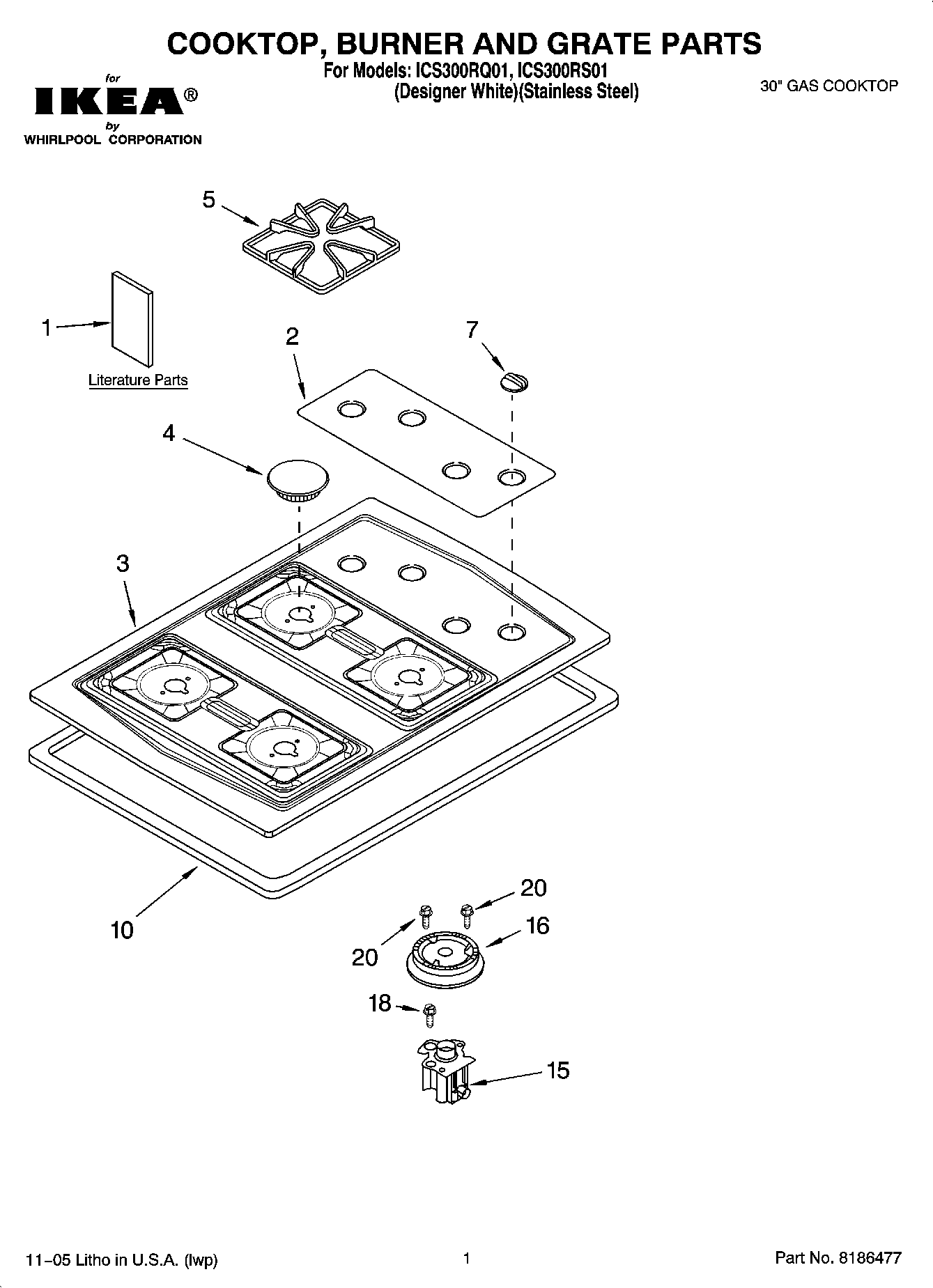

ICS300RS01 01 – COOKTOP, BURNER AND GRATE PARTS

ICS300RS01 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

ICS300RS01 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1Wiring Diagram
1Installation Instructions
1L.P. Conversion Instructions
1Safe Cooking Tips (French)
1Safe Cooking Tips
1Owners Manual Safe Cooking Tips
2Panel, Control (White)
2Panel, Control (Stainless)
3W11230936 Whirlpool Cooktop
3WP3191243 Whirlpool Cooktop Assembly
4Cap, Burner 6K (1) (Gray)
4WP3191898 Whirlpool Surface Burner Cap Black
4WP3191901 Whirlpool Burner Cap
4WP3191903 Whirlpool Burner Cap
4WP3191904 Whirlpool Burner Cap
4WP3191905 Whirlpool Burner Cap
5Grate (4) (Gray)
5Grate (4) (Black)
79758788 Whirlpool Oven Knob
7Knob, Control (4) (White)
109760045 Whirlpool Oven Foam Seal
15WPW10155785 Whirlpool Orifice Holder
15WPW10128448 Whirlpool Igniter and Orifice Holder
15WPW10155784 Whirlpool Orifice Holder
169760037 Whirlpool Top Burner
16WP4455981 Whirlpool Burner Head
16WP4455979 Whirlpool Range Small Burner Head
18WP4449809 Whirlpool Screw
204456626 Whirlpool Wire
204456627 Whirlpool Wire Harness
20WP3368921 Whirlpool Screw
20FOLLOWING PARTS NOT ILLUSTRATED
20Harness, Wire
