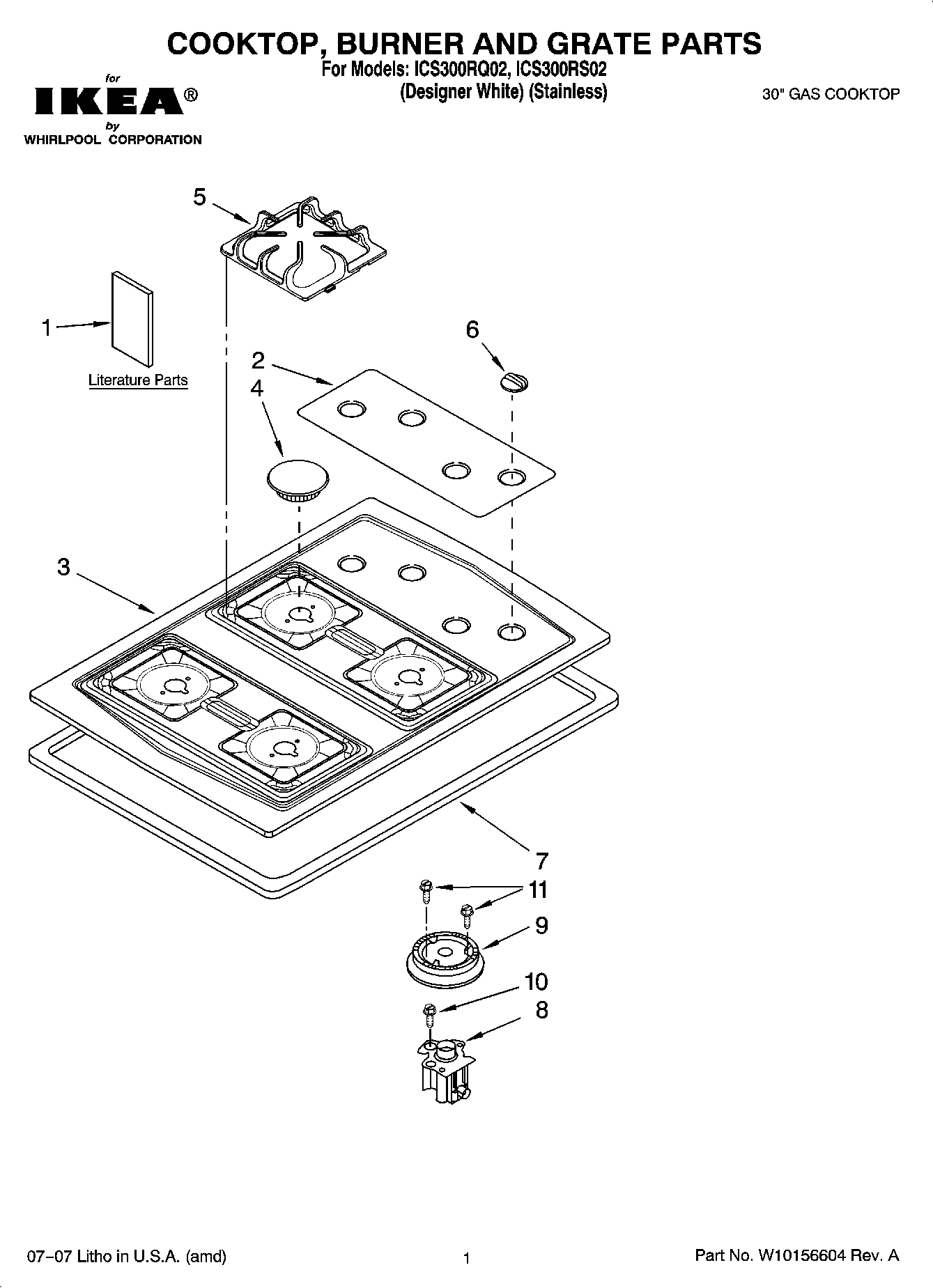

ICS300RS02 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
4456626 Whirlpool Wire
Following Parts Not Illustrated
4456627 Whirlpool Wire Harness
1L.P. Conversion Instructions
1Wiring Diagram
1Owners Manual
1Installation Instructions
1Safe Cooking Tips (French)
1Safe Cooking Tips
2Panel, Control (Stainless)
2Panel, Control (White)
3W11230936 Whirlpool Cooktop
3WP3191243 Whirlpool Cooktop Assembly
4Cap, Burner 6K (1) (Gray)
4WP3191905 Whirlpool Burner Cap
4WP3191904 Whirlpool Burner Cap
4WP3191903 Whirlpool Burner Cap
4WP3191901 Whirlpool Burner Cap
4WP3191898 Whirlpool Surface Burner Cap Black
5Grate (4) (Gray)
5Grate (4) (Black)
69758788 Whirlpool Oven Knob
6Knob, Control (4) (White)
79760045 Whirlpool Oven Foam Seal
8WPW10155785 Whirlpool Orifice Holder
8WPW10128448 Whirlpool Igniter and Orifice Holder
8WPW10155784 Whirlpool Orifice Holder
99760037 Whirlpool Top Burner
9WP4455981 Whirlpool Burner Head
9WP4455979 Whirlpool Range Small Burner Head
10WP4449809 Whirlpool Screw
11WP3368921 Whirlpool Screw
