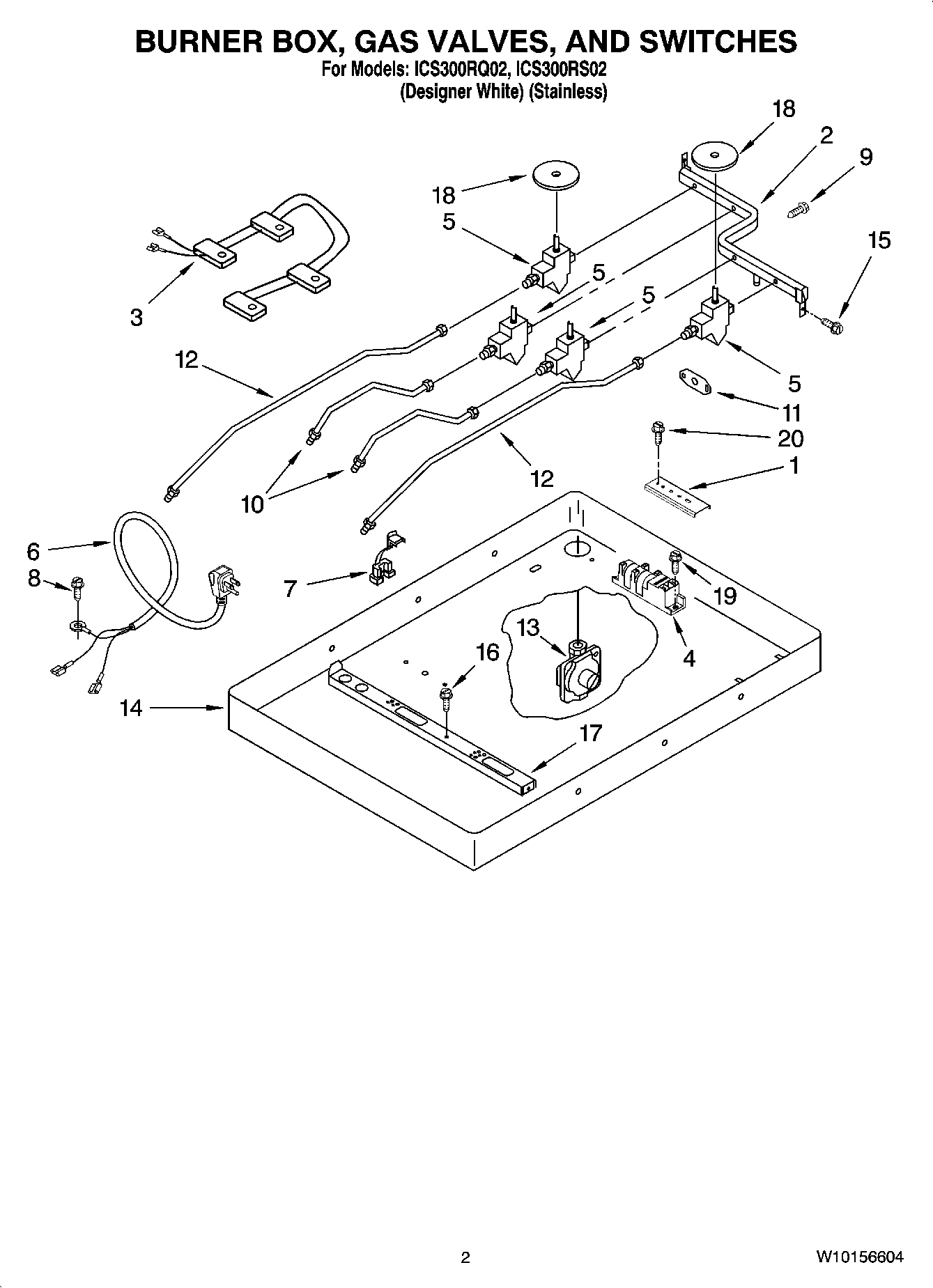

ICS300RS02 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

Position	Product
1	8186533 Whirlpool Hardware
2	9759354 Whirlpool Oven Manifold Pipe
3	WP4456905 Whirlpool Wire Harness
4	WPW10110491 Whirlpool Spark Module
5	WP4456817 Whirlpool Burner Valve
5	WP4456816 Whirlpool Burner Valve
6	W10392007 Whirlpool Power Cord
7	4173634 Whirlpool Bushing
8	WP3177991 Whirlpool Screw
9	WP3186217 Whirlpool Screw
10	Tubing, Burner RR & RF
11	3192491 Whirlpool Support Bracket
12	3191320 Whirlpool Oven Gas Tubing
13	W11170853 Whirlpool Regulator Assembly
14	4456780 Whirlpool Oven Burner Box
15	W10491985 Whirlpool Screw
16	WP4449809 Whirlpool Screw
17	W10203756 Whirlpool Support
18	WP3188425 Whirlpool Seal Switch
19	WP12990527 Whirlpool Microwave Screw
20	WP3400093 Whirlpool Screw
20	WP3192741 Whirlpool LP Conversion Kit
20	Following Parts Not Illustrated and Optional Parts Not Included
