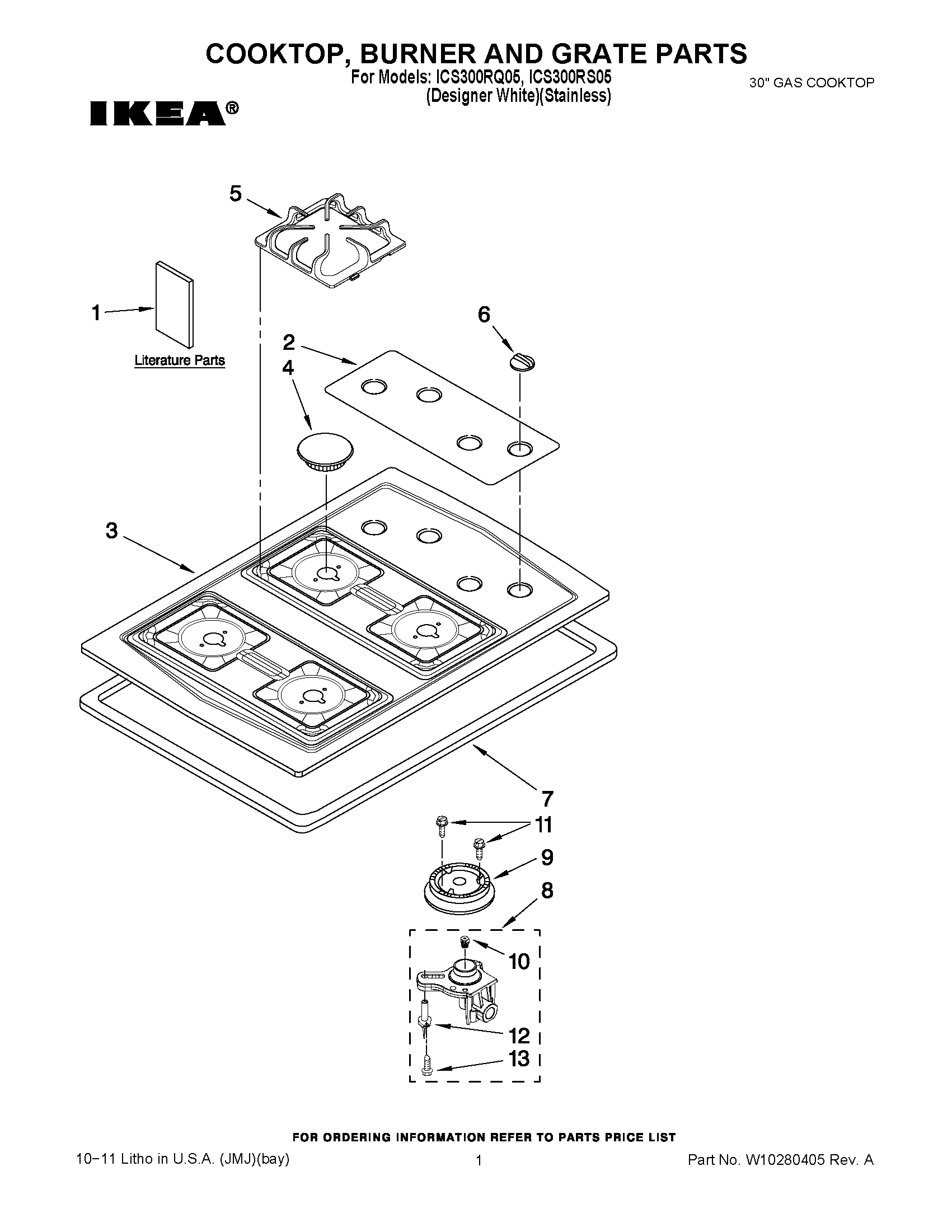

ICS300RS05 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	4456626 Whirlpool Wire
NI	4456627 Whirlpool Wire Harness
1	Owners Manual
1	L.P. Conversion Instructions
1	Wiring Diagram
1	Installation Instructions
1	Safer Cooking Tips (French)
1	SAFER COOKING TIPS (ENGLISH
2	PANEL, CONTROL (STAINLESS)
2	PANEL, CONTROL (WHITE)
3	WP3191243 Whirlpool Cooktop Assembly
3	W11230936 Whirlpool Cooktop
4	WP3191898 Whirlpool Surface Burner Cap Black
4	WP3191901 Whirlpool Burner Cap
4	WP3191904 Whirlpool Burner Cap
4	WP3191905 Whirlpool Burner Cap
4	Cap, Burner 6K (1) (Gray)
4	WP3191903 Whirlpool Burner Cap
5	Grate (4) (Black)
5	Grate (4) (Gray)
6	9758788 Whirlpool Oven Knob
6	Knob, Control (4) (White)
7	9760045 Whirlpool Oven Foam Seal
8	WPW10155785 Whirlpool Orifice Holder
8	WPW10155784 Whirlpool Orifice Holder
8	WPW10128448 Whirlpool Igniter and Orifice Holder
9	WP4455981 Whirlpool Burner Head
9	WP4455979 Whirlpool Range Small Burner Head
9	9760037 Whirlpool Top Burner
10	WP3192523 Whirlpool Orifice
10	WP9753930 Whirlpool Orifice
10	WP3192529 Whirlpool Orifice Assembly
11	WP3368921 Whirlpool Screw
12	WP9782116 Whirlpool Surface Igniter
13	WP8273062 Whirlpool Screw
