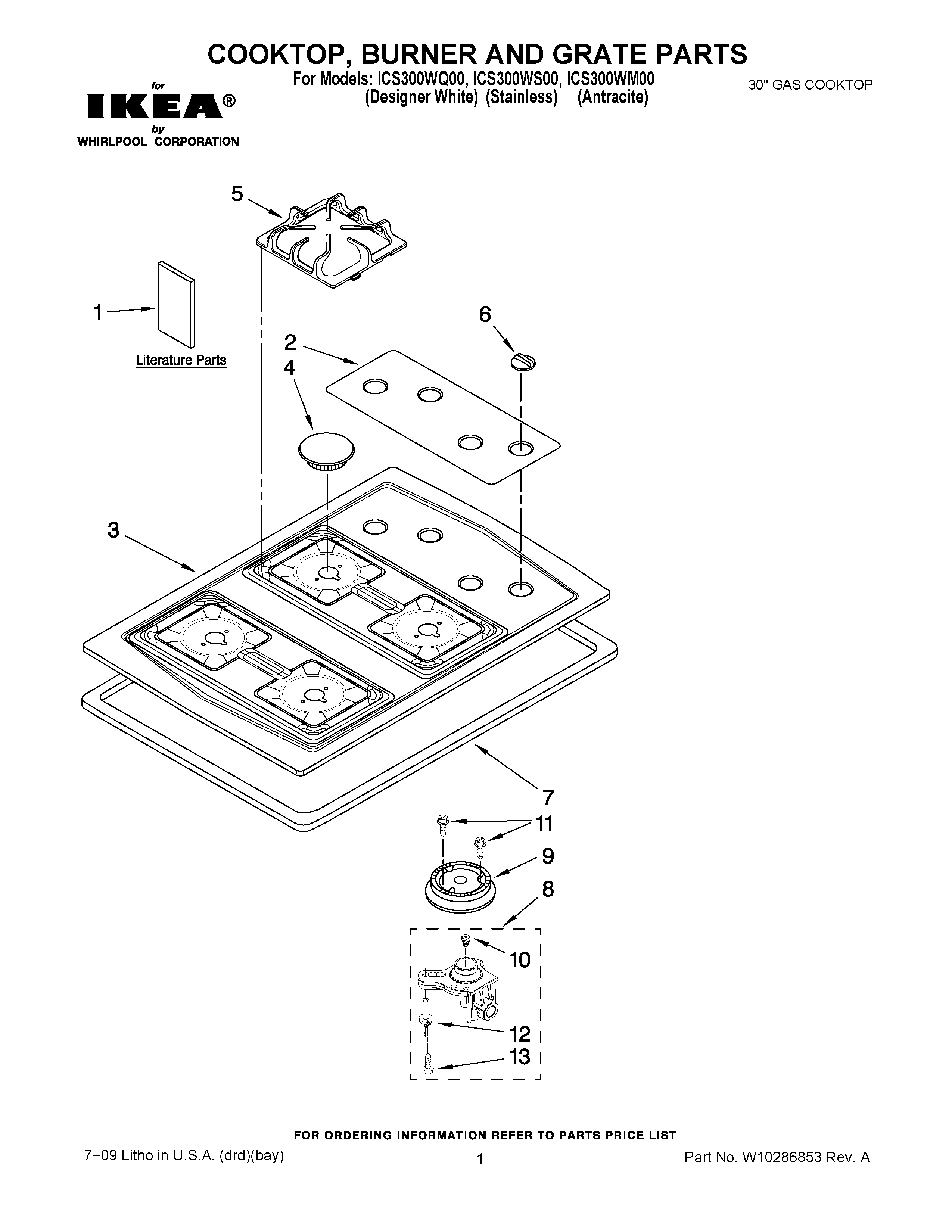

ICS300WS00 01 – COOKTOP, BURNER AND GRATE PARTS

ICS300WS00 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

ICS300WS00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NI4456626 Whirlpool Wire
NI4456627 Whirlpool Wire Harness
1L.P. Conversion Instructions
1Wiring Diagram
1INSTALLATION/UNDERCOUNTER
1Installation Instructions
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
1OWNERS MANUAL
2PANEL, CONTROL (WHITE)
2PANEL, CONTROL (STAINLESS)
2PANEL, CONTROL (ANTRACITE)
3COOKTOP (ANTRACITE)
3WP3191243 Whirlpool Cooktop Assembly
3W11230936 Whirlpool Cooktop
4WP3191901 Whirlpool Burner Cap
4WP3191903 Whirlpool Burner Cap
4WP3191904 Whirlpool Burner Cap
4WP3191905 Whirlpool Burner Cap
4Cap, Burner 6K (1) (Gray)
4WP3191898 Whirlpool Surface Burner Cap Black
5Grate (4) (Black)
5Grate (4) (Gray)
69758788 Whirlpool Oven Knob
6Knob, Control (4) (White)
6KNOB, CONTROL (4) (ANTRACITE MODEL)
79760045 Whirlpool Oven Foam Seal
8WPW10155785 Whirlpool Orifice Holder
8WPW10128448 Whirlpool Igniter and Orifice Holder
8WPW10155784 Whirlpool Orifice Holder
99760037 Whirlpool Top Burner
9WP4455979 Whirlpool Range Small Burner Head
9WP4455981 Whirlpool Burner Head
10WP9753930 Whirlpool Orifice
10WP3192523 Whirlpool Orifice
10WP3192529 Whirlpool Orifice Assembly
11WP3368921 Whirlpool Screw
12WP9782116 Whirlpool Surface Igniter
13WP8273062 Whirlpool Screw
