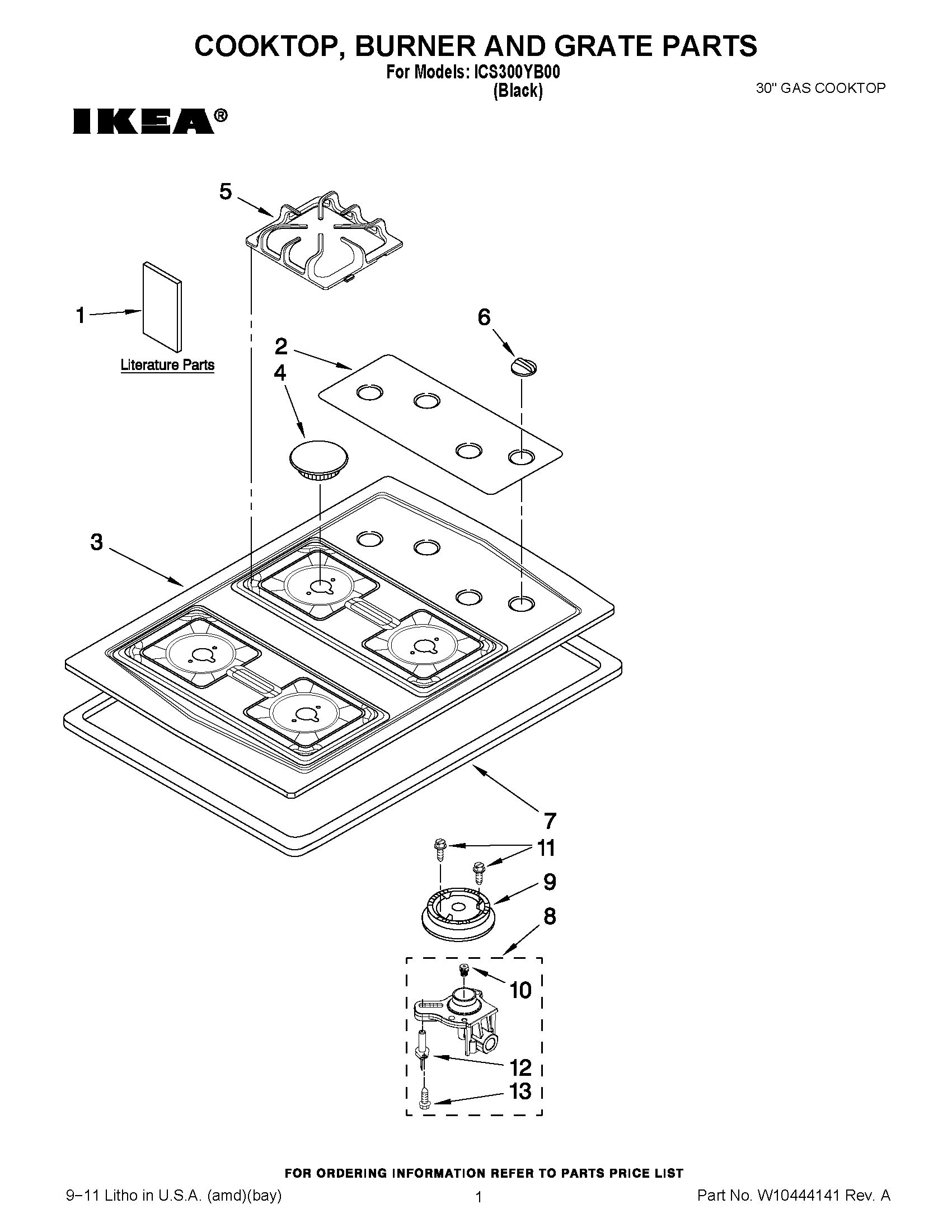

ICS300YB00 01 – COOKTOP, BURNER AND GRATE PARTS

ICS300YB00 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

ICS300YB00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NI4456626 Whirlpool Wire
NIWIRE, HV FRONT 750MM
1SAFER COOKING TIPS (ENGLISH
1Installation Instructions
1Wiring Diagram
1L.P. Conversion Instructions
1INSTALLATION/UNDERCOUNTER
1OWNERS MANUAL
1Safer Cooking Tips (French)
2PANEL, CONTROL
3WP3191242 Whirlpool Cooktop
4WP3191898 Whirlpool Surface Burner Cap Black
4WP3191901 Whirlpool Burner Cap
4WP3191904 Whirlpool Burner Cap
5Grate (4) (Black)
6KNOB, CONTROL (4) (ANTRACITE MODEL)
79760045 Whirlpool Oven Foam Seal
8WPW10155785 Whirlpool Orifice Holder
8WPW10155784 Whirlpool Orifice Holder
8WPW10128448 Whirlpool Igniter and Orifice Holder
9WP4455979 Whirlpool Range Small Burner Head
9WP4455981 Whirlpool Burner Head
99760037 Whirlpool Top Burner
10WP3192529 Whirlpool Orifice Assembly
10WP3192523 Whirlpool Orifice
10WP9753930 Whirlpool Orifice
11WP3368921 Whirlpool Screw
12WP9782116 Whirlpool Surface Igniter
13WP8273062 Whirlpool Screw
