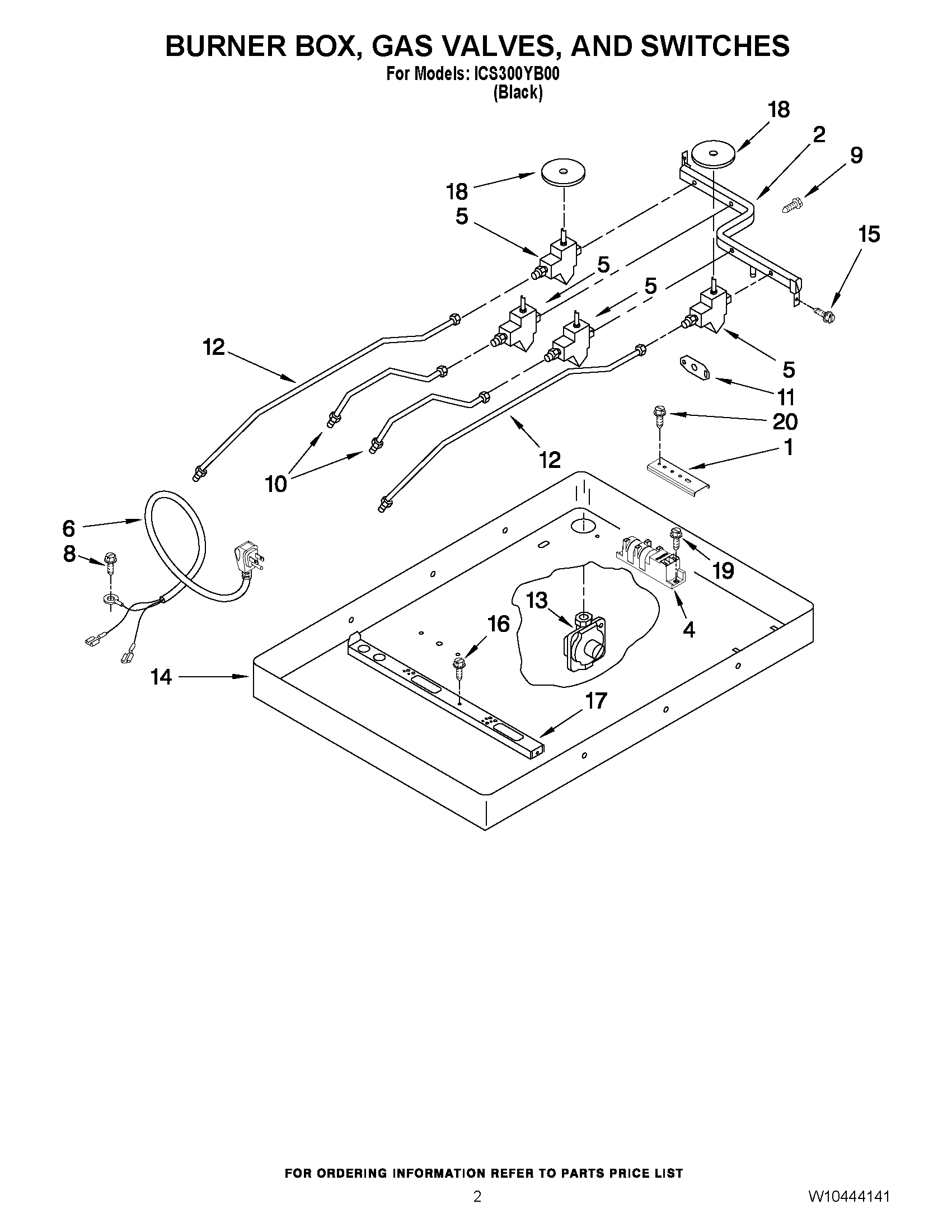

ICS300YB00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

ICS300YB00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

ICS300YB00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NIWP3192741 Whirlpool LP Conversion Kit
NIWP4456905 Whirlpool Wire Harness
NIW10132200 Whirlpool Strain Relief
18186533 Whirlpool Hardware
29759354 Whirlpool Oven Manifold Pipe
4WPW10110491 Whirlpool Spark Module
5WP4456816 Whirlpool Burner Valve
5WP4456817 Whirlpool Burner Valve
6W10392007 Whirlpool Power Cord
8WP3177991 Whirlpool Screw
9BOLT, VALVE (4)
10Tubing, Burner RR & RF
118286858 Whirlpool Cover Plate
123191320 Whirlpool Oven Gas Tubing
13W11170853 Whirlpool Regulator Assembly
144456780 Whirlpool Oven Burner Box
15WP3400806 Whirlpool Screw
16SCREW
17W10203756 Whirlpool Support
18WP3188425 Whirlpool Seal Switch
19WP12990527 Whirlpool Microwave Screw
20WP3400093 Whirlpool Screw
