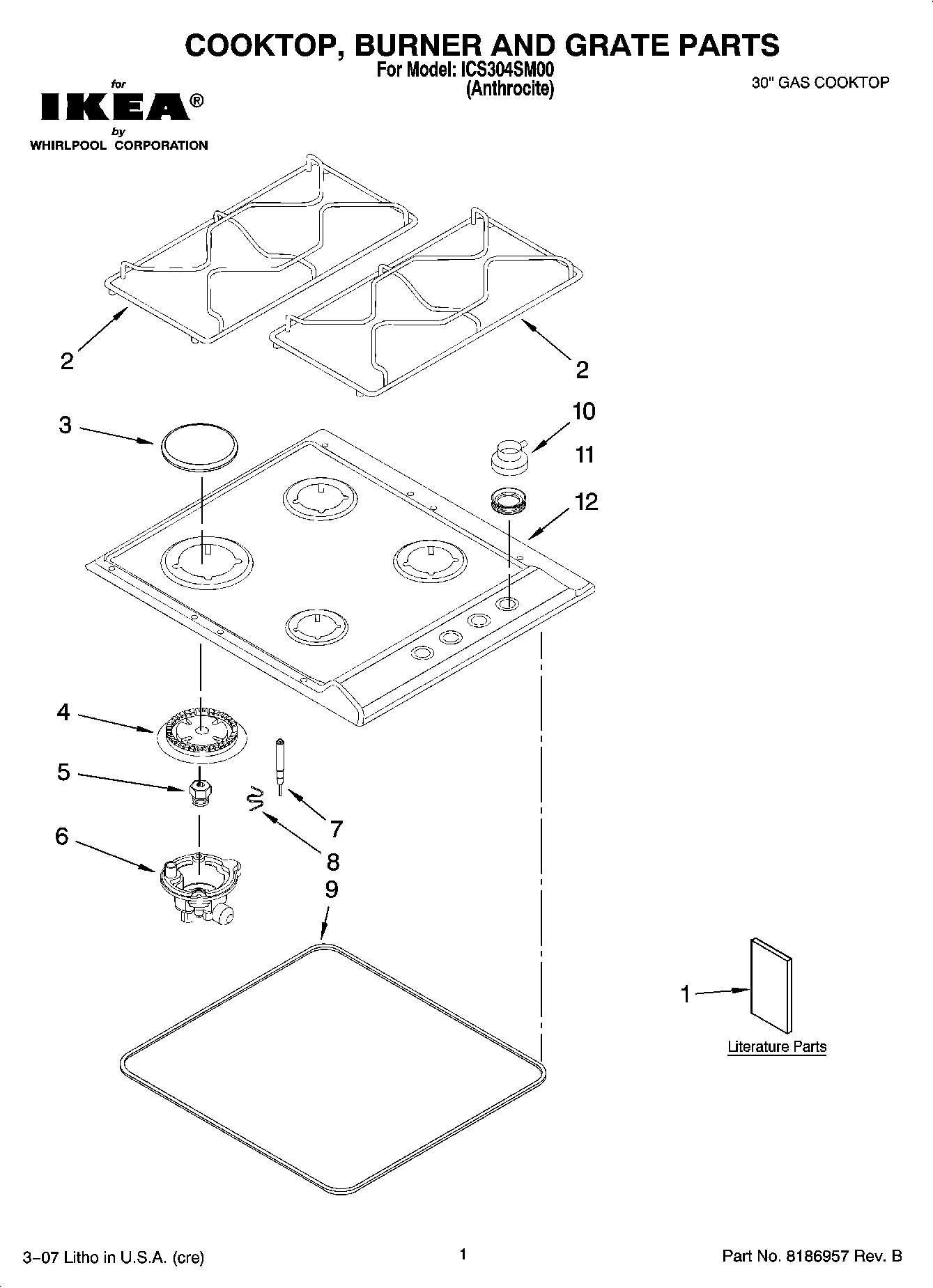

ICS304SM00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1Installation Instructions
1Use & Care Guide
1LP Conv.Instr.
2Grate
3Cap, Burner (LF)
3Cap, Burner (LR, RR)
3Cap, Burner (RF)
4Head, Burner (RF)
4HEAD, BURNER (LR,RR)
4Head, Burner (LF)
5Orifice (Natural)
5Orifice (LP)
6Holder, Orifice (LF)
6HOLDER, ORIFICE (LR,RR)
6Holder, Orifice (RF)
7Element, Broil
8SPRING
9Seal, Foam
10KNOB
11Gasket, Knob
12Cooktop, Glass
