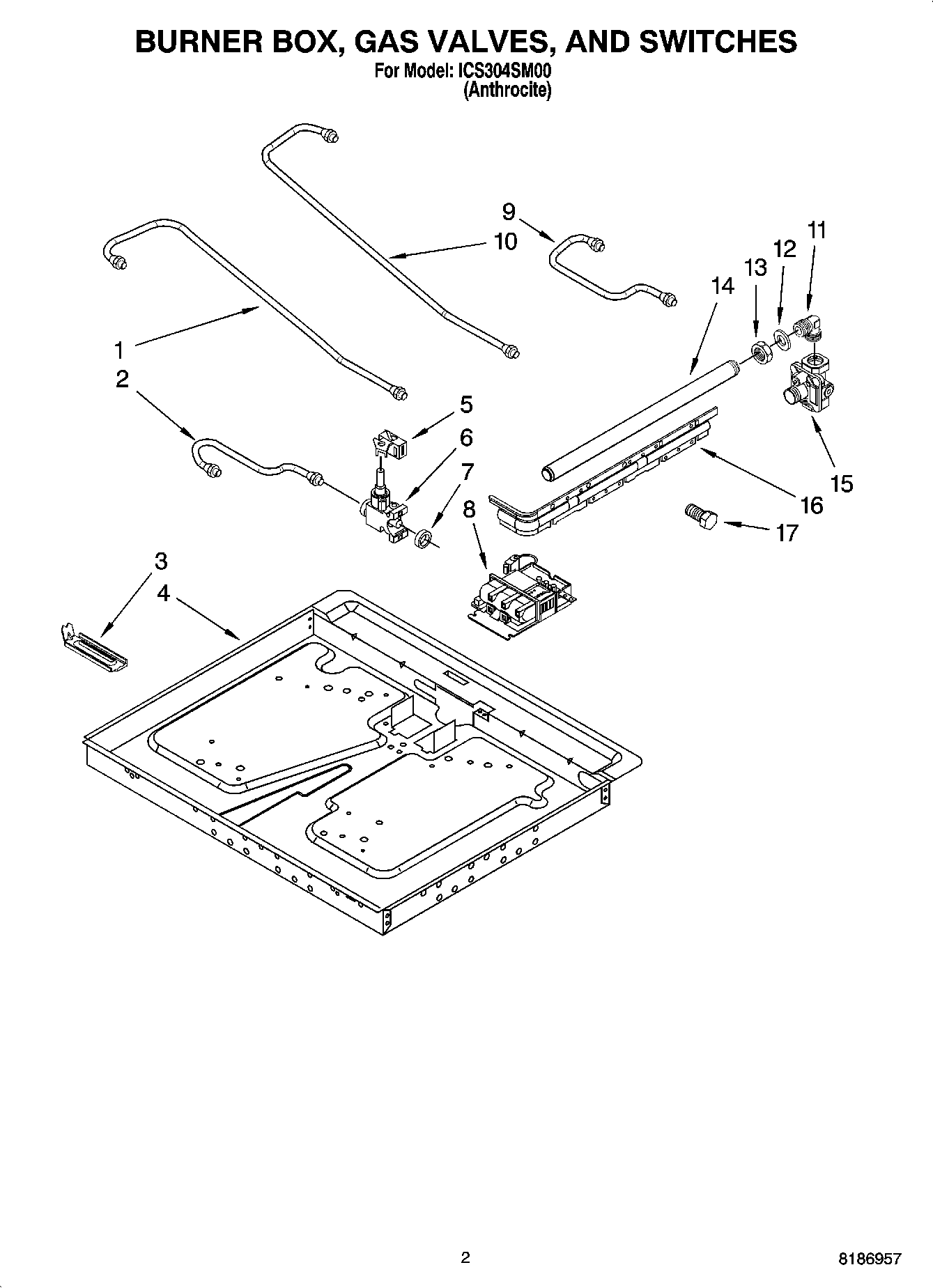

ICS304SM00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1Tubing, LF
2Tubing, RF
3Bracket, Mtg
4Box, Burner (Not Serviced)
5IGNITION,ELEC.
6Valve, Gas (LF)
6Valve, Gas (RF)
6VALVE, GAS (LR,RR)
7Ring, Gasket
8Block, Terminal
9Tubing, RR
10Tubing, LR
11Elbow Pipe, Manfld
12Ring, Gasket
13Nut (Not Serviced)
14Pipe, Manifold (Not Serviced)
158186962 Whirlpool Oven Regulator
16Bracket, Manifold (Not Serviced)
17Bolt, Gas Valve (Not Serviced)
