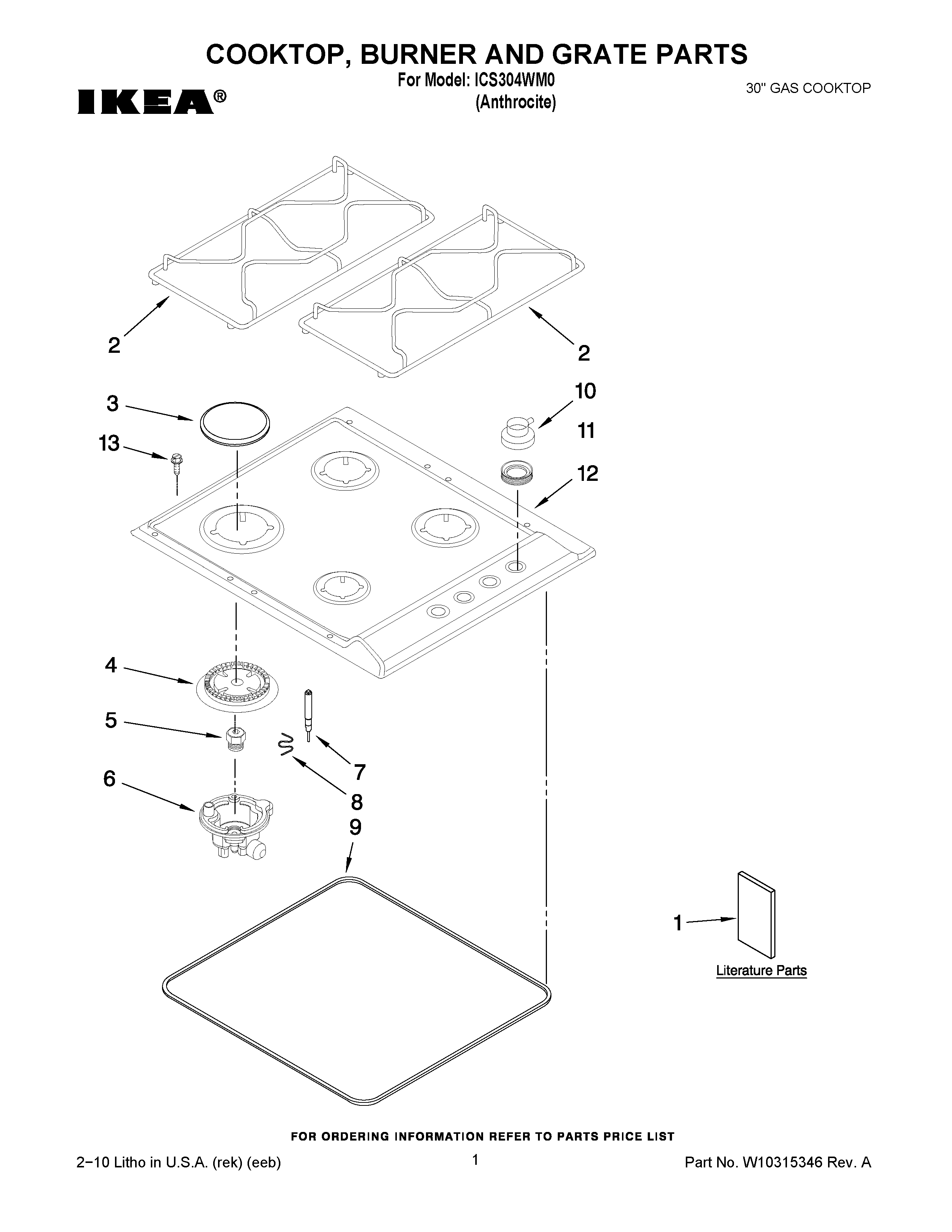

ICS304WM0 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1Installation Instructions
1LP CONV.INSTR.
1USE & CARE GUIDE
2Grate
3Cap, Burner (LF)
3Cap, Burner (LR, RR)
3Cap, Burner (RF)
4Head, Burner (RF)
4HEAD, BURNER (LR,RR)
4Head, Burner (LF)
5Orifice (Natural)
5Orifice (LP)
6Holder, Orifice (LF)
6Holder, Orifice (RF)
6HOLDER, ORIFICE (LR,RR)
7Element, Broil
8SPRING
9SEAL, FOAM
10KNOB
11Gasket, Knob
12COOKTOP, GLASS
13SCREW
