ICS306RS01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

ICS306RS01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

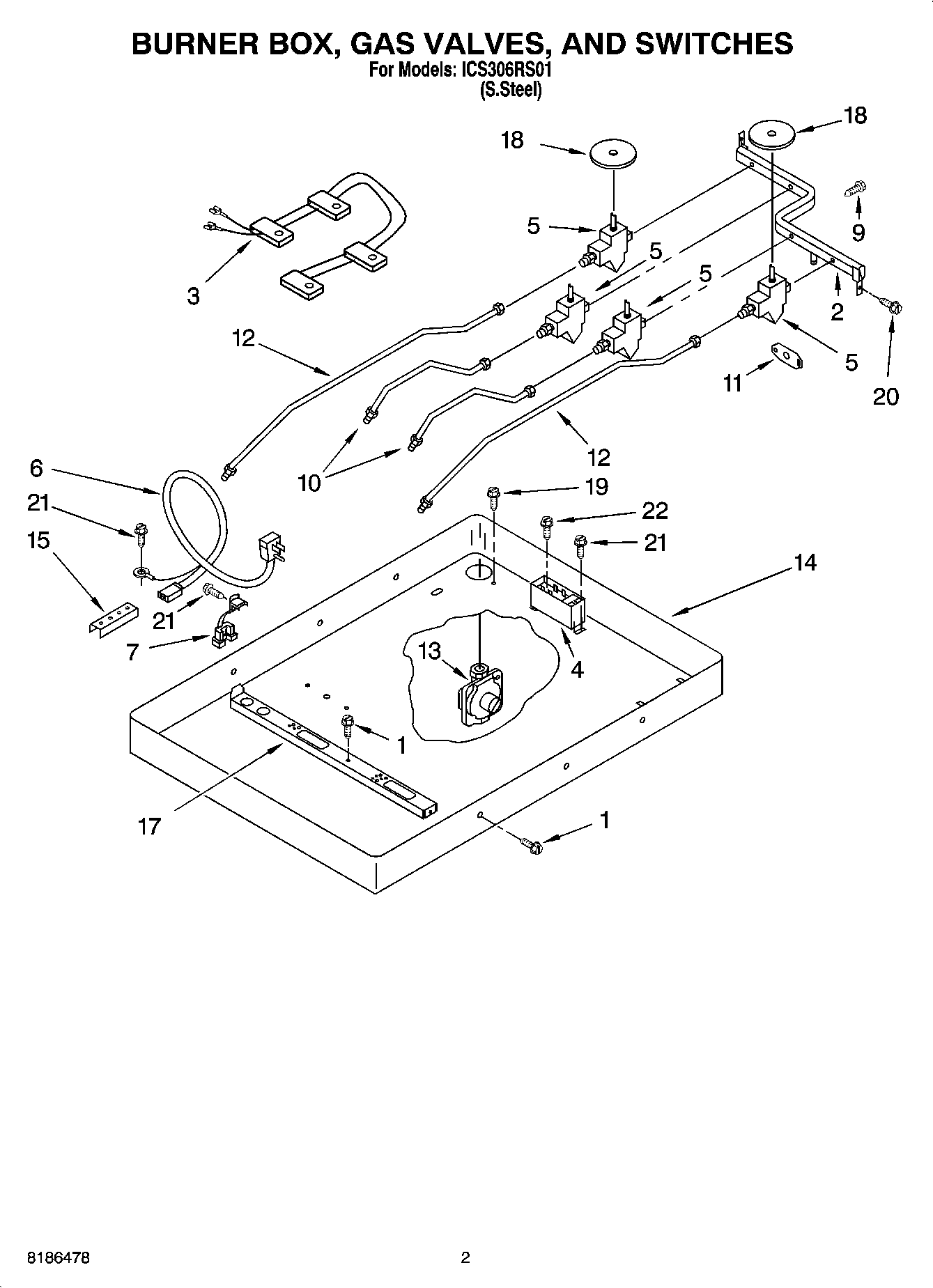

ICS306RS01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1WP4449809 Whirlpool Screw
29759354 Whirlpool Oven Manifold Pipe
3WP4456905 Whirlpool Wire Harness
4WPW10110491 Whirlpool Spark Module
5WP4456817 Whirlpool Burner Valve
5WP4456816 Whirlpool Burner Valve
6W10392007 Whirlpool Power Cord
74173634 Whirlpool Bushing
9WP3186217 Whirlpool Screw
10Tubing, Burner RR & RF
113192491 Whirlpool Support Bracket
12Tubing, Burner LR & LF
13Regulator, Pressure
14Box, Burner
158186533 Whirlpool Hardware
17W10203756 Whirlpool Support
18WP3188425 Whirlpool Seal Switch
19WP3196557 Whirlpool Screw
20W10491985 Whirlpool Screw
21WP3177991 Whirlpool Screw
22Gas Conversion Kit (Natural Gas To LP Gas)
22WP3192741 Whirlpool LP Conversion Kit
22Hardware Kit (Mounting)
22WP12990527 Whirlpool Microwave Screw
22Following Parts Not Illustrated and Optional Parts Not Included
