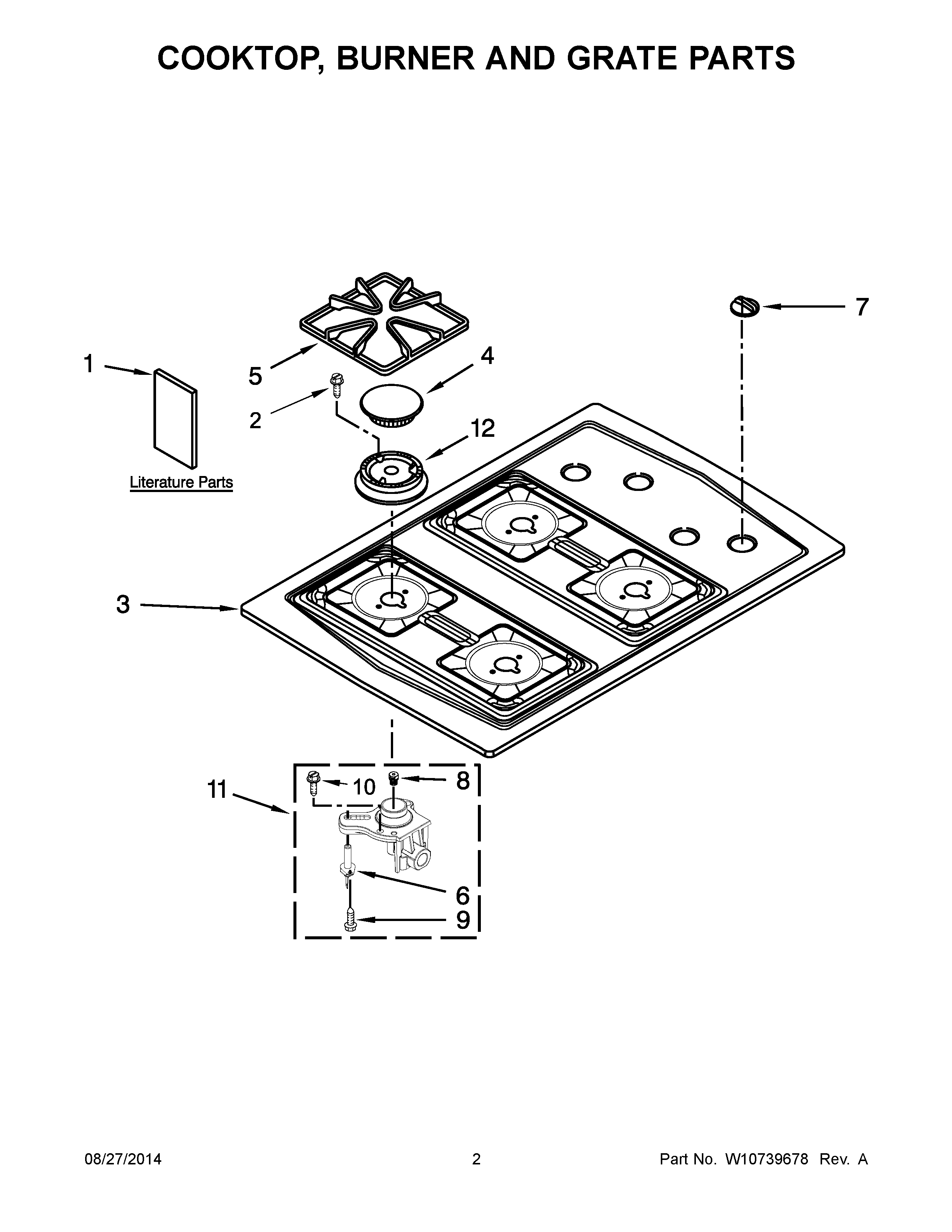

ICS333DS00 02 – COOKTOP, BURNER AND GRATE PARTS

ICS333DS00 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

ICS333DS00 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NI4456626 Whirlpool Wire
NI4456627 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
1CL.P. Conversion Instructions
1BInstallation Instructions (Undercounter Oven)
1Wiring Diagram
1DOWNERS MANUAL
1FSafer Cooking Tips (French)
1ESAFER COOKING TIPS (ENGLISH
1AINSTRUCTIONS, INSTALLATION
2WP3368921 Whirlpool Screw
3W11230936 Whirlpool Cooktop
4WPW10218223 Whirlpool Burner Cap
5WPW10268483 Whirlpool Grate Kit
6WP9782116 Whirlpool Surface Igniter
7W10696074 Whirlpool Knob Assembly
8AWP3192523 Whirlpool Orifice
88286473 Whirlpool Oven Orifice
8BWP9753929 Whirlpool Orifice
9WP4449809 Whirlpool Screw
10WP8273062 Whirlpool Screw
11WPW10128449 Whirlpool Orifice Holder
11BW10268479 Whirlpool Orifice Holder
11AW10268478 Whirlpool Orifice Holder
12AWPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
12WPW10406243 Whirlpool Burner Head Auxiliary 6K
