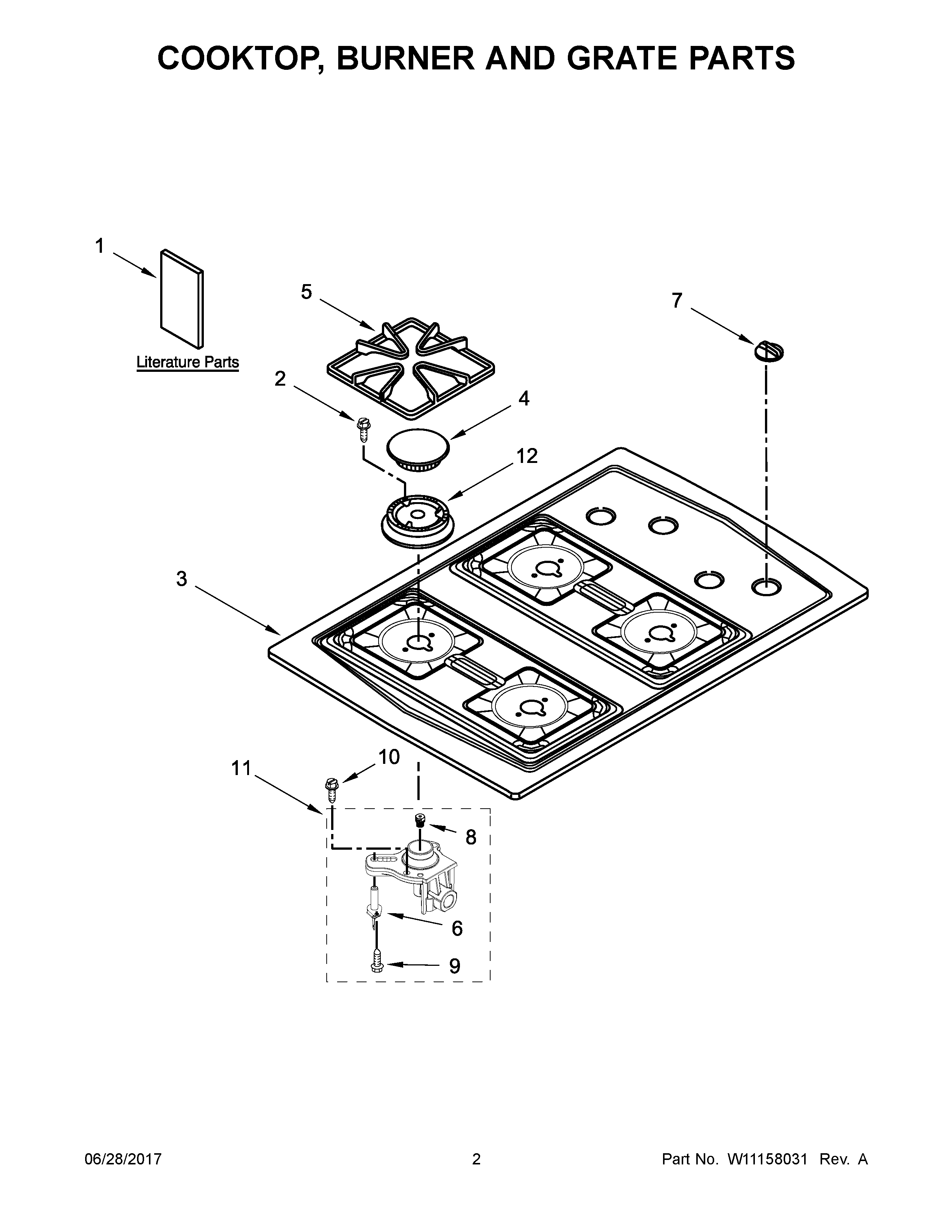

ICS333DS01 02 – COOKTOP, BURNER AND GRATE PARTS

ICS333DS01 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

ICS333DS01 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NI4173634 Whirlpool Bushing
NICABINET (NOT A SERVICEABLE PART)
NIWP8286320 Whirlpool Spud Orifice
1INSTRUCTIONS, INSTALLATION
1COWNERS MANUAL
1BL.P. Conversion Instructions
1AInstallation Instructions (Undercounter Oven)
2WP3368921 Whirlpool Screw
3W11230936 Whirlpool Cooktop
4WPW10218223 Whirlpool Burner Cap
5WPW10268483 Whirlpool Grate Kit
6AW11134295 Whirlpool Surface Igniter
6W11134296 Whirlpool Surface Igniter
7W10696074 Whirlpool Knob Assembly
8B8286473 Whirlpool Oven Orifice
8AWP3192523 Whirlpool Orifice
8WP9753929 Whirlpool Orifice
9WP8273062 Whirlpool Screw
10SCREW
11W11134301 Whirlpool Orifice Holder
11BW11134303 Whirlpool Orifice Holder
11CW11134304 Whirlpool Holder Orifice
11AW11134302 Whirlpool Orifice Holder
12WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
12AWPW10406243 Whirlpool Burner Head Auxiliary 6K
