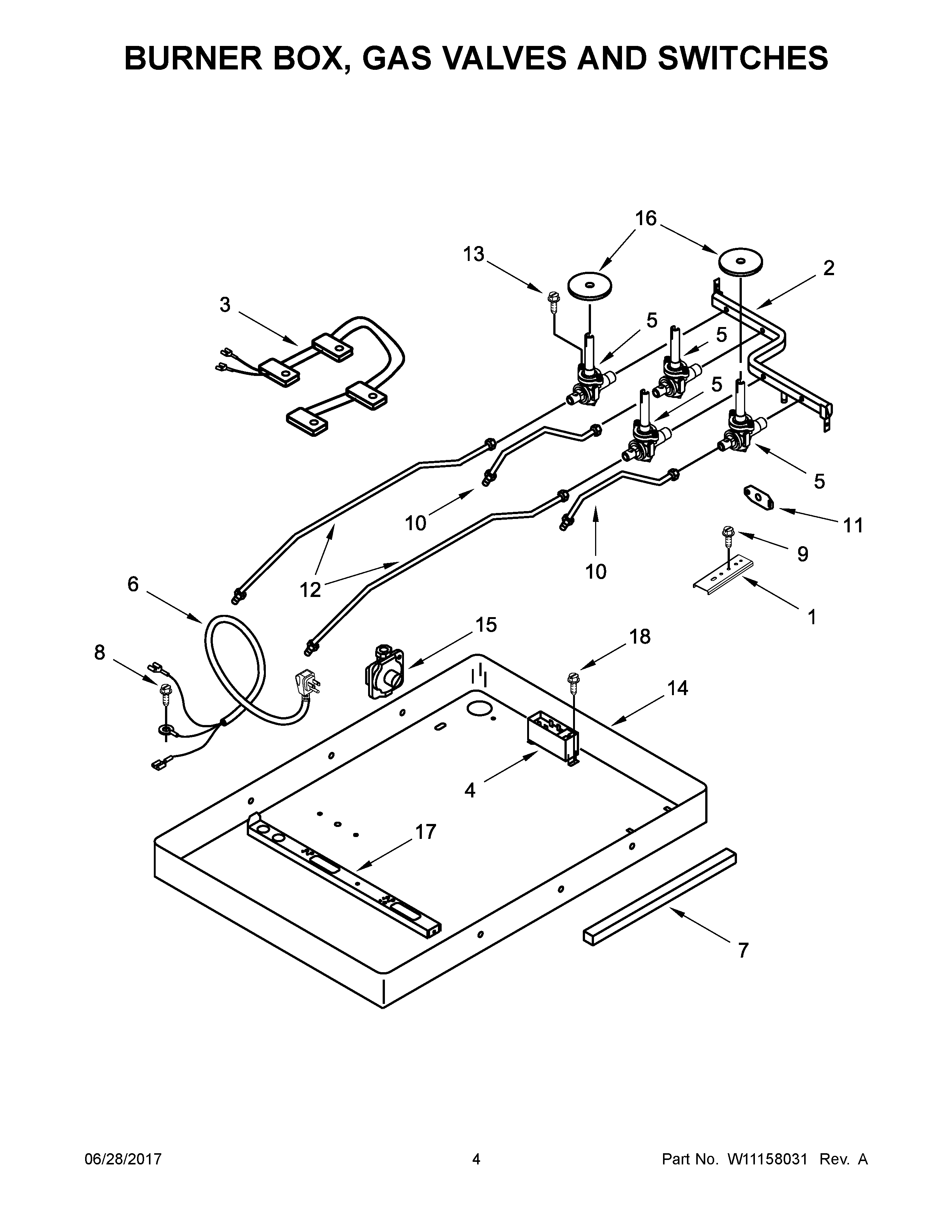

ICS333DS01 03 – BURNER BOX, GAS VALVES AND SWITCHES

Products

PositionProduct
18186533 Whirlpool Hardware
29759354 Whirlpool Oven Manifold Pipe
3WP4456905 Whirlpool Wire Harness
4WPW10110491 Whirlpool Spark Module
5WP4456817 Whirlpool Burner Valve
5AWP4456816 Whirlpool Burner Valve
6W10392007 Whirlpool Power Cord
79760045 Whirlpool Oven Foam Seal
8BOLT, VALVE (4)
9WP3400093 Whirlpool Screw
10Tubing, Burner RR & RF
118286858 Whirlpool Cover Plate
123191320 Whirlpool Oven Gas Tubing
13SCREW
144456780 Whirlpool Oven Burner Box
15W11170853 Whirlpool Regulator Assembly
16WP3188425 Whirlpool Seal Switch
17W10203756 Whirlpool Support
18SCREW
