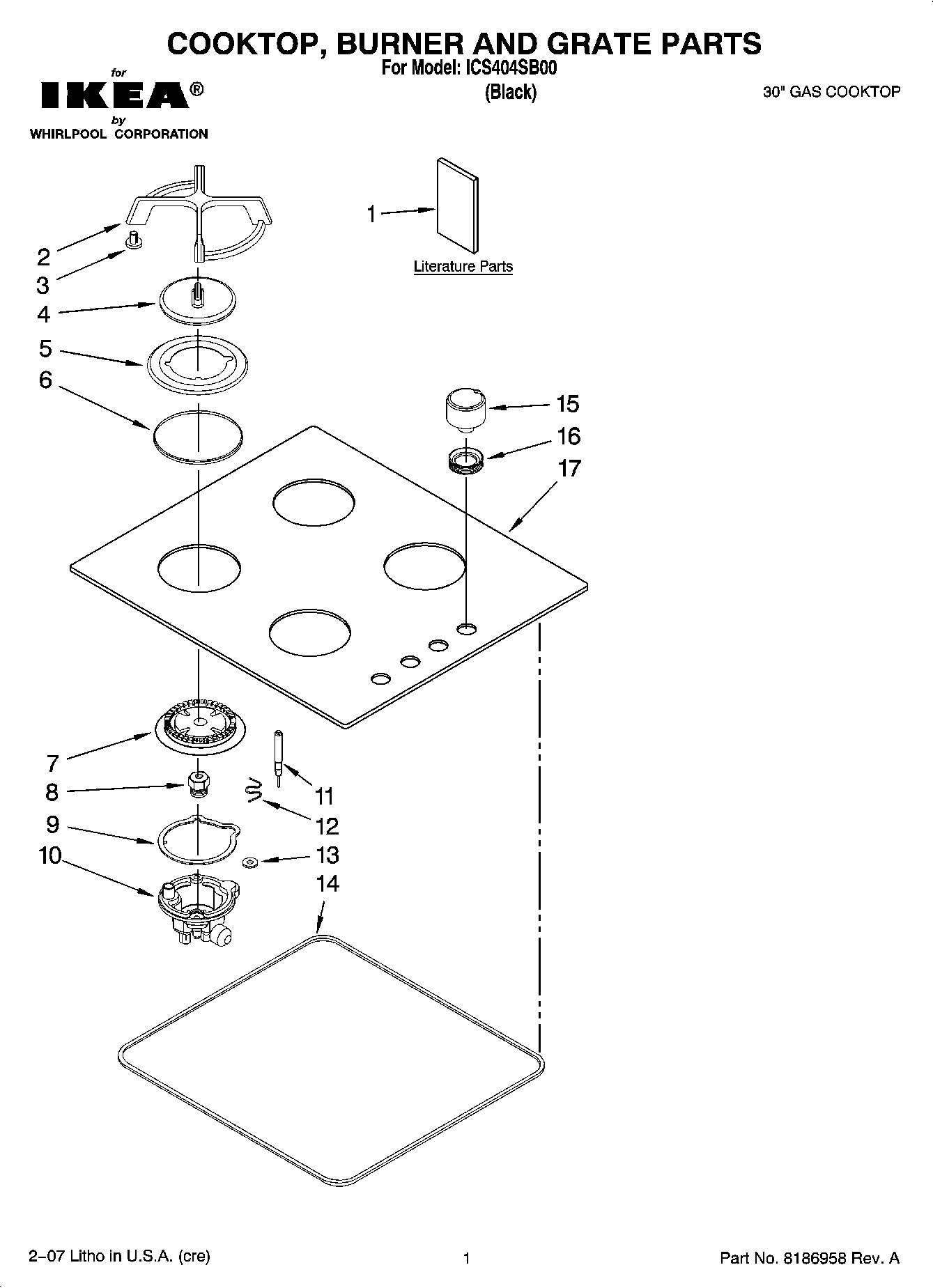

ICS404SB00 01 – COOKTOP, BURNER AND GRATE PARTS

ICS404SB00 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

ICS404SB00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1LP Conv.Instr.
1Use & Care Guide
1Installation Instructions
2Grate
3Bumper, Grate
4CAP, BURNER (LR,RR)
4Cap, Burner (LF)
4Cap, Burner (RF)
5RING (LR,RR)
5Ring (RF)
5Ring (LF)
6Gasket (Center/Right)
7HEAD, BURNER (LR,RR)
7Head, Burner (LF)
7Head, Burner (RF)
8Orifice (Natural)
8Orifice (LP)
9Gasket (RF)
9Gasket (LR, RR)
9Gasket (LF)
10Holder, Orifice (RF)
10Holder, Orifice (LF)
10HOLDER, ORIFICE (LR,RR)
11Element, Broil
12SPRING
13GASKET, TOP PANEL
14Seal, Foam
15KNOB
16Gasket, Knob
17Cooktop, Glass
