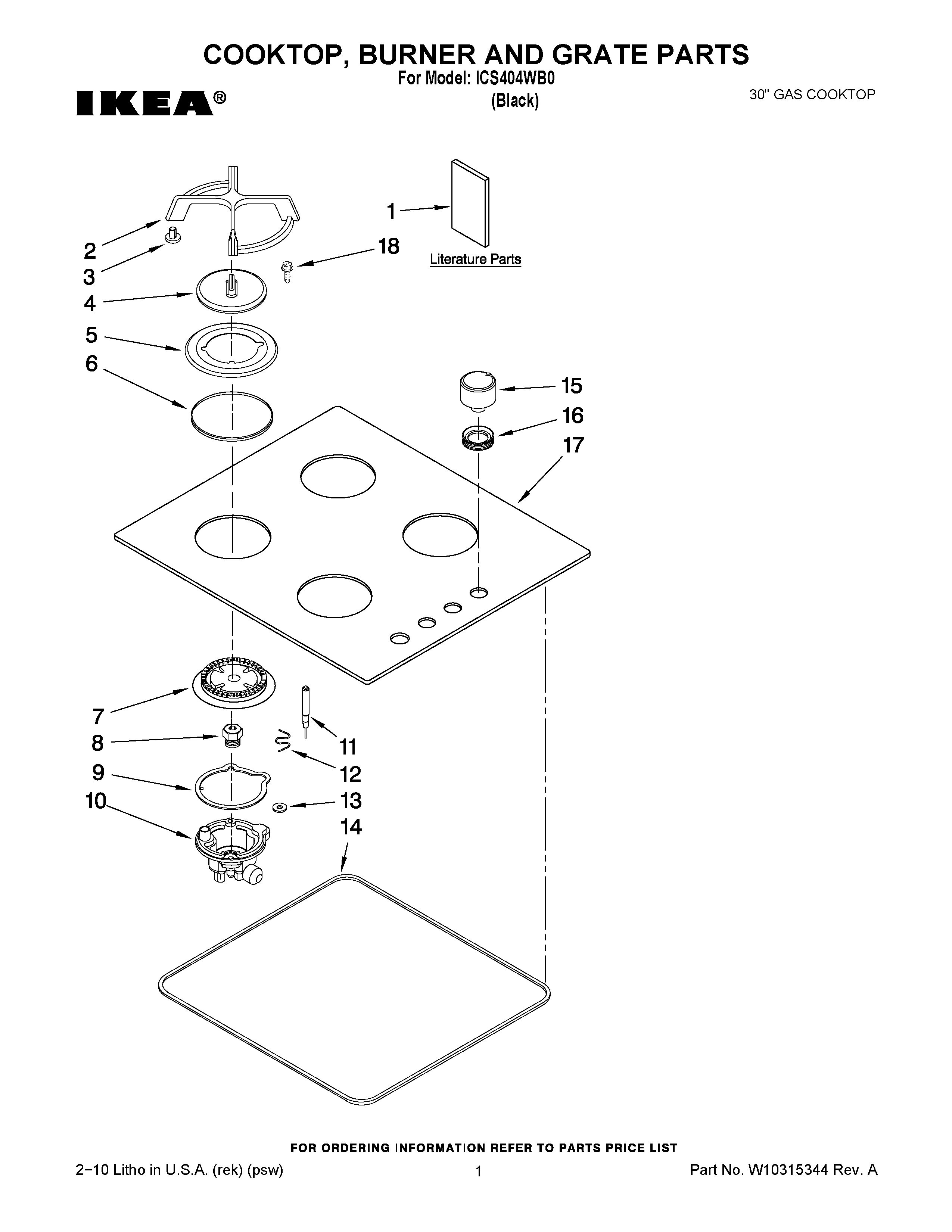

ICS404WB0 01 – COOKTOP, BURNER AND GRATE PARTS

ICS404WB0 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

ICS404WB0 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1USE & CARE GUIDE
1LP CONV.INSTR.
1Installation Instructions
2Grate
3Bumper, Grate
4Cap, Burner (LF)
4Cap, Burner (RF)
4CAP, BURNER (LR,RR)
5Ring (RF)
5RING (LR,RR)
5Ring (LF)
6Gasket (Center/Right)
7HEAD, BURNER (LR,RR)
7Head, Burner (LF)
7Head, Burner (RF)
8Orifice (Natural)
8Orifice (LP)
9GASKET (LF)
9GASKET (LR,RR)
9GASKET (RF)
10HOLDER, ORIFICE (LR,RR)
10Holder, Orifice (LF)
10Holder, Orifice (RF)
11Element, Broil
12SPRING
13GASKET, TOP PANEL
14WPW10237005 Whirlpool Cooktop Gasket
15KNOB
16Gasket, Knob
17COOKTOP, GLASS
18SCREW
