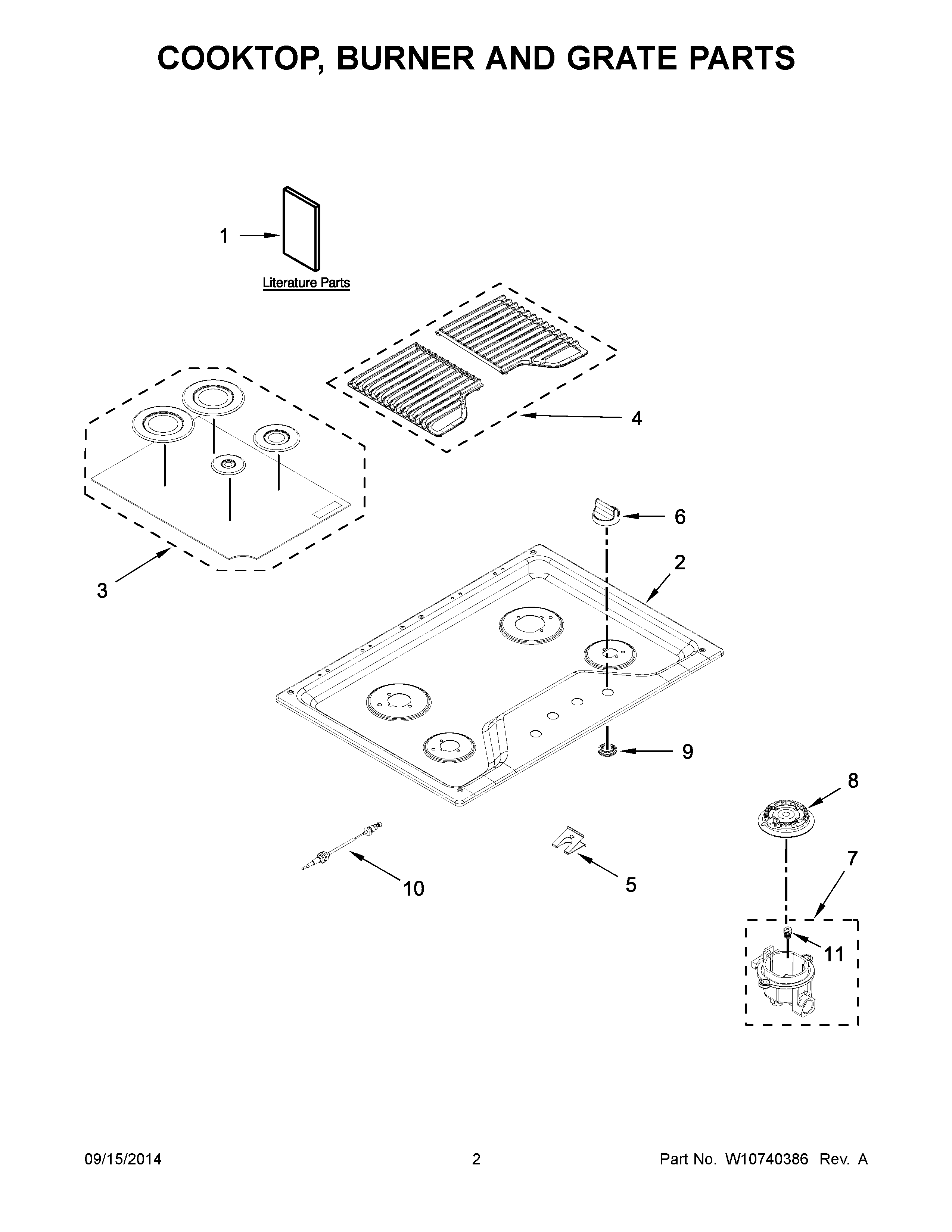

ICS500DS00 02 – COOKTOP, BURNER AND GRATE PARTS

ICS500DS00 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

ICS500DS00 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1CSAFER COOKING TIPS (ENGLISH
1DSafer Cooking Tips (French)
1BUSE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
1AUNDERCOUNTER INSTALL INSTRUCTIONS
2W10675918 Whirlpool Cooktop
3WPW10597129 Whirlpool Burner Cap
4W11104042 Whirlpool Grate Kit
58286863 Whirlpool Oven Clip
6W11190813 Whirlpool Knob
7W10594399 Whirlpool Orifice Holder
7AW10609591 Whirlpool Orifice Holder
7BW10594402 Whirlpool Orifice Holder
7CW10597159 Whirlpool Orifice Holder
8BWP8286814 Whirlpool Burner Head
8AWP8286815 Whirlpool Burner Head
8WP8286813 Whirlpool Burner Head
9W11206740 Whirlpool Grommet
10W11507531 Whirlpool Surface Igniter Assembly
10AW11507532 Whirlpool Surface Igniter
11W10791082 Whirlpool Spud Orifice
11BW10652710 Whirlpool Orifice Spud
11CW10791079 Whirlpool Orifice Spud
11AW10791073 Whirlpool Gas Orifice Spud
