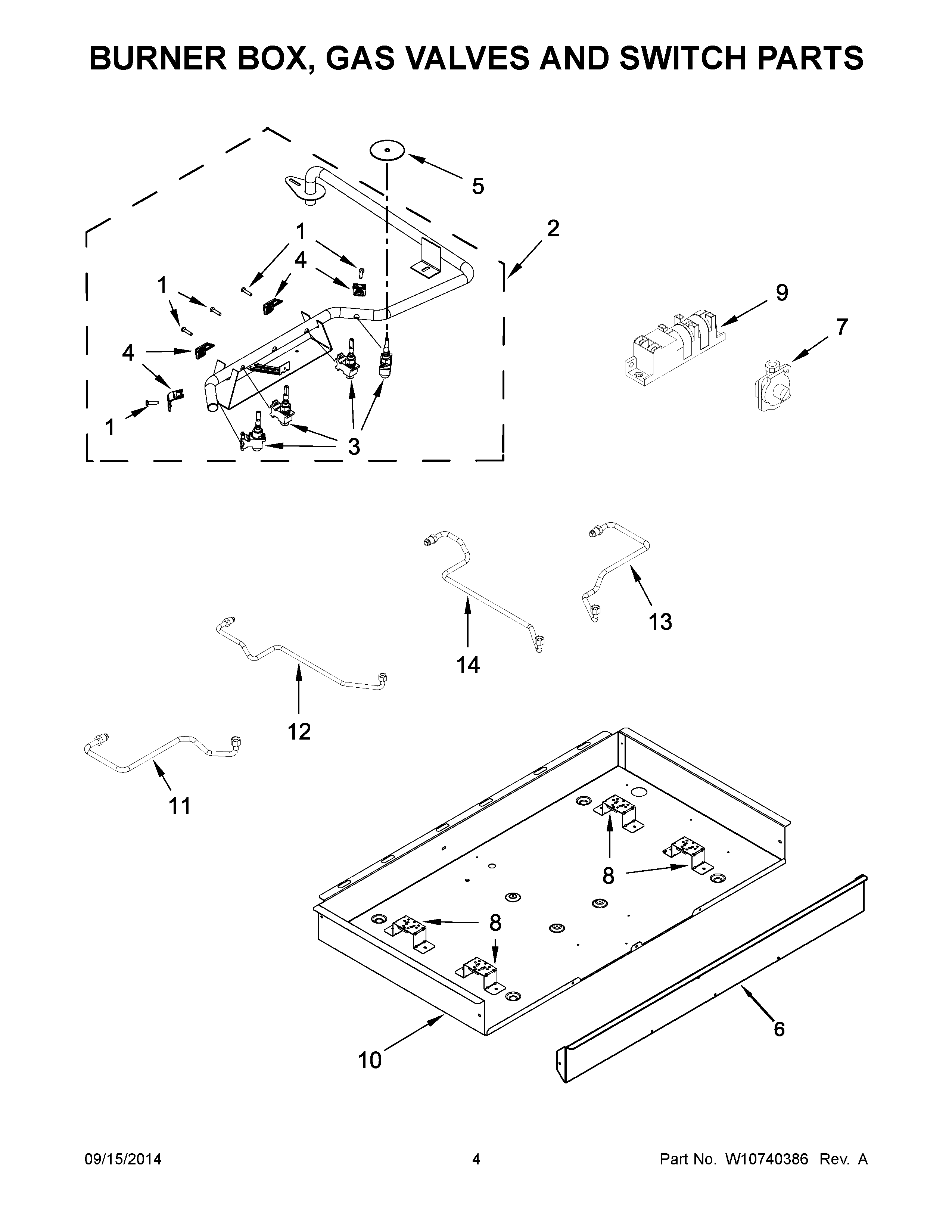

ICS500DS00 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10594440 Whirlpool Range 4-Burner Wetstone Grate Kit
NIW10558556 Whirlpool Wire Harness
NIW10685483 Whirlpool Range Griddle
NIW10698166 Whirlpool Range Control Knob
NIW10676661 Whirlpool Cooktop Spud Orifice
NI16515 Whirlpool Clip
NIW10132200 Whirlpool Strain Relief
NIW10392003 Whirlpool Power Cord
18287057 Whirlpool Oven Screw
2W10594394 Whirlpool Manifold
3W10597157 Whirlpool Gas Valve
3AW11256503 Whirlpool Gas Valve Assembly
3BW10859922 Whirlpool Gas Valve
48287055 Whirlpool Oven Mounting Bracket
5W10140571 Whirlpool Seal Switch
6PANEL, FRONT
7W11087445 Whirlpool Pressure Regulator
8W10594429 Whirlpool Mounting Bracket
9MODULE-SPK
10BOX, BURNER
11W10566287 Whirlpool Gas Tubing
12W10566288 Whirlpool Gas Tubing
13W10566290 Whirlpool Gas Tubing
14W10566289 Whirlpool Gas Tubing
