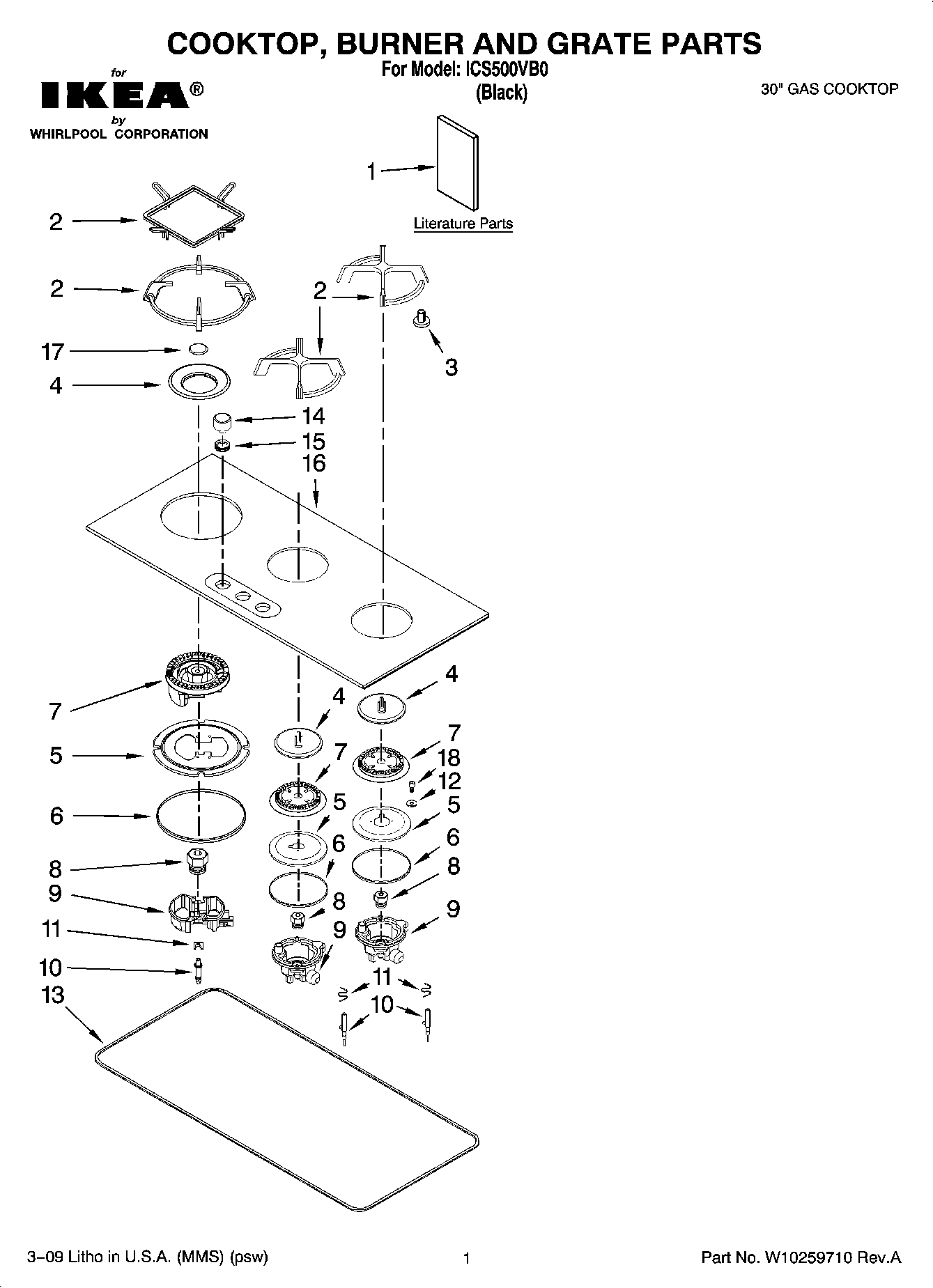

ICS500VB0 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	LP CONV.INSTR.
1	Use & Care Guide
1	Installation Instructions
2	Grate (Left Lower)
2	Grate (Left Upper)
2	Grate (Center/Right)
3	Bumper, Grate
4	Cap, Burner (Right)
4	Cap, Burner (Center)
4	Cap, Burner (Left)
5	Ring (Center)
5	Ring (Left)
5	Ring (Right)
6	Gasket (Center/Right)
6	Gasket (Left)
7	Head, Burner (Left)
7	Head, Burner (Right)
7	Head, Burner (Center)
8	W10236993 Whirlpool Orifice Spud
8	Orifice (Natural)
9	Holder, Orifice (Center)
9	Holder, Orifice (Right)
9	Holder, Orifice (Left)
10	Gasket (Left/Right)
10	Plug, Spark (Center/Right)
11	Spring (Left)
11	Spring (Center/Right)
12	GASKET, TOP PANEL
13	WPW10237005 Whirlpool Cooktop Gasket
14	KNOB
15	Gasket, Knob
16	Cooktop, Glass
17	Cap,Inner
18	SCREW
