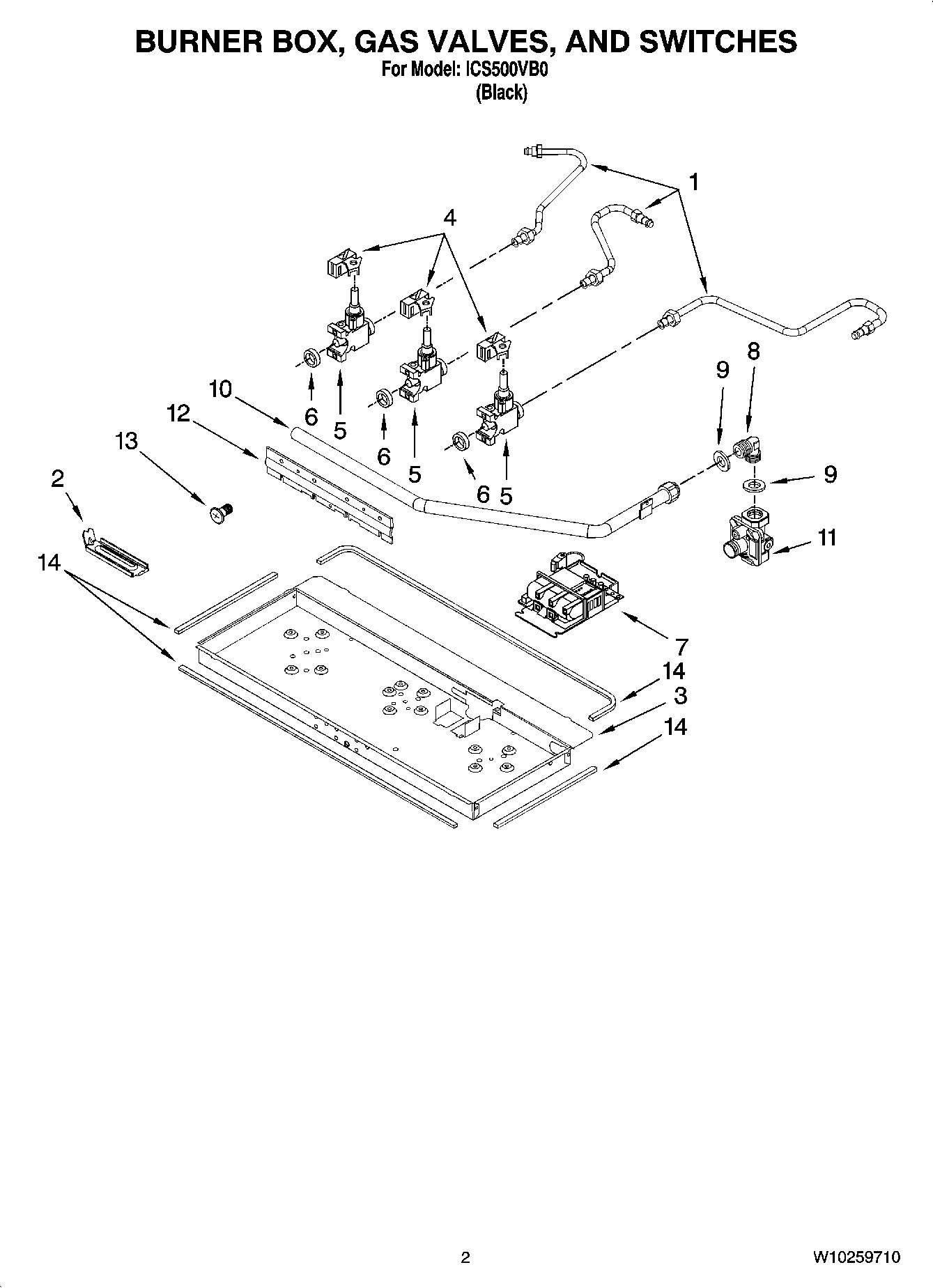

ICS500VB0 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1Tubing (Right)
1Tubing (Left)
1Tubing (Center)
2Bracket, Mtg
3Box, Burner (Not Serviced)
4Ignition,Elec.
5Valve, Gas (Left)
5Valve, Gas (RF)
5VALVE, GAS (LR,RR)
6Ring, Gasket
7Block, Terminal
8Elbow Pipe, Manfld
9Ring, Gasket
10Pipe, Manifold (Not Serviced)
118186962 Whirlpool Oven Regulator
12Bracket, Manifold (Not Serviced)
13Bolt, Gas Valve
14Gasket (Left/Right)
14Gasket (Front/Back)
