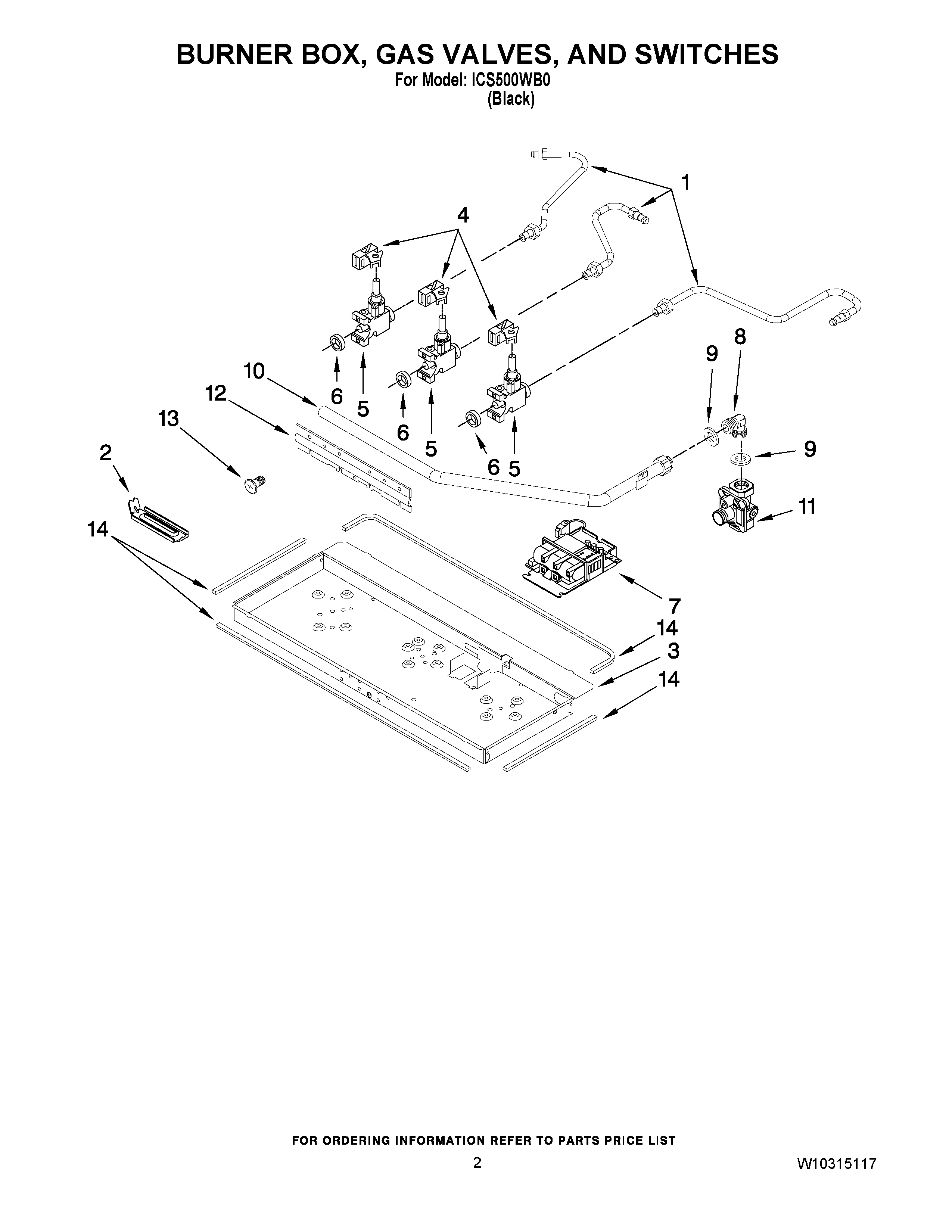

ICS500WB0 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1Tubing (Right)
1Tubing (Left)
1Tubing (Center)
2Bracket, Mtg
4Ignition,Elec.
5Valve, Gas (RF)
5VALVE, GAS (LR,RR)
5Valve, Gas (Left)
6Ring, Gasket
7Block, Terminal
8Elbow Pipe, Manfld
9Ring, Gasket
118186962 Whirlpool Oven Regulator
13CABINET (NOT A SERVICEABLE PART)
14Gasket (Left/Right)
14Gasket (Front/Back)
