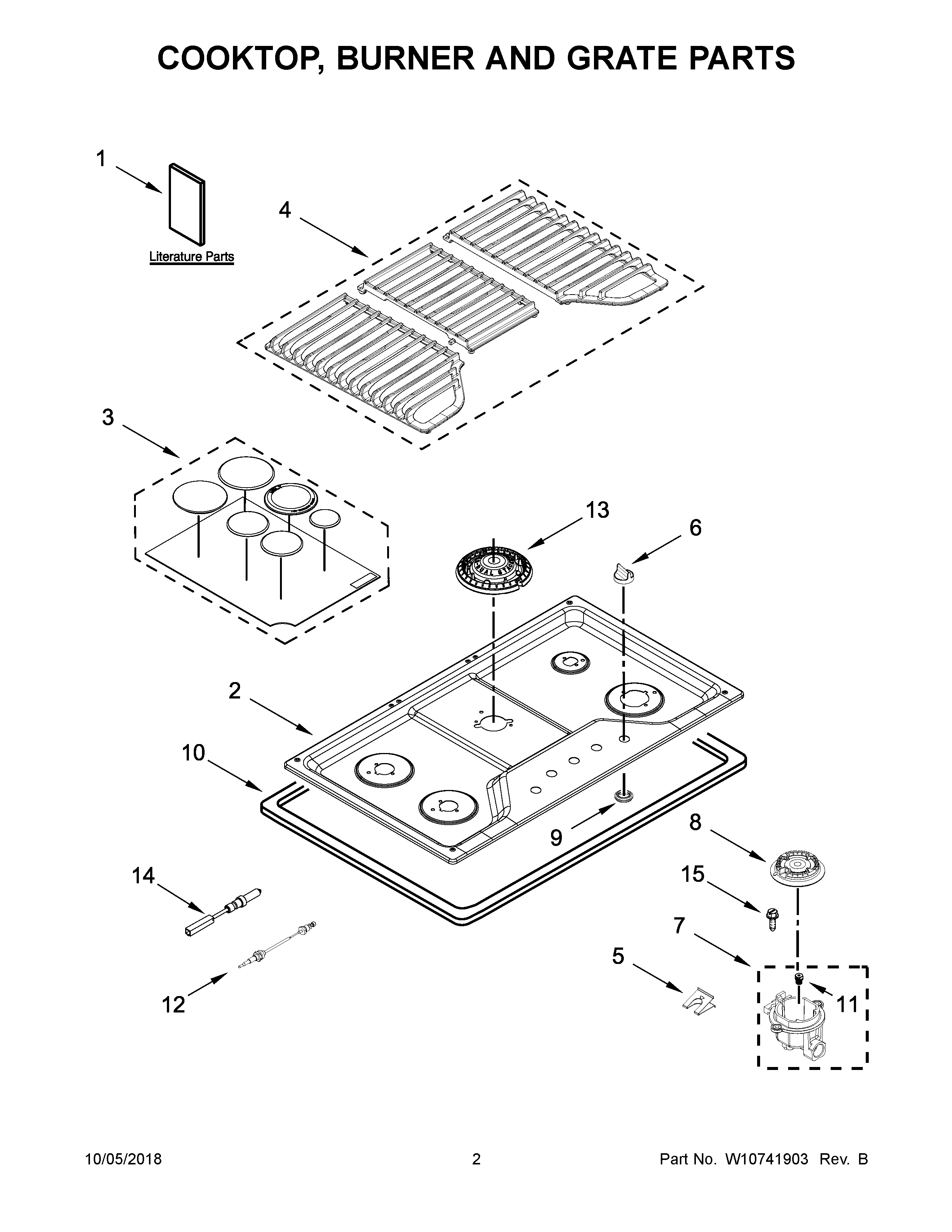

ICS655DS00 02 – COOKTOP, BURNER AND GRATE PARTS

ICS655DS00 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

ICS655DS00 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1BGUIDE, USE AND CARE
1AINSTRUCTIONS, UNDERCOUNTER
1INSTRUCTIONS, INSTALLATION
1CINSTRUCTIONS, LP CONVERSION
2W11314790 Whirlpool Cooktop
3W10695055 Whirlpool Burner Cap
4W11241678 Whirlpool Grate Kit
58286863 Whirlpool Oven Clip
6W11190813 Whirlpool Knob
7AW10613381 Whirlpool Orifice Holder
7CW10611441 Whirlpool Orifice Holder
7W10597166 Whirlpool Orifice Holder
7BW10594399 Whirlpool Orifice Holder
8AWP8286813 Whirlpool Burner Head
8WP8286814 Whirlpool Burner Head
9W11206740 Whirlpool Grommet
109760045 Whirlpool Oven Foam Seal
11BW10791082 Whirlpool Spud Orifice
11AW10791076 Whirlpool Spud Orifice
11CW10791073 Whirlpool Gas Orifice Spud
11W10652710 Whirlpool Orifice Spud
11DW10652706 Whirlpool Spud Orifice
12W11507531 Whirlpool Surface Igniter Assembly
12AW11507532 Whirlpool Surface Igniter
13W10811599 Whirlpool Burner Head
14W10852959 Whirlpool Surface Igniter
15W11676349 Whirlpool Screw
