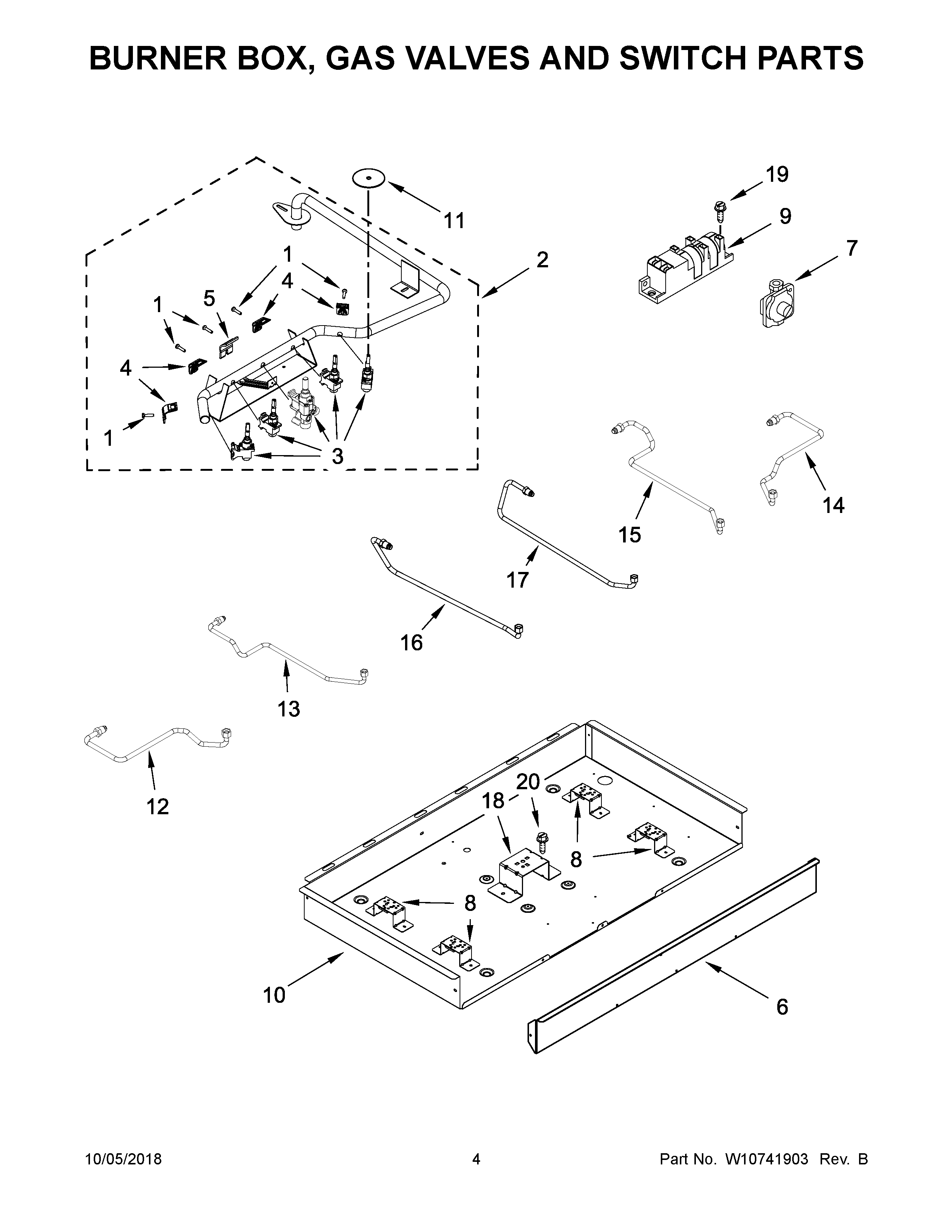

ICS655DS00 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

PositionProduct
NIW11561436 Whirlpool Spark Ignition Switch and Harness
NITAPE, FOAM
NIW10676661 Whirlpool Cooktop Spud Orifice
NI16515 Whirlpool Clip
NIBRACKET, MOUNTING
NIW10392003 Whirlpool Power Cord
NIW10132200 Whirlpool Strain Relief
NICABINET (NOT A SERVICEABLE PART)
NIWP3400015 Whirlpool Screw
18287057 Whirlpool Oven Screw
2W10594395 Whirlpool Manifold Assembly
3W11677628 Whirlpool Microwave Gas Valve
3DW11246817 Whirlpool Burner Valve
3BW10859922 Whirlpool Gas Valve
3AW11256503 Whirlpool Gas Valve Assembly
3CW11712403 Whirlpool Gas Valve
48287055 Whirlpool Oven Mounting Bracket
58287056 Whirlpool Oven Mounting Bracket
6PANEL, FRONT
7W11087445 Whirlpool Pressure Regulator
8W10594429 Whirlpool Mounting Bracket
9WPW10475149 Whirlpool Spark Module
10BOX, BURNER
11W10140571 Whirlpool Seal Switch
12W10566294 Whirlpool Gas Tubing
13W10566295 Whirlpool Gas Turbine
14W10566299 Whirlpool Gas Tubing
15TUBING, GAS BURNER (RIGHT REAR)
16W10566296 Whirlpool Gas Tubing
17W10566297 Whirlpool Gas Tubing
18W10594430 Whirlpool Mounting Bracket
19SCREW
20W10443110 Whirlpool Screw
