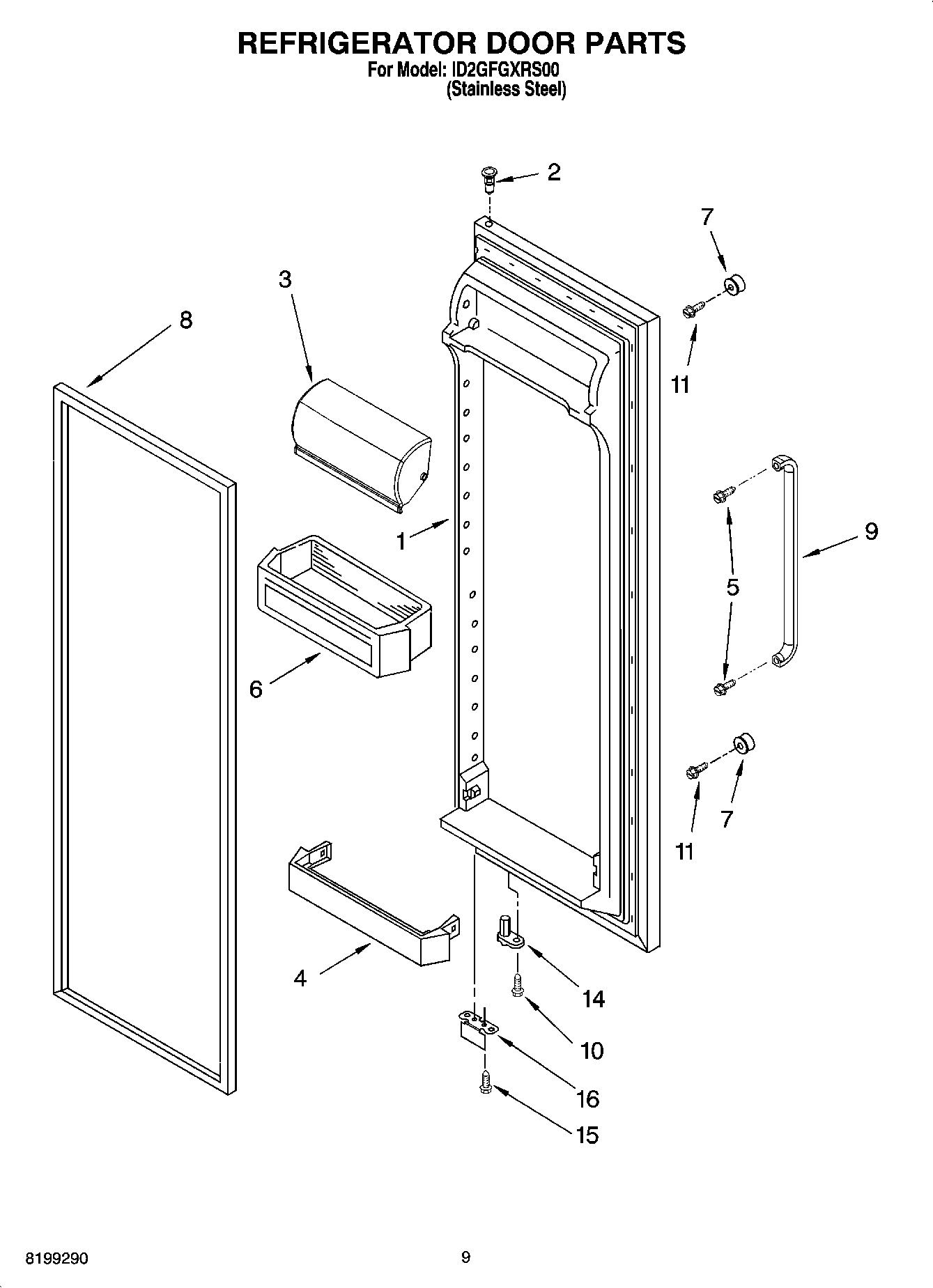

ID2GFGXRS00 07 – REFRIGERATOR DOOR PARTS

ID2GFGXRS00 07 – REFRIGERATOR DOOR PARTS

Written by

in

ID2GFGXRS00 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1L2308121S Whirlpool FIP Door Assembly
2Thimble, Top (For Stainless Steel Models)
3WP2256101 Whirlpool Dairy Door
4WP2156022 Whirlpool Refrigerator Door Trim
5Screw
6WPW10321304 Whirlpool Refrigerator Door Shelf Bin
7WPW10170540 Whirlpool Screw
82159081 Whirlpool Refrigerator Door Gasket
9Handle (Stainless)
10WP3400012 Whirlpool Refrigerator Screw
11WP488163 Whirlpool Refrigerator Screw
14WP2182179 Whirlpool Cam Closer
15WP489483 Whirlpool Screw
16WP2206629B Whirlpool Refrigerator Bracket
