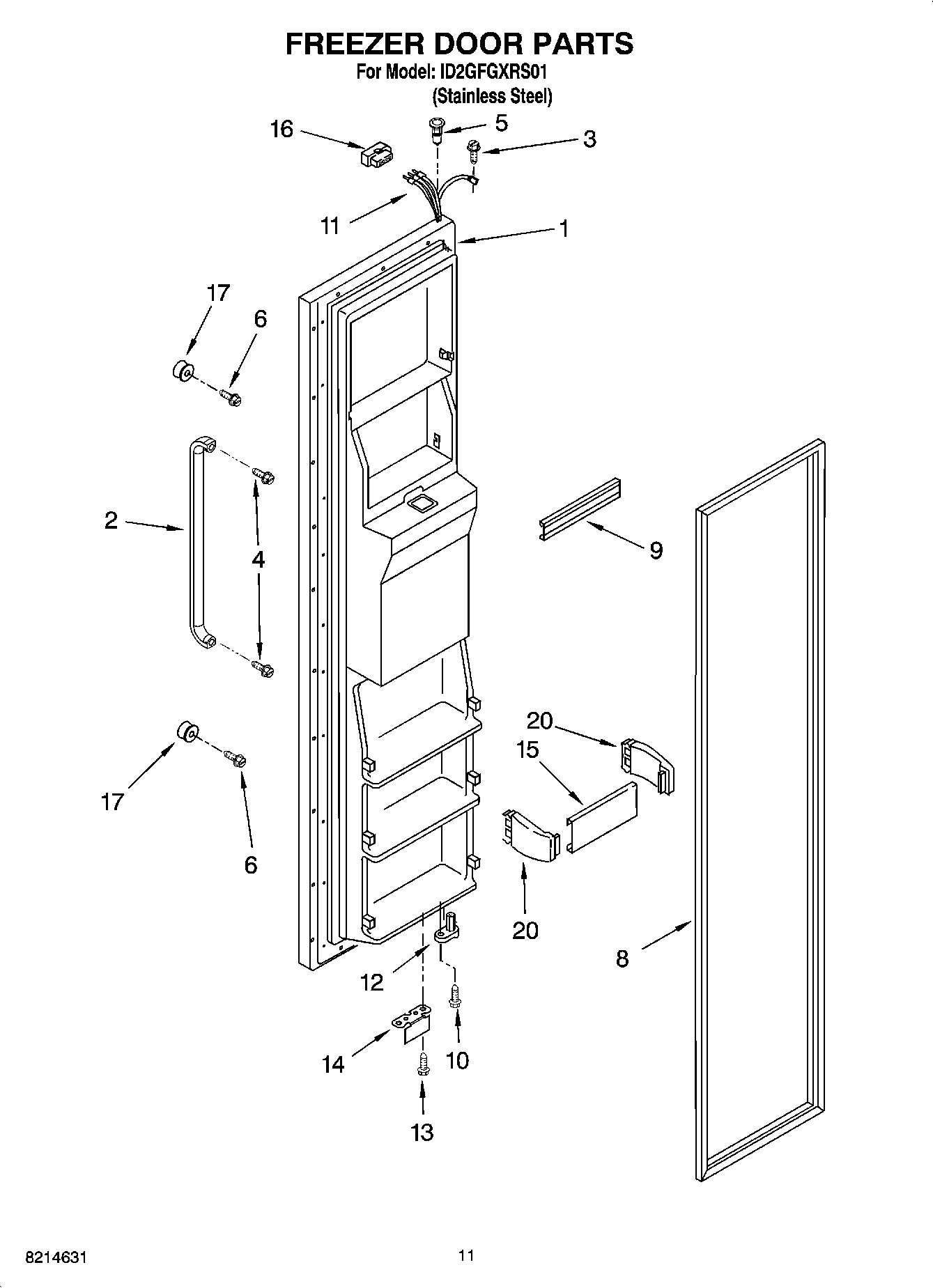

ID2GFGXRS01 08 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless Steel)
2Handle (Stainless)
3WP489128 Whirlpool Refrigerator Screw
4Screw
5Thimble, Top (For Stainless Steel Models)
6WP488163 Whirlpool Refrigerator Screw
82159080 Whirlpool Refrigerator Door Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WP3400012 Whirlpool Refrigerator Screw
112311642 Whirlpool Refrigerator Wire Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14WP2206629B Whirlpool Refrigerator Bracket
15Trim, Door (3)
16WP2154473 Whirlpool Refrigerator Connector
17WPW10170540 Whirlpool Screw
20WP2195917K Whirlpool Refrigerator Endcap
