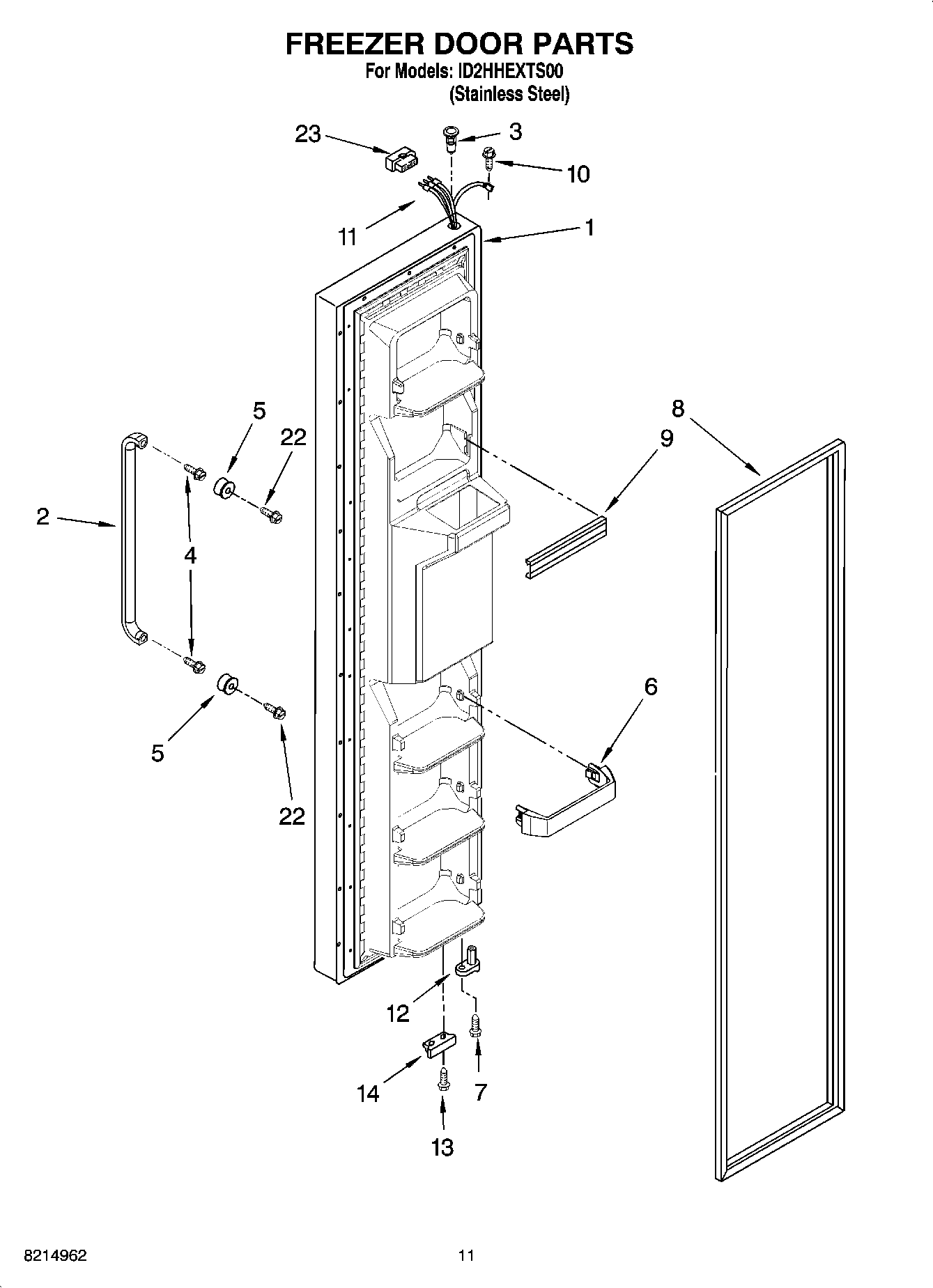

ID2HHEXTS00 07 – FREEZER DOOR PARTS

ID2HHEXTS00 07 – FREEZER DOOR PARTS

Written by

in

ID2HHEXTS00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless Steel)
2Handle (Stainless)
3Thimble, Top (For Stainless Steel Models)
4Screw
5WPW10170540 Whirlpool Screw
6WP2309717 Whirlpool Refrigerator Door Trim
7WP3400012 Whirlpool Refrigerator Screw
82159080 Whirlpool Refrigerator Door Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WP489128 Whirlpool Refrigerator Screw
112311642 Whirlpool Refrigerator Wire Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14WP2206629B Whirlpool Refrigerator Bracket
22WP488163 Whirlpool Refrigerator Screw
23WP2154473 Whirlpool Refrigerator Connector
