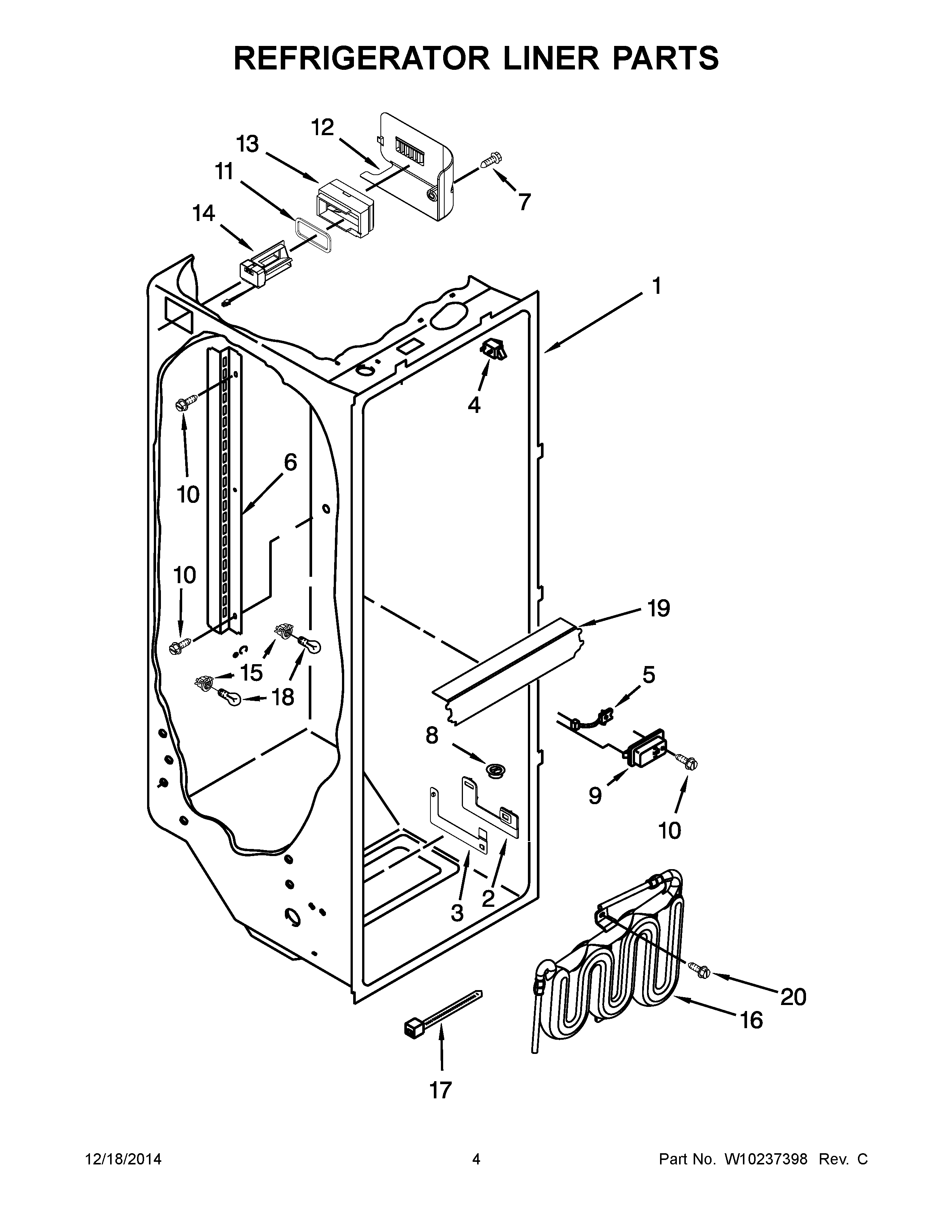

ID3CHEXVQ00 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	2223524 Whirlpool Escutcheon
3	2223339 Whirlpool Slide
4	W11384469 Whirlpool Door Switch
5	WP2188820 Whirlpool Refrigerator Thermistor
6	Shelf Ladder
8	2171846 Whirlpool Refrigerator Release Valve
9	WP2317844 Whirlpool Refrigerator Cover
10	WP489478 Whirlpool Refrigerator Screw
11	Gasket, Air Baffle
12	COVER, AIR DIFFUSER
13	ASSEMBLY, AIR DIFFUSER
14	WP2220377 Whirlpool Refrigerator Air Baffle
15	4387478 Whirlpool Refrigerator Light Socket
16	RESERVOIR
17	WPW10339879 Whirlpool Wire Tie
18	RANGE ONLY 40W 120V APPL BULB
19	LENS, LIGHT
20	Screw, 8-18 x 5/8
