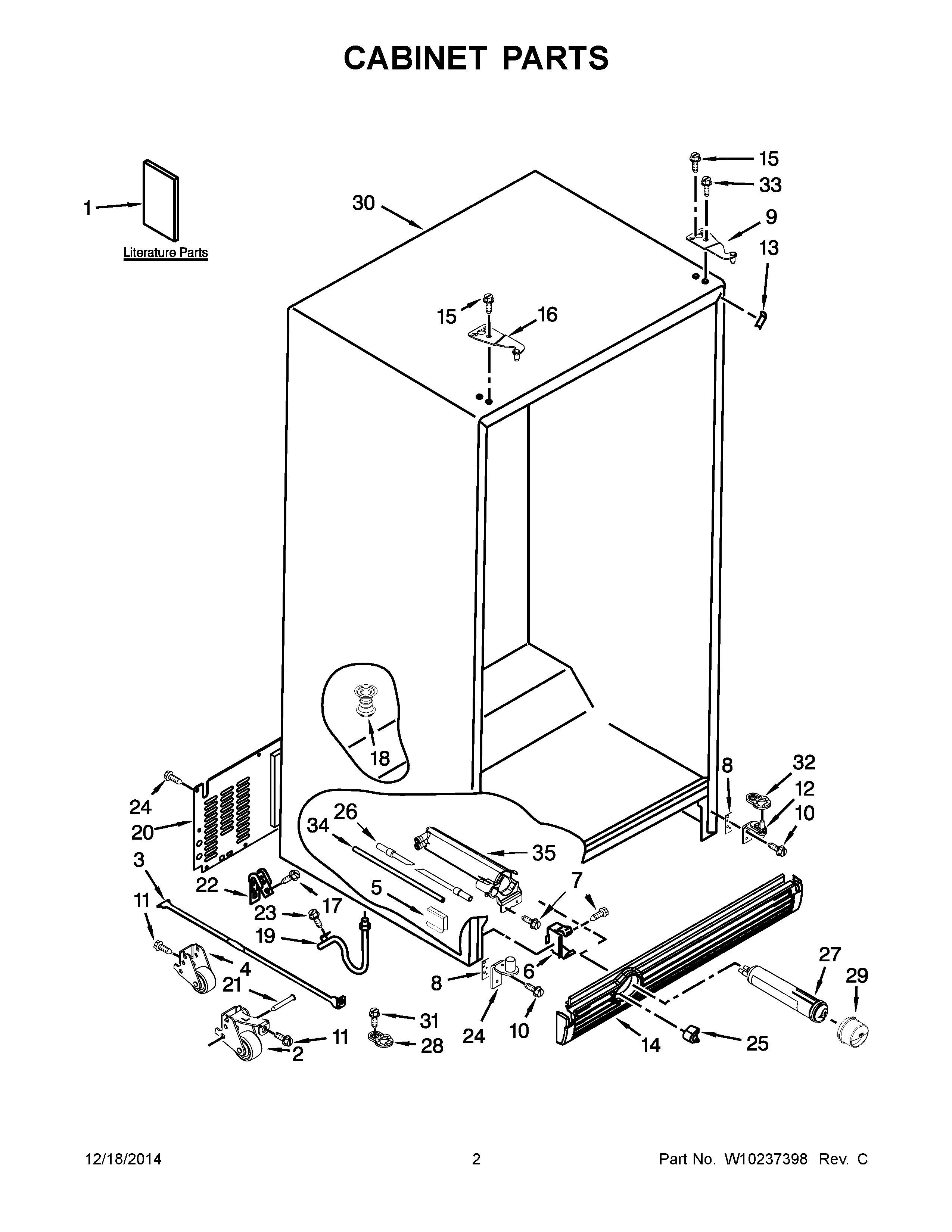

ID3CHEXVS00 02 – CABINET PARTS

ID3CHEXVS00 02 – CABINET PARTS

Written by

in

ID3CHEXVS00 02 – CABINET PARTS

Products

PositionProduct
1USE & CARE GUIDE
1AInstallation Instructions
1BSERVICE AND WIRING SHEET ENERGY GUIDE
1CENERGY GUIDE
1DModular Icemaker Service Sheet
2ASSEMBLY, FRONT ROLLER (LEFT HAND)
2AASSEMBLY, FRONT ROLLER (RIGHT HAND)
3Strap, Roller
4WPW10173132 Whirlpool Refrigerator Cabinet Roller
5W11545866 Whirlpool Refrigerator Clip
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
82223545 Whirlpool Refrigerator Shim
92307008AP Whirlpool Refrigerator Hinge
9A2307008B Whirlpool Refrigerator Butt Hinge
10WP489497 Whirlpool Screw
11W10151272 Whirlpool Refrigerator Screw
12Hinge Assembly, Bottom-RC
13AFiller, Wrapper (Black)
132223893W Whirlpool Refrigerator Filler
14Grille (White)
14AGrille (Black)
153400108 Whirlpool Refrigerator Screw
162307007AP Whirlpool Refrigerator Hinge
16A2307007B Whirlpool Refrigerator Butt Hinge
17WP489464 Whirlpool Refrigerator Screw
18W11566763 Whirlpool Fitting
19Tube, Extension
20Cover, Unit
21PIN, ROLLER
22549193 Whirlpool Refrigerator Power Clamp
24Hinge Assembly, Bottom-FC
252260503W Whirlpool Refrigerator Button
25AWP2260503B Whirlpool Refrigerator Button
268201597 Whirlpool Inlet Water Fill Tube Kit Filter
27FILTER 3-SINGLE TEAL
28Door Closer, FC
29WP2260518W Whirlpool Refrigerator Filter Cap
29AWP2260518B Whirlpool Water Filter Cap
30CABINET (NOT A SERVICEABLE PART)
31WP489483 Whirlpool Screw
32WPL 2307049
33W10853301 Whirlpool Refrigerator Screw
34W11496481 Whirlpool Refrigerator Water Tube
35WPW10121140 Whirlpool Refrigerator Housing
