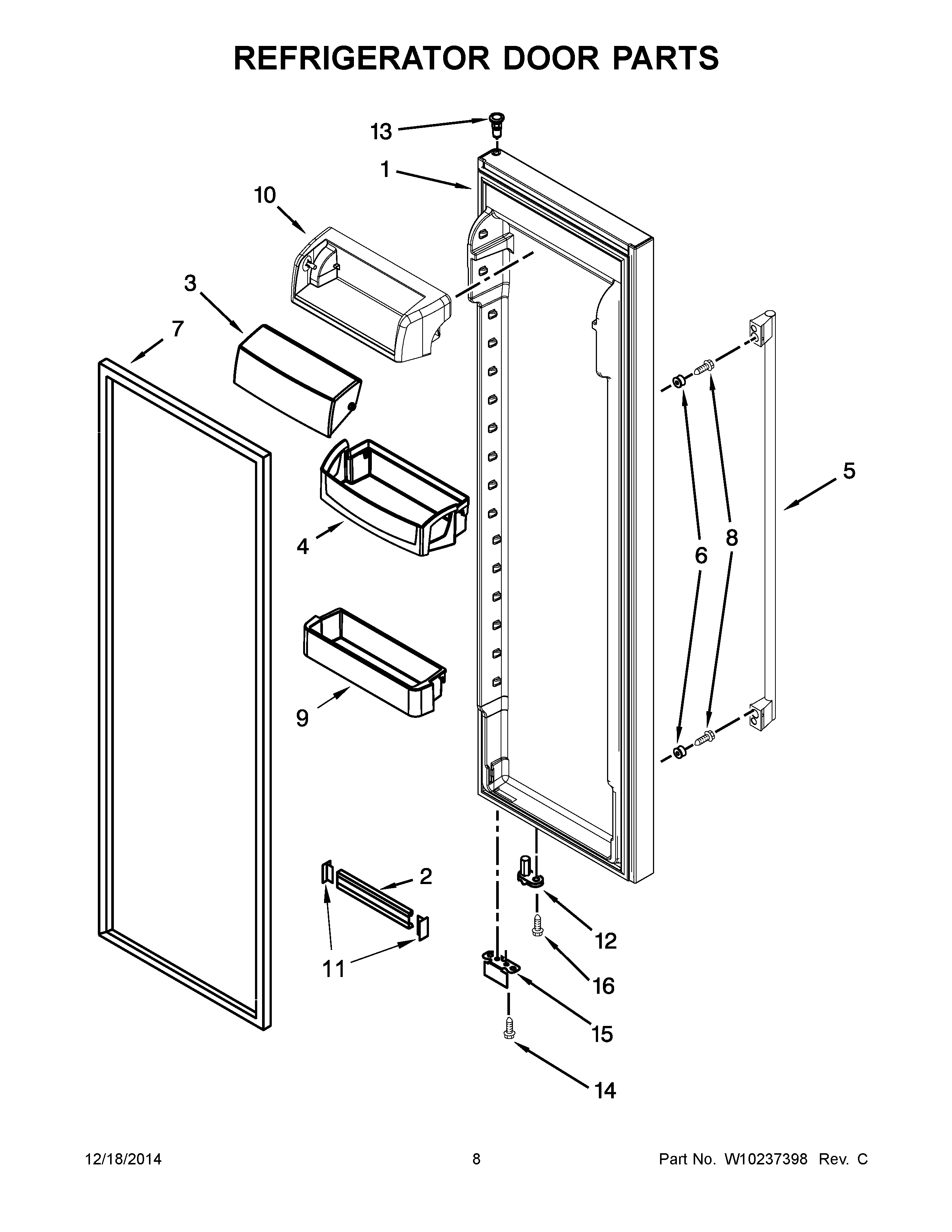

ID3CHEXVS00 05 – REFRIGERATOR DOOR PARTS

ID3CHEXVS00 05 – REFRIGERATOR DOOR PARTS

Written by

in

ID3CHEXVS00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES No.7) (WHITE)
1AREFRIGERATOR DOOR (INCLUDES No.7) (STAINLESS)
2Trim, Shelf
3Dairy Door
4WPW10321304 Whirlpool Refrigerator Door Shelf Bin
5WPW10202821 Whirlpool Refrigerator Handle
6WPW10170540 Whirlpool Screw
7GASKET, DOOR (MIST BEIGE)
7AGASKET, DOOR (BLACK)
8WP488163 Whirlpool Refrigerator Screw
9WP2224173 Whirlpool Refrigerator Cantilever Bin
10WP2223879 Whirlpool Refrigerator Compressor Door
11WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
12CLOSER, DOOR
13WP2182181 Whirlpool Refrigerator Thimble
14WP489483 Whirlpool Screw
152306940 Whirlpool Refrigerator Bracket
15A2306940B Whirlpool Refrigerator Bracket
16WP3400012 Whirlpool Refrigerator Screw
