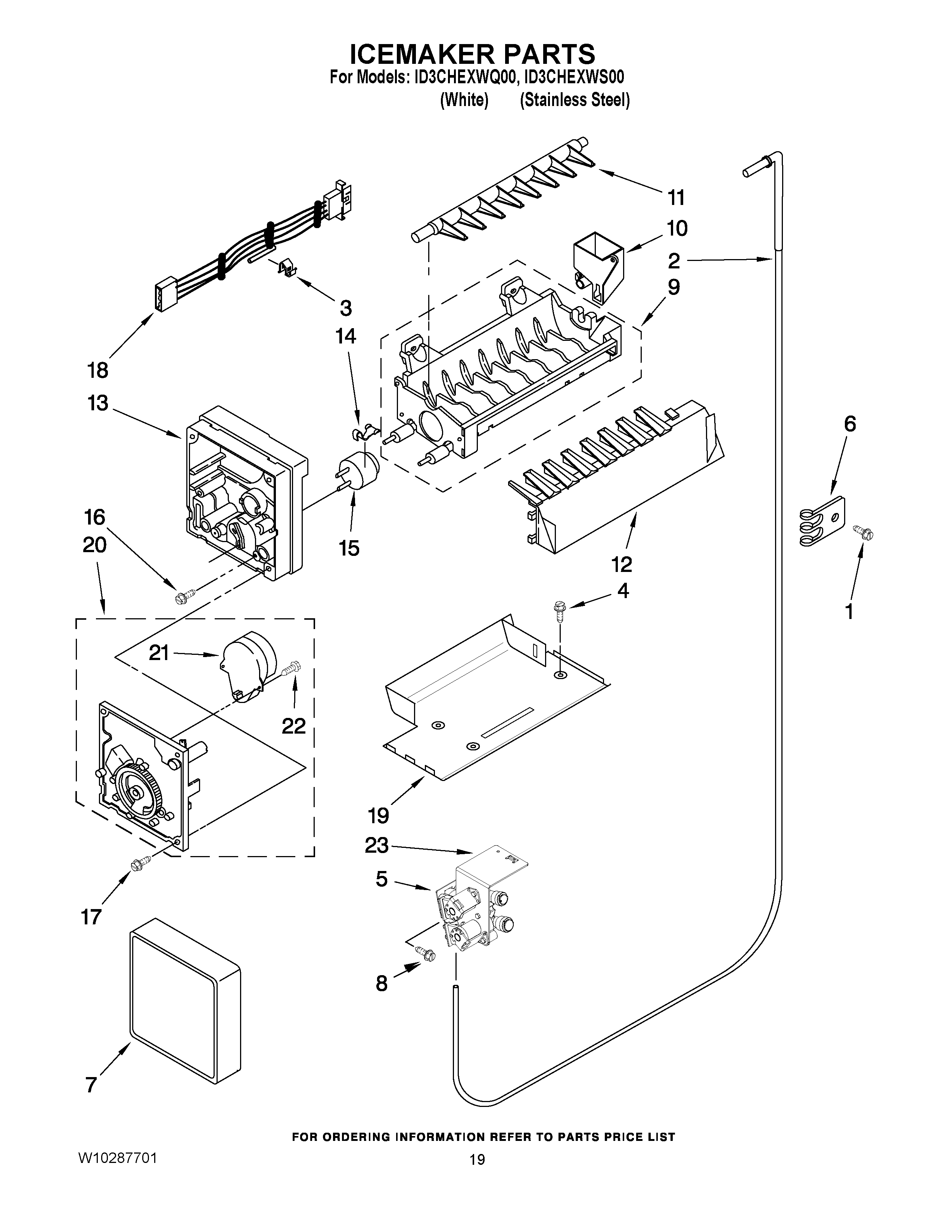

ID3CHEXWQ00 12 – ICEMAKER PARTSadmin2025-04-26T12:32:40+00:00ID3CHEXWQ00 12 – ICEMAKER PARTS ProductsPositionProduct2UNION3WP628379 Whirlpool Refrigerator Clip4WP489478 Whirlpool Refrigerator Screw5WPW10210603 Whirlpool Refrigerator Inlet Valve6WP488366 Whirlpool Refrigerator Clamp7WPW10289690 Whirlpool Ice Maker Cover8WPW10141625 Whirlpool Refrigerator Screw Assembly9WPW10190929 Whirlpool Refrigerator Ice Maker Mold10WPW10272168 Whirlpool Refrigerator Water Fill Cup11WP627843 Whirlpool Refrigerator Ejector Arm12W10297244 Whirlpool Refrigerator Arm Strip13WP2195914 Whirlpool Refrigerator Ice Maker Housing14WP2315522 Whirlpool Refrigerator Clip15WP627985 Whirlpool Icemaker Cycling Thermostat168533917 Whirlpool Refrigerator Screw17WP681249 Whirlpool Screw Assembly18WP2187467 Whirlpool Refrigerator Wire Harness19BRACKET, ICEMAKER MOUNTING218201515 Whirlpool Refrigerator Motor and Gear Module Kit22489136 Whirlpool Refrigerator Screw23SHIELD, VALVE ASSY1002198597 Whirlpool Refrigerator Ice Maker
