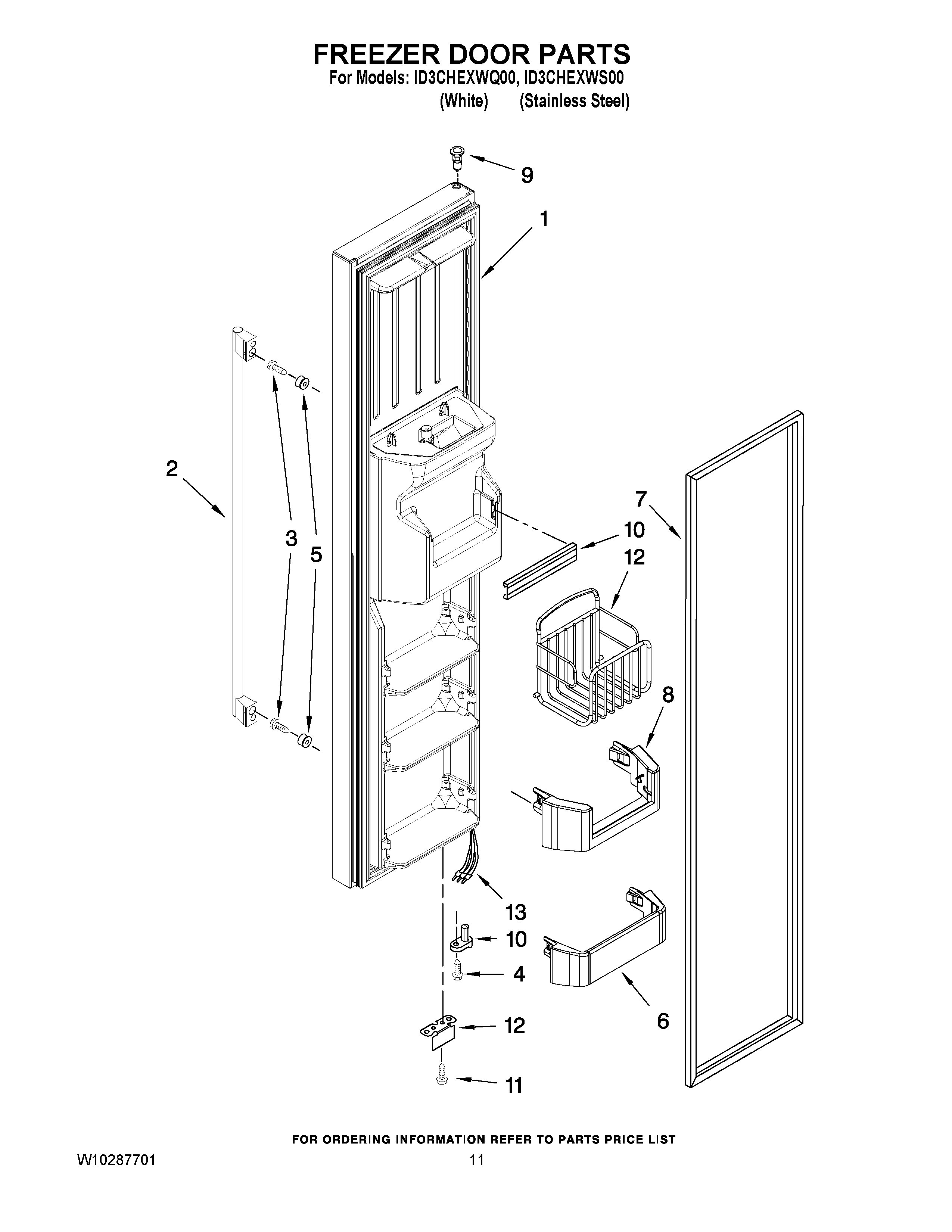

ID3CHEXWS00 07 – FREEZER DOOR PARTS

ID3CHEXWS00 07 – FREEZER DOOR PARTS

Written by

in

ID3CHEXWS00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1DOOR, FREEZER (STAINLESS)
1DOOR, FREEZER (WHITE)
2WPW10202821 Whirlpool Refrigerator Handle
3WP488163 Whirlpool Refrigerator Screw
4WP3400012 Whirlpool Refrigerator Screw
5WPW10170540 Whirlpool Screw
6WP2171157 Whirlpool Shelf Trim
7GASKET, DOOR (MIST BEIGE)
7GASKET, DOOR (BLACK)
8WPW10307490 Whirlpool Door Trim Assembly
9WP2182181 Whirlpool Refrigerator Thimble
10W10132977 Whirlpool Refrigerator Door Cam
11WP489483 Whirlpool Screw
12W10215323 Whirlpool Bracket
12BRACKET, DOOR STOP (SILVER)
13Wire Assy, Door
