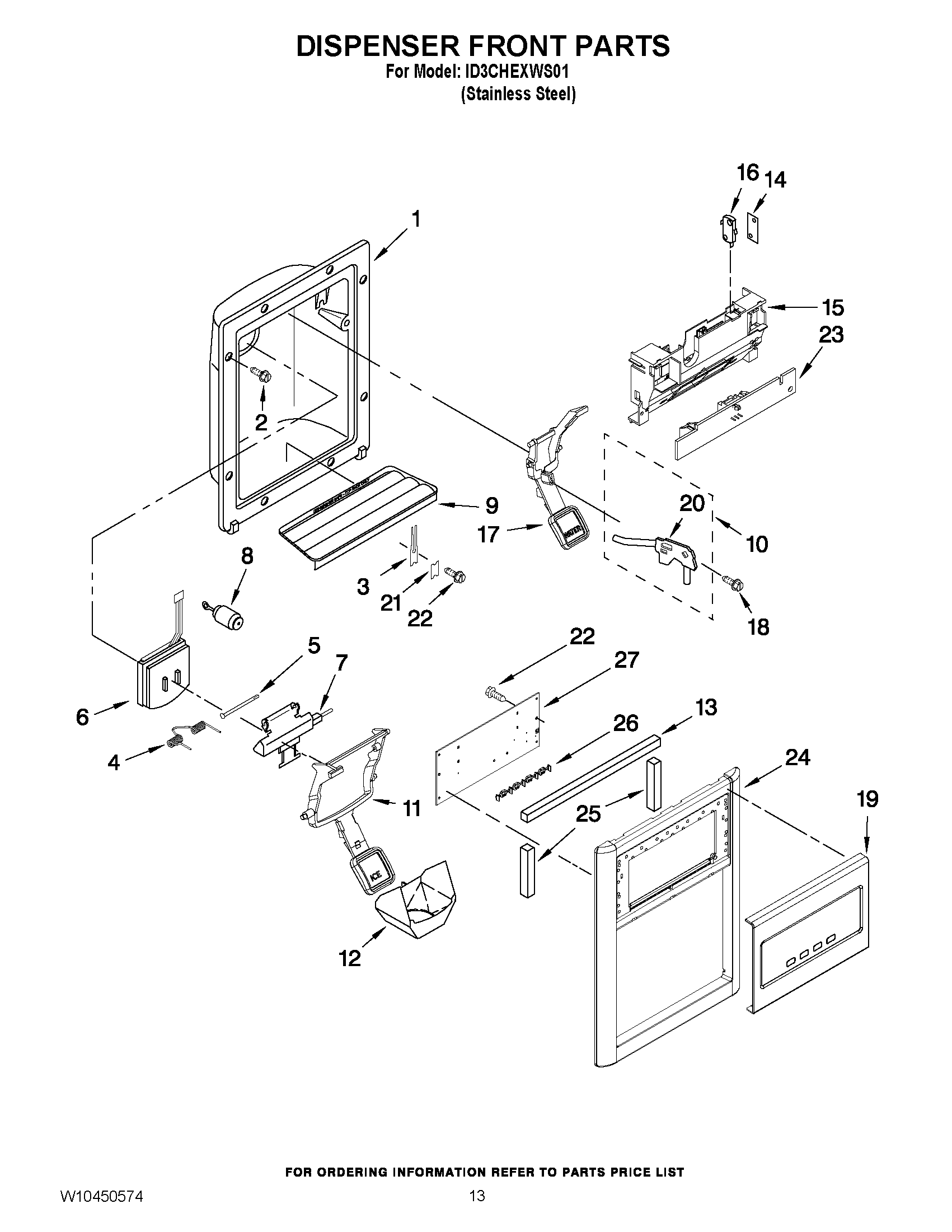

ID3CHEXWS01 08 – DISPENSER FRONT PARTSadmin2025-04-26T12:32:55+00:00ID3CHEXWS01 08 – DISPENSER FRONT PARTS ProductsPositionProduct1CABINET (NOT A SERVICEABLE PART)2WP3196557 Whirlpool Screw3WP2194719 Whirlpool Refrigerator Clip4WPW10224328 Whirlpool Refrigerator Spring5WP2196195 Whirlpool Refrigerator Door Pin6WP2180353 Whirlpool Dispenser Door7Door Mechanism Assembly8Delay Mechanism9WP2206670B Whirlpool Dispenser Tray108201537 Whirlpool Water Tubing Assembly11WPW10152854 Whirlpool Refrigerator Dispenser Arm12WP2180224 Whirlpool Dispenser Funnel Guide132305571 Whirlpool Gasket Assembly14Spacer, Switch (2)15W10728484 Whirlpool Refrigerator Dispenser Control Bracket16WP2162361 Whirlpool Switch17WPW10152859 Whirlpool Refrigerator Dispenser Arm18WP3400906 Whirlpool Refrigerator Screw19Bezel, Disp (Black)20WP2304673 Whirlpool Refrigerator Bracket21WP2195051 Whirlpool Refrigerator Clip22WP3400065 Whirlpool Refrigerator Screw23LED Assy24FASCIA ASSEMBLY, DISPENSER (BLACK)25Gasket, Disp (2)26Support, Window27WPW10175973-includeCORE Whirlpool WPW10175973 Refrigerator Electronic Control Board + Core
