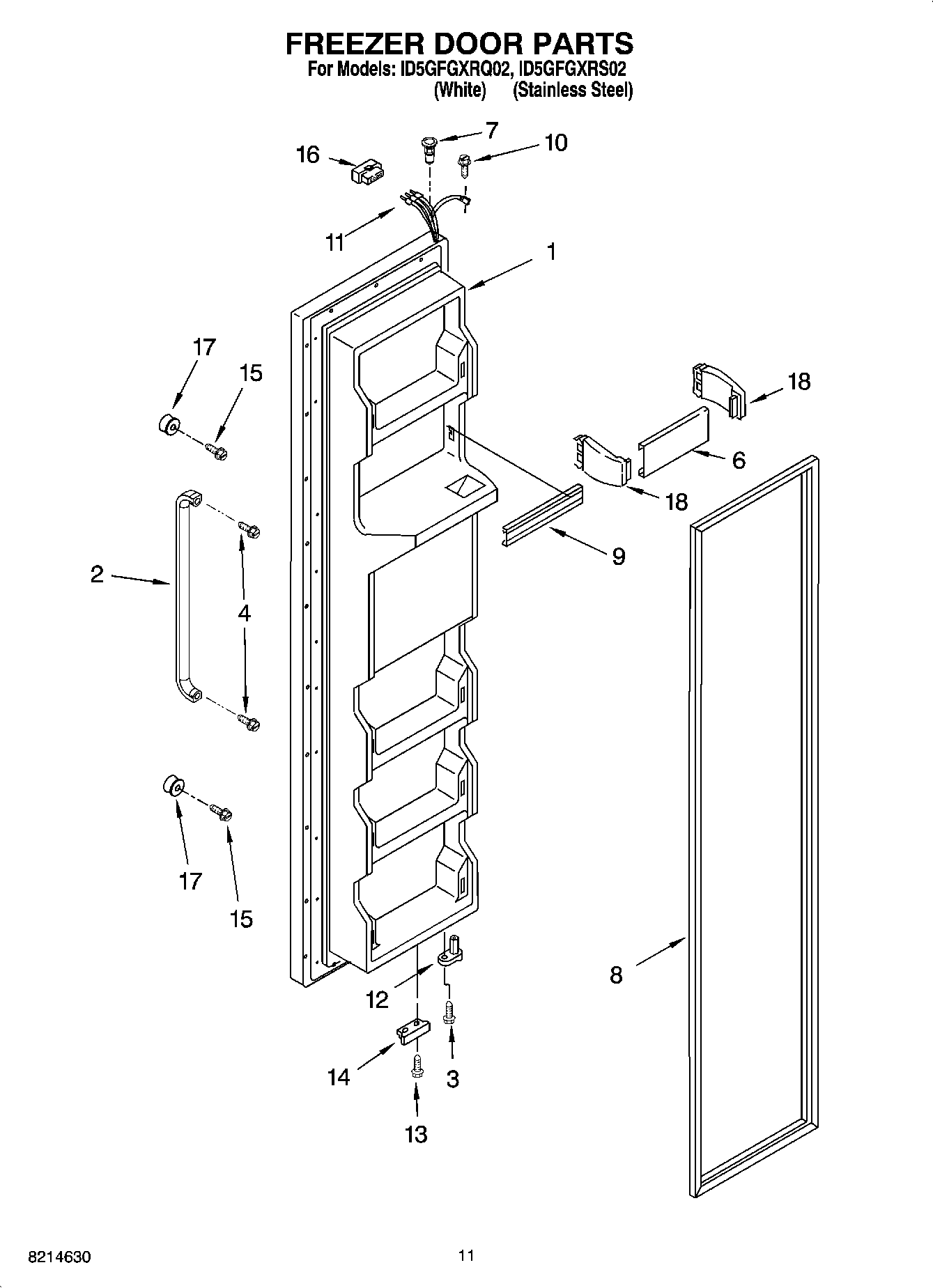

ID5GFGXRS02 07 – FREEZER DOOR PARTS

ID5GFGXRS02 07 – FREEZER DOOR PARTS

Written by

in

ID5GFGXRS02 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless Steel)
2Handle (Stainless)
2Handle (White)
3WP3400012 Whirlpool Refrigerator Screw
4Screw
62313199 Whirlpool Refrigerator Door Trim
7WP2182181 Whirlpool Refrigerator Thimble
82159074 Whirlpool Door Gasket Seal
82159082 Whirlpool Freezer Door Gasket Black
9WPW10307490 Whirlpool Door Trim Assembly
10WP489128 Whirlpool Refrigerator Screw
112311641 Whirlpool Refrigerator Wire Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14WP2206629B Whirlpool Refrigerator Bracket
15WP488163 Whirlpool Refrigerator Screw
16WP2154473 Whirlpool Refrigerator Connector
17WPW10170540 Whirlpool Screw
18WP2195917K Whirlpool Refrigerator Endcap
